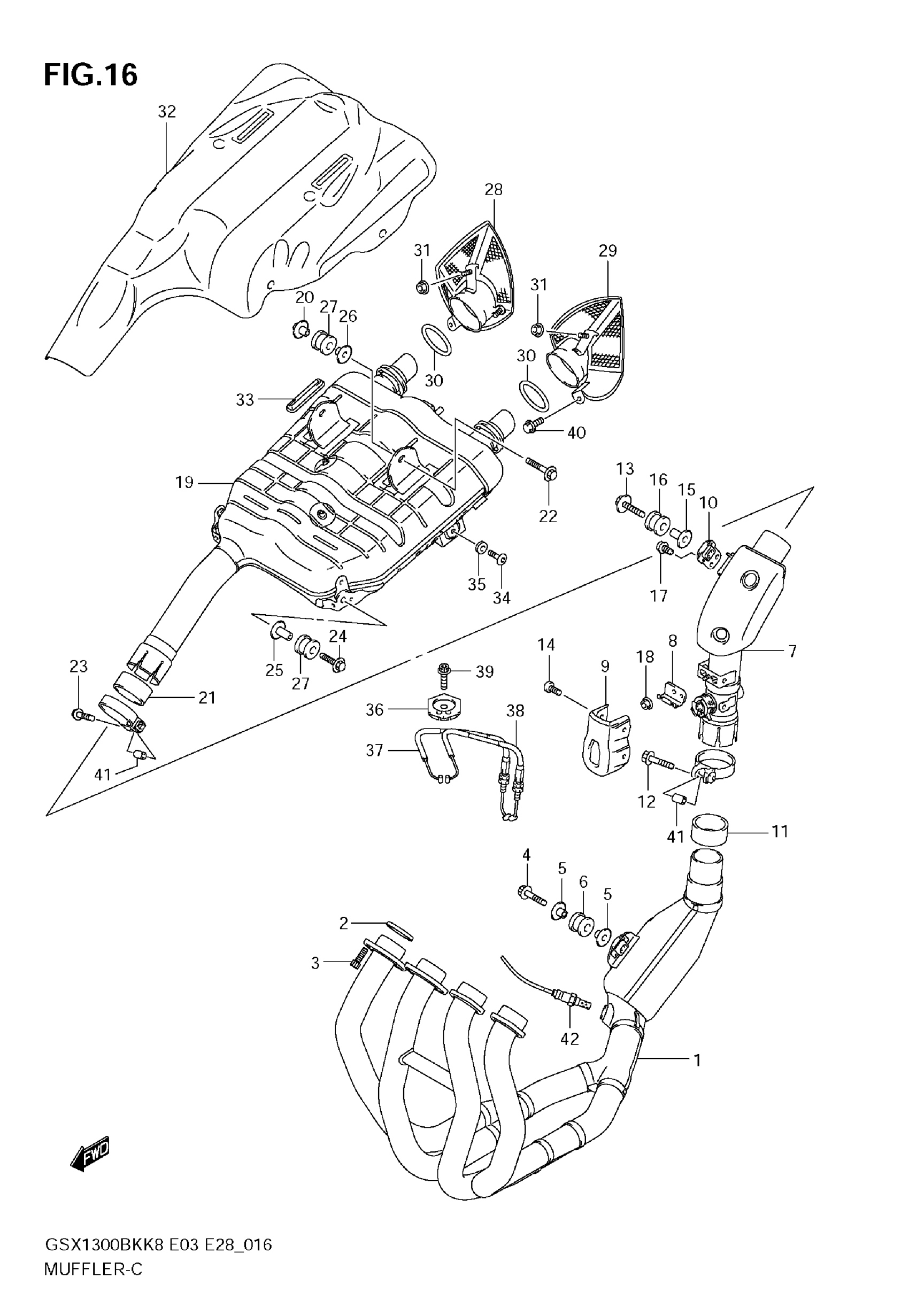

Suzuki GSX1300BK (2009) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-23H00

Unavailable

2

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

3

BOLT (8X25) This part replaces 09106-08104.

09106-08165

$4.03

4

BOLT

09106-08162

$4.77

5

SPACER

09180-08220

Unavailable

6

CUSHION

09320-12048

$5.11

7

JOINT

14200-23H00

Unavailable

8

BRACKET, EXHAUST VALVE

14250-23H00

Unavailable

9

COVER, EXHAUST VALVE

14280-23H00

Unavailable

10

BRACKET, JOINT

14770-23H00

Unavailable

11

CONNECTOR, JOINT

14771-24F10

$30.70

12

BOLT (8X40)

09103-08392

$3.62

13

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

14

SCREW (6X10)

09139-06078

$2.79

15

SPACER

09180-08152

$5.83

16

CUSHION

09320-12048

$5.11

17

BOLT

07120-0612A

$2.50

18

NUT

09159-06094

Unavailable

19

BODY, MUFFLER

14310-23H00-H01

Unavailable

20

NUT

14414-23H00

Unavailable

21

CONNECTOR, MUFFLER

14771-24F10

$30.70

22

BOLT (8X45)

09103-08358

$3.42

23

BOLT (8X40)

09103-08392

$3.62

24

BOLT (8X40) This part replaces 09118-08068.

09118-08145

$6.47

25

SPACER

09180-08152

$5.83

26

SPACER

09180-08220

Unavailable

27

CUSHION

09320-12048

$5.11

28

PLATE, MUFFLER RR RH

14790-23H00

Unavailable

29

PLATE, MUFFLER RR LH

14890-23H00

Unavailable

30

O-RING

09280-48011

Unavailable

31

NUT

08316-1006A

$2.19

32

GUARD, MUFFLER HEAT

14731-23H00

Unavailable

33

CUSHION

14795-23H00

Unavailable

34

SCREW (6X12)

09139-06128

$5.67

35

CUSHION (8.4X18X6)

09320-08066

$8.24

36

PULLEY, CONTROLLER This part replaces 11269-18G00.

11269-18G01

$28.78

37

CABLE, EXHAUST VALVE NO.1

11276-23H00

Unavailable

38

CABLE, EXHAUST VALVE NO.2

11277-23H00

Unavailable

39

BOLT

07120-0516A

$2.28

40

BOLT

01550-0610A

$1.97

41

SPACER

14458-06H00

$7.05

42

SENSOR,OXYGEN This part replaces 18213-23H00.

18213-23H01

$395.90
