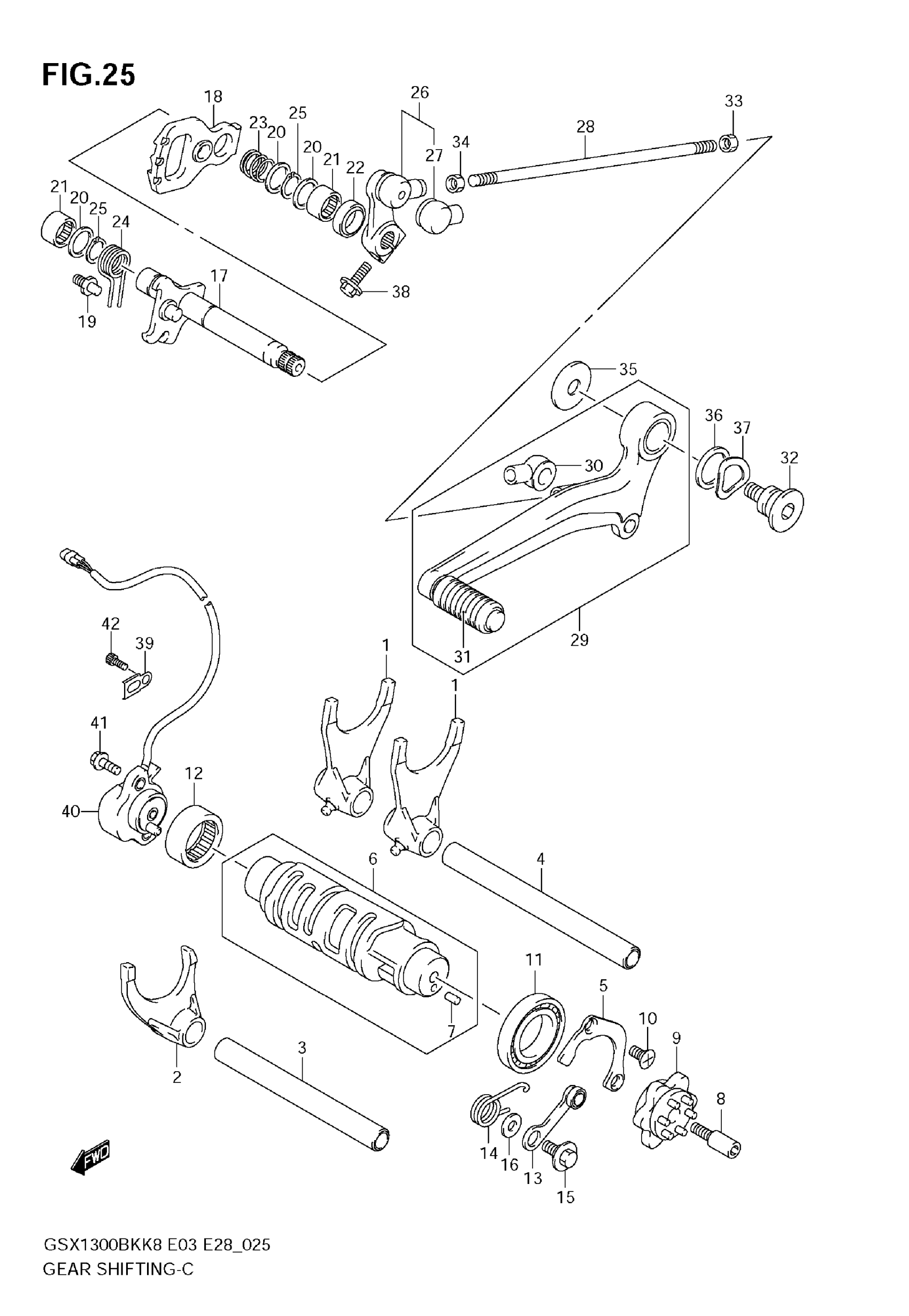

Suzuki GSX1300BK (2009) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-24F20

$132.86

2

FORK,GEAR SHIFT NO.3

25231-24F20

$134.17

3

SHAFT, GEAR SHIFT NO.2

25411-24F00

$29.10

4

SHAFT, GEAR SHIFT NO.1

25411-38B01

$28.93

5

RETAINER,SHIFT CAM BEARING

24741-24F10

$10.32

6

CAM, GEAR SHIFT | Includes Item(s) 7

25310-24F00

$244.02

7

PIN (4X13.8)

04221-04089

$1.49

8

STOPPER, SHIFT CAM DRIVE PLATE

25312-42F01

$7.95

9

PLATE, GEAR SHIFT CAM

25381-13E00

$56.02

10

SCREW, SHIFT CAM BEARING | 6X12

09126-06011

$2.03

11

BEARING, GEAR SHIFT CAM | 25X47X8

09262-25006

$25.54

12

BEARING, GEAR SHIFT, CAM, R | 25X32X12

09263-25018

$21.39

13

STOPPER, SHIFT CAM

25350-24F00

$34.15

14

SPRING, SHIFT CAM STOPPER

25355-24F00

$7.16

15

BOLT, SHIFT CAM STOPPER | 6X14.3

09111-06041

$2.61

16

WASHER, CAM STOPPER THRUST

08211-06141

$1.59

17

SHAFT,GEAR SHIF This part replaces 25510-15H00.

25510-15H01

$87.01

18

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$24.37

19

STOPPER, GEAR SHIFT ARM

25671-01011

$4.48

20

WASHER, GEAR SHIFT SHAFT, R | 14X22X1.0

09181-14167

$2.53

21

BEARING, GEAR SHIFT SHAFT | 14X20X12

09263-14027

$13.52

22

SEAL, GEAR SHIFT SHAFT OIL | 14X22X6

09283-14006

$6.70

23

SPRING, GEAR SHIFT PLATE

09440-17009

$1.71

24

SPRING, SHIFT SHAFT RETURN

09444-20001

$5.24

25

CIRCLIP, GEAR SHIFT SHAFT

08331-3114A

$1.91

26

ARM,GEAR SHIFT | Includes Item(s) 27 This part replaces 25520-17G10.

25520-17G11

$61.93

27

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

28

ROD, GEAR SHIFT LINK (L:200)

25525-23H00

Unavailable

29

LEVER ASSY,GEAR | Includes Item(s) 30 - 31 This part replaces 25600-23H00.

25600-23H02

$287.68

30

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

31

RUBBER, GEAR SHIFT PEDAL

25652-20C00

$5.44

32

BOLT,GEAR SHIFT LEVER

25617-18H00

$30.70

33

NUT, GEAR SHIFT LINK ROD

09140-06020

$2.02

34

NUT, GEAR SHIFT LINK ROD, L

09140-06025

$2.05

35

WASHER (10X30X2.5) | 10X30X2.5

09160-10144

$5.28

36

WASHER (18X26X1) | 18X26X1.0

09160-18037

$2.97

37

WASHER, GEAR SHIFT LEVER WAVE

09164-18009

$2.38

38

BOLT, GEAR SHIFT LINK ARM

01500-0620A

$1.78

39

CLAMP, GR POSN SNSR LEAD

31497-45000

$1.92

40

SENSOR ASSY,GEA This part replaces 37730-15H00.

37730-15H02

$75.04

41

BOLT, GR POSN SNSR

07120-0516A

$2.28

42

BOLT, CLAMP

07130-0510B

$2.62
