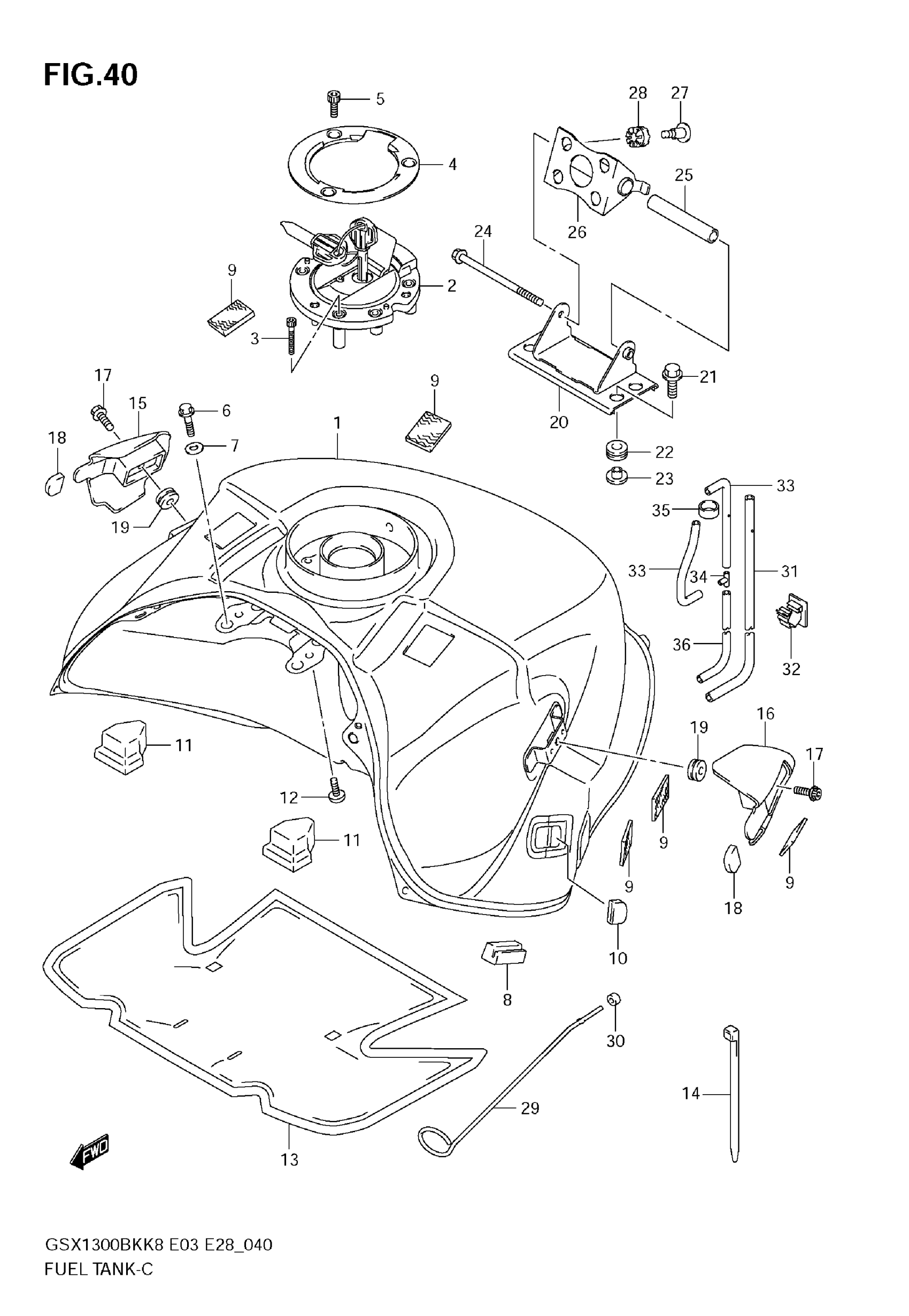

Suzuki GSX1300BK (2009) FUEL TANK Diagram

TANK ASSY, FUEL (BLACK) | E3,E28 FOR CRU

44100-23H00-019

Unavailable

TANK ASSY, FUEL (GRAY) | E3,E28 FOR ETT

44100-23H00-YHF

Unavailable

TANK ASSY, FUEL (WHITE) | FOR YPA

44100-23H00-YPA

Unavailable

TANK ASSY, FUEL (BLACK) | E33 FOR CRU

44100-23H20-019

Unavailable

TANK ASSY, FUEL (GRAY) | E33 FOR ETT

44100-23H20-YHF

Unavailable

TANK ASSY, FUEL (WHITE) | E33 FOR YPA

44100-23H20-YPA

Unavailable

CAP SET, FUEL TANK | E3,E28

44200-23840

Unavailable

CAP SET, FUEL TANK | E33

44200-23850

Unavailable

BOLT, CAP

07130-0530B

Unavailable

COVER, FUEL TANK CAP

44211-23H00

$106.45

BOLT, COVER

09106-05026

$3.54

BOLT, FRONT

01550-0630B

$2.85

WASHER

09160-06136

$1.84

CUSHION,FUEL TA This part replaces 44541-23H00.

44541-23H01

$15.52

FASTENER

44572-13G00

$11.07

GUIDE

44178-23H00

$11.47

CUSHION, REAR

44542-23H00

Unavailable

BOLT

09139-06172

$3.04

SHIELD, HEAT

44192-23H00

Unavailable

CLAMP

09403-14311

$5.33

BRACKET, TANK COVER RH

44179-23H00

$28.62

BRACKET, TANK COVER LH

44189-23H00

$25.65

BOLT

09139-06172

$3.04

CUSHION, BRACKET

44183-23H00

$12.97

CUSHION, SIDE COVER

09329-18001

$1.91

BRACKET, TANK NO.2

44550-23H00

Unavailable

BOLT

09116-06192

$2.30

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

WASHER

09169-06062

$2.50

BOLT, JOINT

07120-0695B

$4.32

SPACER, JOINT

44561-18G00

$16.96

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$40.55

SCREW (6X22) This part replaces 09139-06132.

09139-06191

$4.03

CUSHION

09320-08071

$3.25

STAY

44560-23H00

$44.95

CUSHION, STAY

09320-05007

$2.53

HOSE, WATER DRAIN

44423-23H00

Unavailable

CLIP

09403-14311

$5.33

HOSE,VACUUM This part replaces 44424-38G00.

44425-09E01

$11.28

.JOINT,3 WAY

09367-06002

$2.50

HOSE, JOINT (L:600!10)

09352-13162-600

$24.87

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06
