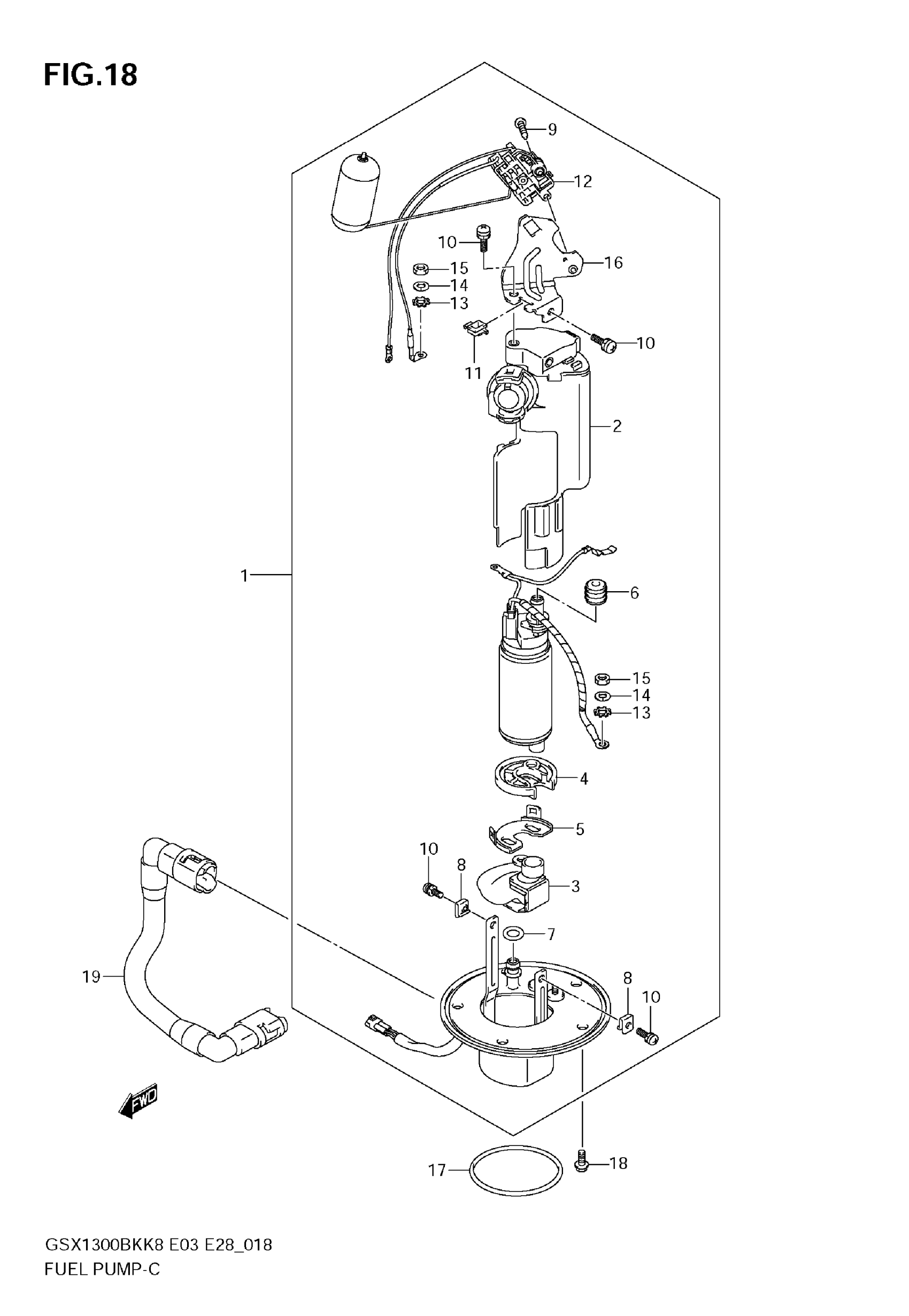

Suzuki GSX1300BK (2009) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 16

15100-23H00

$1,218.92

2

FILTER ASSY, FUEL

15410-41G00

$426.48

3

STRAINER, FUEL PUMP

15420-44G00

$85.79

4

CUSHION, FUEL PUMP

15111-35F00

$9.25

5

HOLDER, FUEL PUMP

15112-42F00

$19.13

6

BUSH, FUEL PUMP

15114-35F00

$15.23

7

O RING

15113-35F00

$8.91

8

NUT

15115-35F00

$10.34

9

SCREW

15116-06G10

$7.20

10

SCREW

15116-35F10

$6.31

11

SADDLE, EDGE

15119-23H00

Unavailable

12

GAUGE ASSY, FUEL LEVEL

34810-23H00

Unavailable

13

WASHER

15171-35F00

$7.20

14

SPRING WASHER

15172-35F00

$7.20

15

NUT

15173-35F00

Unavailable

16

BRACKET, FUEL GAUGE

15181-23H00

Unavailable

17

O-RING

15201-35F00

$27.60

18

BOLT

07120-0612A

$2.50

19

HOSE,FUEL This part replaces 15810-23H00.

15810-23H01

$61.18
