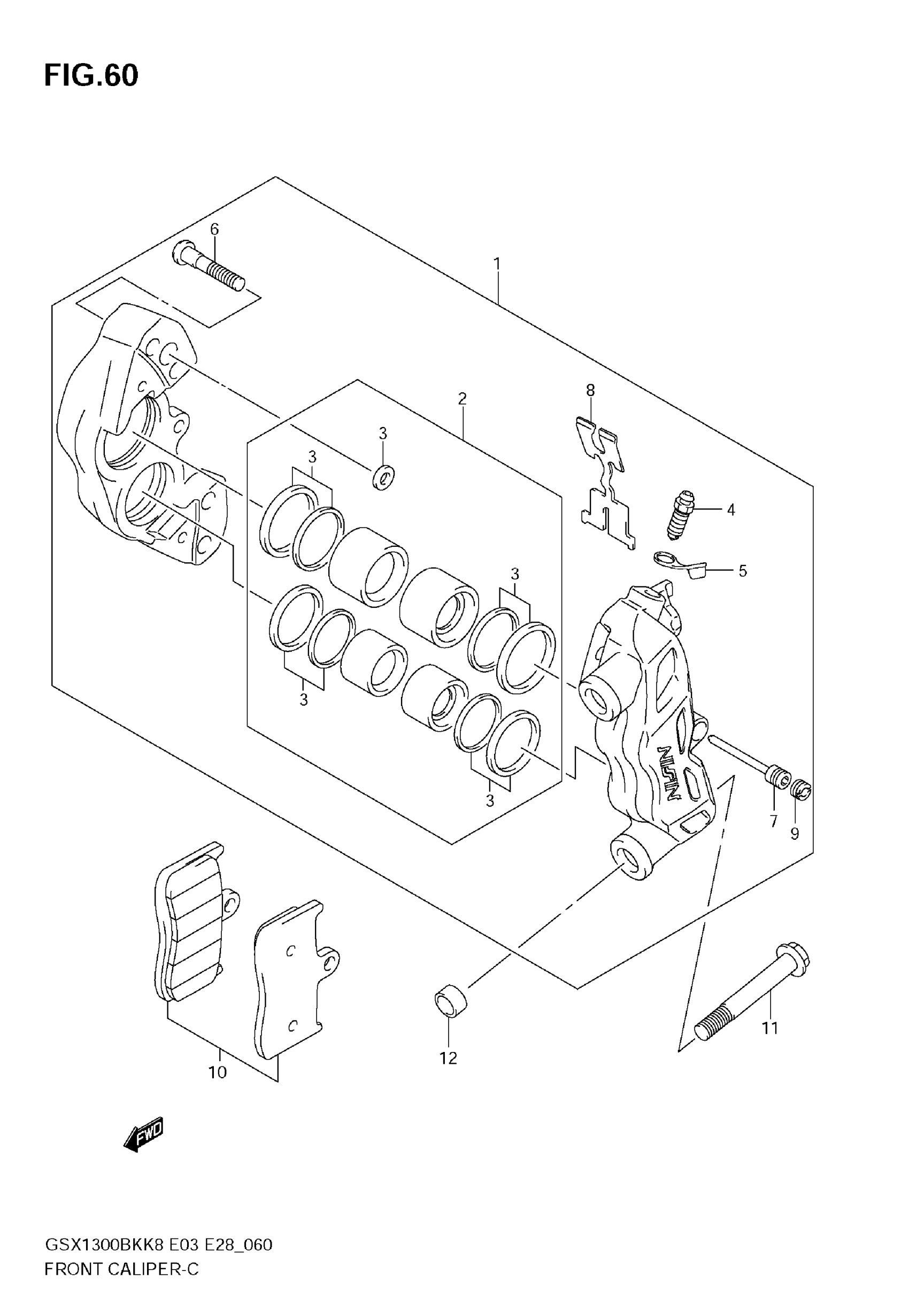

Find the part on the Front Caliper diagram for your 2009 Suzuki GSX1300BK, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX1300BK Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT, R (BLACK) | FOR ETT,YPA

59100-23H00-999

1
Out of stock

1

CALIPER ASSY, FRONT, L (BLACK) | FOR ETT,YPA

59300-23H00-999

1
Out of stock

1

CALIPER ASSY, FRONT, R (SILVER) | FOR CRU

59100-23H10-999

1
Out of stock

1

CALIPER ASSY, FRONT, L (SILVER) | FOR CRU; Includes Item(s) 2 - 9

59300-23H10-999

1
Out of stock

2

PISTON SET

59100-23820

2
Out of stock

3

SEAL SET, PISTON

59100-23810

2
Out of stock

4

BLEEDER

59121-01A00

2
Out of stock

5

CAP, BLEEDER

59122-01A00

2
Out of stock

6

BOLT

59145-23H00

8
Out of stock

7

PLUG, PIN

59146-21E10

2

$6.13

In stock

8

SPRING, PAD

59151-23H00

2
Out of stock

9

PIN, HANGER

59345-00B20

2

$14.56

In stock

10

PAD SET | GSX1300BK

59100-23830

2
Out of stock

10

PAD SET | GSX1300BKA

59100-23840

2
Out of stock

11

BOLT

09103-10392

4
Out of stock

12

PIN, CALIPER

59151-41G00

4

$11.94

In stock
