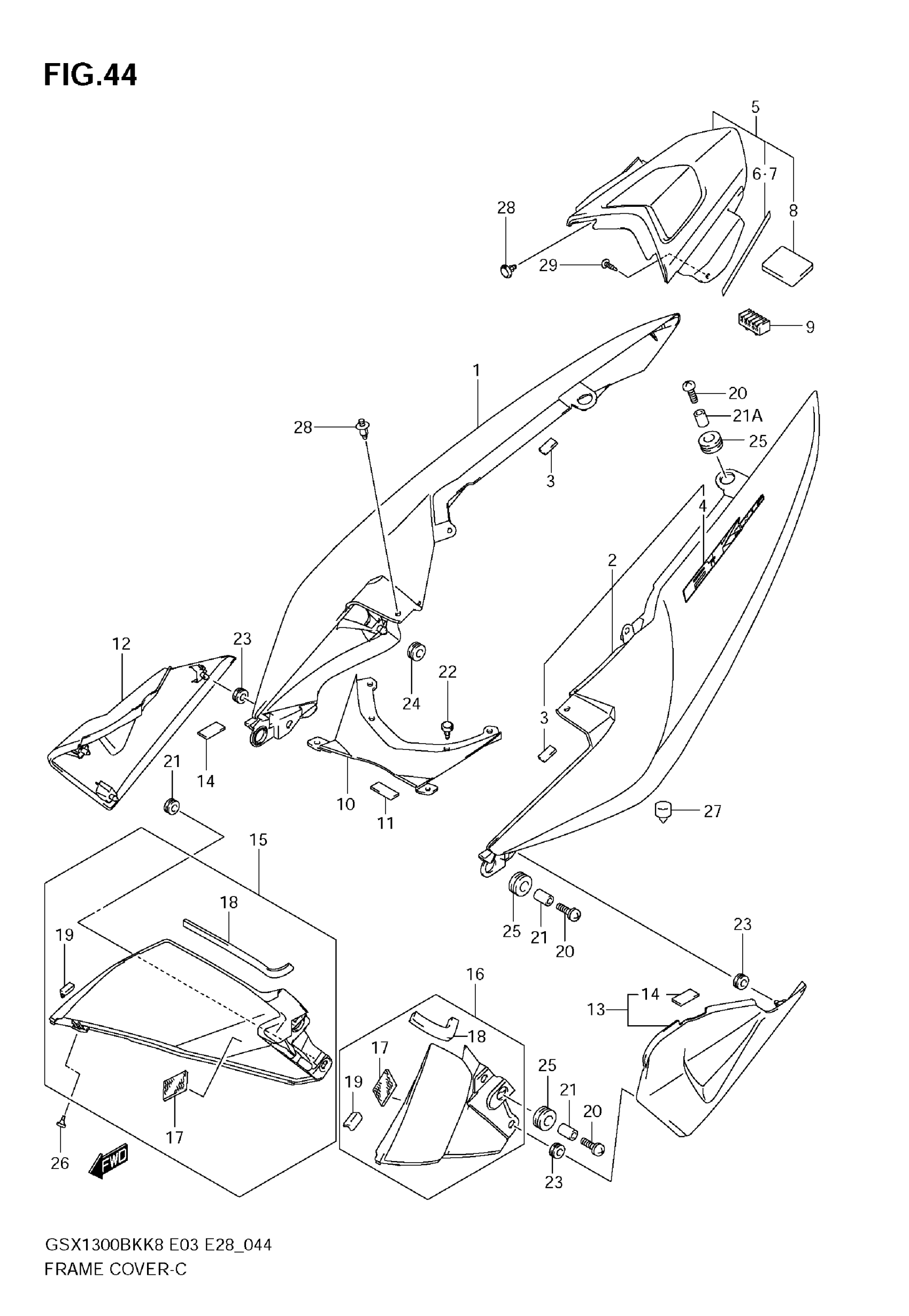

Suzuki GSX1300BK (2009) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | FOR CRU

47110-23H00-019

$300.72

1

COVER, FRAME RH (GRAY) | FOR ETT

47110-23H00-YHF

Unavailable

1

COVER, FRAME RH (WHITE) | FOR YPA

47110-23H10-YPA

Unavailable

2

COVER, FRAME LH (BLACK) | FOR CRU

47210-23H00-019

Unavailable

2

COVER, FRAME LH (GRAY) | FOR ETT

47210-23H00-YHF

Unavailable

2

COVER, FRAME LH (WHITE) | FOR YPA; Includes Item(s) 3 - 4

47210-23H10-YPA

Unavailable

3

CUSHION

45516-01H00

$5.32

4

EMBLEM, FRAME COVER | FOR 019,YHF

68131-23H00-FGC

$8.45

4

EMBLEM, FRAME COVER | FOR YPA

68131-23H10-GYE

Unavailable

5

COVER, FRAME CENTER (BLACK) | FOR CRU

47310-23H00-YKV

$187.72

5

COVER, FRAME CENTER (SILVER) | FOR ETT

47310-23H00-YMD

Unavailable

5

COVER, FRAME CENTER (WHITE) | FOR YPA; Includes Item(s) 6 - 8

47310-23H00-YPA

Unavailable

6

TAPE, CENTER COVER RH

47312-23H00

Unavailable

7

TAPE, CENTER COVER LH

47313-23H00

Unavailable

8

CUSHION

47314-23H00

Unavailable

9

CUSHION, CENTER

45149-31300

$3.56

10

LID, FRAME COVER (BLACK) | FOR CRU

47321-23H00-019

Unavailable

10

LID, FRAME COVER (GRAY) | FOR ETT

47321-23H00-YHF

Unavailable

10

LID, FRAME COVER (WHITE) | FOR YPA

47321-23H00-YPA

Unavailable

11

CUSHION

45516-01H00

$5.32

12

COVER, FRAME SIDE RH (BLACK)

47410-23H00-YKV

Unavailable

13

COVER, FRAME SIDE LH (BLACK) | Includes Item(s) 14

47420-23H00-YKV

Unavailable

14

CUSHION

45516-01H00

$5.32

15

COVER, SIDE FRONT RH (BLACK)

47610-23H00-YKV

Unavailable

16

COVER, SIDE FRONT LH (BLACK) | Includes Item(s) 17 - 19

47710-23H00-YKV

Unavailable

17

FASTENER, FRAME SIDE

44572-13G00

$11.07

18

CUSHION,FR SIDE COVER

47612-23H00

Unavailable

19

MOLDING, FRAME COVER

47613-23H00

Unavailable

20

SCREW, FRAME COVER FRONT

09136-06081

$2.26

21

SPACER, FRAME COVER

09180-06300

$3.85

21A

SCREW, REAR

02142-0620B

$1.80

22

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

23

CUSHION, FRAME COVER

09320-06504

$4.96

24

CUSHION, FRAME COVER

09320-08018

$3.04

25

CUSHION, FRAME COVER

09320-12068

$3.55

26

CUSHION, FRONT SIDE COVER

09321-06026

$2.92

27

CUSHION, FRAME COVER LOWER

09321-10011

$2.91

28

CLIP, FRAME COVER

09409-06328

$3.23

29

SCREW, FRAME COVER CENTER

03241-0516A

$1.49
