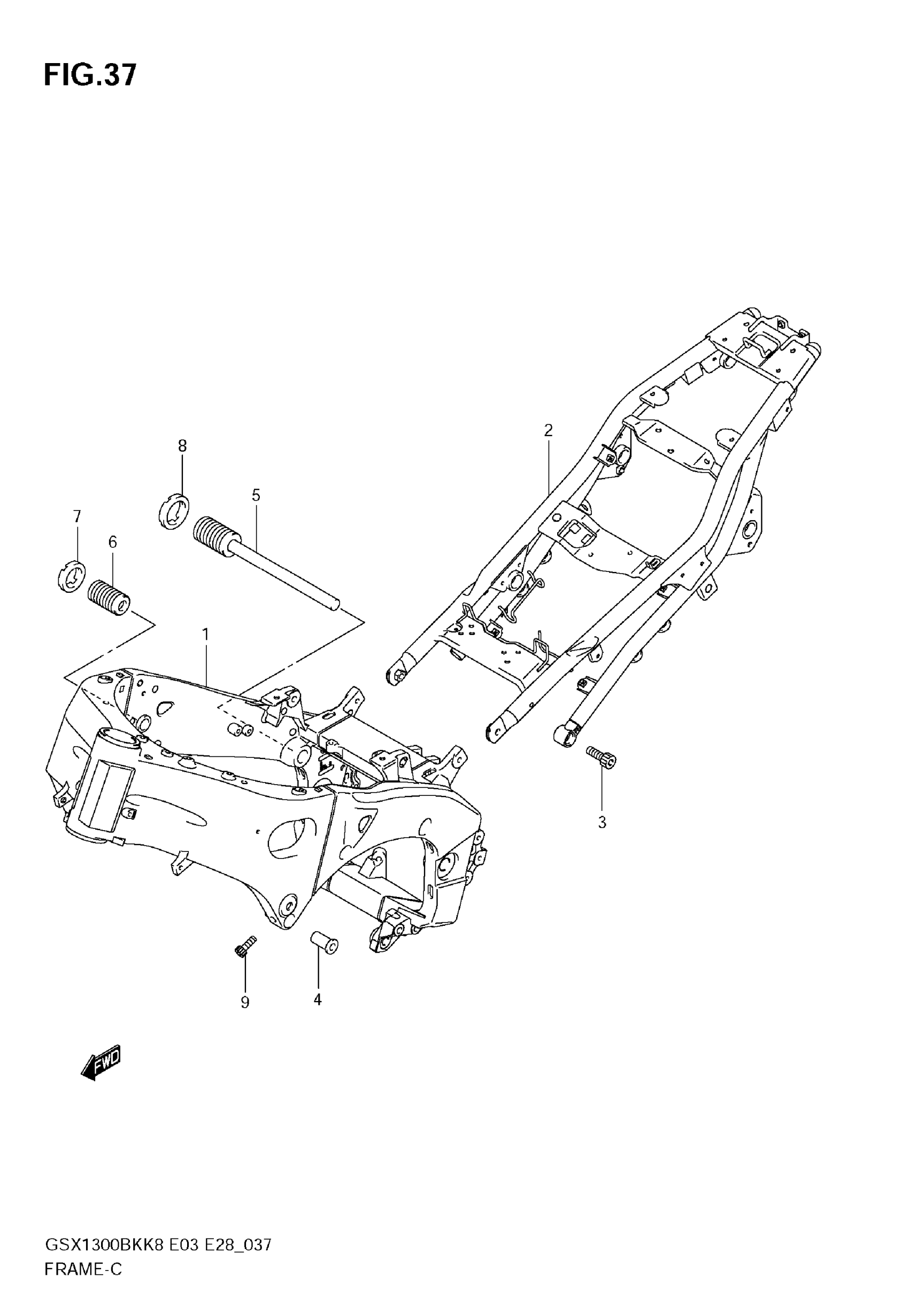

Suzuki GSX1300BK (2009) FRAME Diagram

#

Description

Price

1

FRAME (BLACK)

41100-23H02-YAP

Unavailable

2

RAIL, SEAT

41200-23H00

Unavailable

3

BOLT, SEAT RAIL

09106-10074

Unavailable

4

SPACER, ENGINE

41911-33E10

$26.20

5

BOLT,CRANK CASE ADJUST This part replaces 41921-15H00.

41921-15H20

$54.68

6

BOLT,CRANK CASE ADJUST This part replaces 41921-15H10.

41921-15H30

$41.28

7

NUT, CRANK CASE ADJUST

41922-18G00

$36.72

8

NUT,CRANK CASE ADJUST CTR This part replaces 41922-19F00.

41922-19F20

$18.90

9

BOLT, SPACER

09106-08105

$3.78
