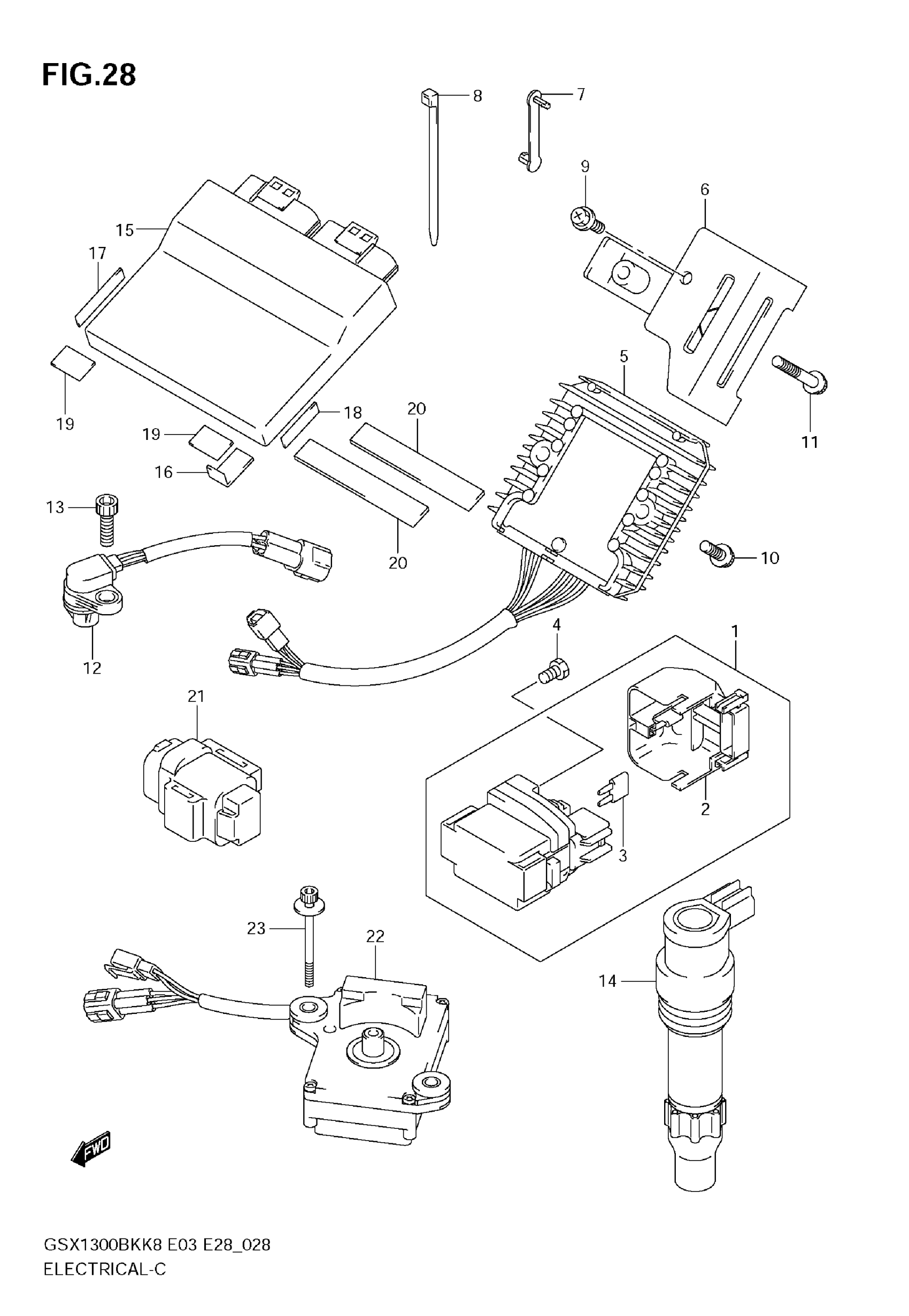

Suzuki GSX1300BK (2009) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-41G00.

31800-41G10

$92.59

2

COVER, RECTIFIER

31861-38G00

$4.88

3

FUSE (30A)

09481-30501

$2.32

4

BOLT, STARTING MOTOR (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY This part replaces 32800-15H00.

32800-15H01

$249.22

6

COVER, RECTIFIER

32820-23H00

Unavailable

7

CLAMP, RECTIFIER LEAD

36651-48E00

$3.25

8

CLAMP (L:100)

09407-10404

$2.90

9

BOLT, COVER RECTIFIER

02162-0610B

Unavailable

10

BOLT, RECTIFIER

07120-0625B

$3.60

11

BOLT, RECTIFIER

07120-0650B

$3.70

12

SENSOR ASSY,CAM POSITION This part replaces 33220-01H00.

33220-01H01

$108.00

13

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

14

COIL ASSY,IGNIT This part replaces 33410-24F10.

33410-24F11

$116.13

15

CONTROL UNIT, FI

32920-23H10

Unavailable

15

CONTROL UNIT, FI | E33

32920-23H20

Unavailable

16

PROTECTOR (80X80X2) | CUT AS REQUIRED (20X40) This part replaces 33652-38A10.

33652-07D00

$5.64

17

PROTECTOR (80X80X2) | CUT AS REQUIRED (10X50) This part replaces 33652-38A10.

33652-07D00

$5.64

18

PROTECTOR (80X80X2) | CUT AS REQUIRED (10X35) This part replaces 33652-38A10.

33652-07D00

$5.64

19

CUSHION, FI (170X95X3.0) | CUT AS REQUIRED (20X11)

33651-37000

$4.48

20

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

21

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88

22

ACTUATOR ASSY This part replaces 33970-41G00.

33970-41G02

$584.90

23

BOLT, ACTUATOR (6X60)

09116-06198

Unavailable
