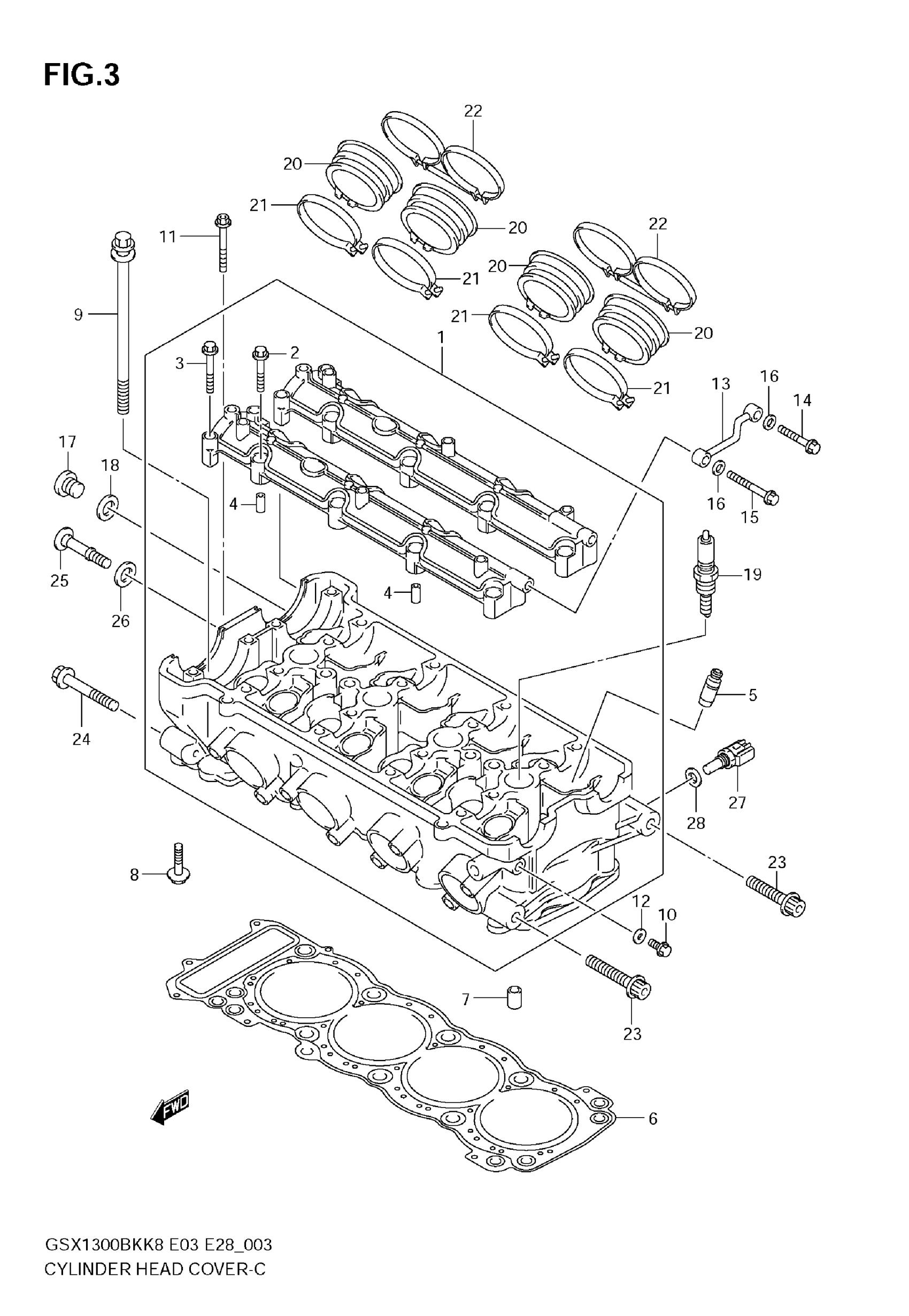

Suzuki GSX1300BK (2009) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 4

11100-23H00

Unavailable

2

BOLT (6X39)

09103-06026

$1.98

3

BOLT (6X45)

09103-06165

$3.03

4

PIN

09206-08007

$2.60

5

GUIDE,VALVE (OS:0.3) | OPT

11115-15H70

$41.63

6

GASKET, CYLINDER HEAD

11141-15H00

$105.37

7

PIN

04211-11169

$1.78

8

BOLT

01550-0630B

$2.85

9

BOLT,CYLINDER HEAD (L180)

11117-15H00

$17.88

10

BOLT, OIL GALLERY

09103-06222

$2.26

11

BOLT, CYLINDER HEAD

07120-0655B

$4.10

12

GASKET

09168-06023

$2.35

13

PIPE,OIL This part replaces 11131-33E00.

11131-33E01

$46.70

14

BOLT (6X35)

01550-0635B

$2.73

15

BOLT (6X45)

01550-0645B

Unavailable

16

WASHER

08322-0106B

$2.26

17

PLUG

09248-16012

$4.64

18

GASKET

09168-16009

$2.50

19

SPARK PLUG (NGK,CR9EIA-9)

09482-00558

$12.14

19

SPARK PLUG (DENSO,IU27D)

09482-00557

$16.60

19

SPARK PLUG (NGK,CR8EIA-9) | OPT

09482-00556

$10.85

19

SPARK PLUG (NGK,CR10EIA-9) | OPT

09482-00560

$10.85

19

SPARK PLUG (DENSO,IU24D) | OPT

09482-00555

$17.96

19

SPARK PLUG (DENSO,IU31D) | OPT

09482-00559

$20.10

20

PIPE,INTAKE This part replaces 13111-15H00.

13111-15H01

$17.98

21

..CLAMP

09402-60208

$5.11

22

CLAMP

13170-15H10

$27.09

23

BOLT, ENG MOUNTING (10X45)

09106-10069

$4.24

24

BOLT, ENG MOUNTING (10X60)

09106-10084

$6.47

25

BOLT, CYL HEAD SIDE FACE

11161-33E00

$9.89

26

WASHER

11191-13E00

$4.54

27

SENSOR, WATER TEMPERATURE

13650-49X00

$90.19

28

GASKET

09168-12017

$1.95
