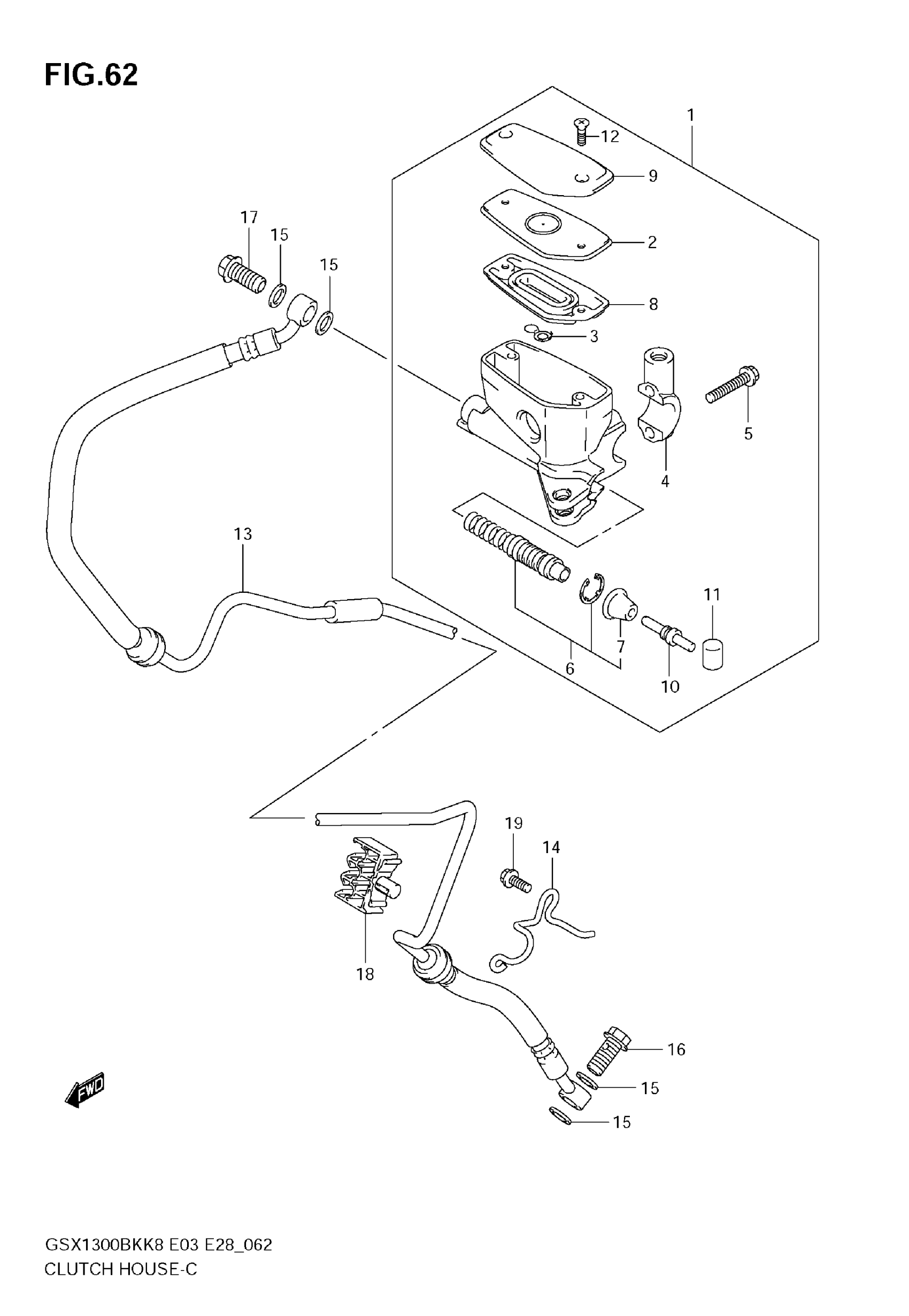

Suzuki GSX1300BK (2009) CLUTCH HOSE Diagram

#

Description
Price

1

CYLINDER ASSY,C | Includes Item(s) 2 - 12 This part replaces 59800-23H00.

59800-23H01

$285.12

2

.PLATE

57438-23H00

$6.48

3

PROTECTOR

59664-32F00

$11.68

4

HOLDER

59671-32F00

$19.52

5

BOLT (6X22)

59675-02FA0

$3.82

6

PISTON & CUP SET

59800-23810

Unavailable

7

BOOT

59866-23H00

$7.97

8

.DIAPHRAGM

59867-23H00

$12.78

9

CAP

59869-23H00

Unavailable

10

PUSH ROD

59871-23H00

$9.52

11

BUSH

59892-08A00

$5.05

12

SCREW, RESERVOIR CAP

69689-49300

$1.91

13

HOSE, CLUTCH

59910-23H00

Unavailable

14

CLAMP, CLUTCH HOSE | E3,E28 GSX1300BKK8/K9

59921-23H00

Unavailable

15

WASHER (10X15X1.5)

09161-10009

$1.84

16

BOLT, CLUTCH HOSE

09360-10062

$6.43

17

BOLT, CLUTCH HOSE

09360-10062

$6.43

18

CLAMP, PIPE | GSX1300BKK8/K9

09403-07337

Unavailable

19

BOLT (8X12) | E3,E28 GSX1300BKK8/K9

01550-0812A

$2.32
