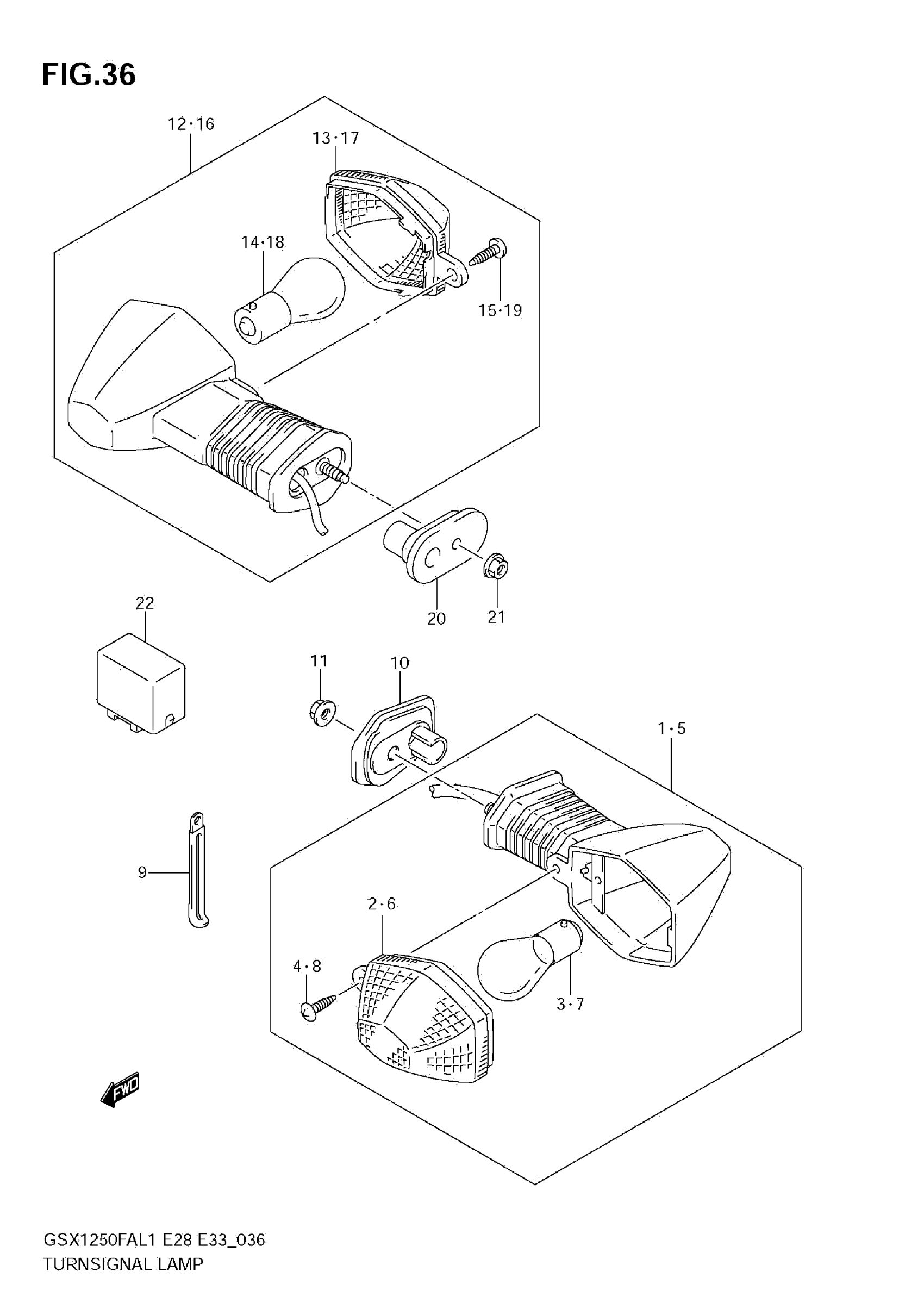

Suzuki GSX1250FAL1 (2011) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURNSIGNAL, RH

35601-38G10

$106.15

2

LENS, RH

35612-29FA0

$14.37

3

BULB (12V 21W)

09471-12186

$12.66

4

SCREW

03241-0416B

$2.15

5

LAMP ASSY, FR TURNSIGNAL, LH

35602-38G10

$106.15

6

LENS, LH

35632-29FA0

$14.37

7

BULB (12V 21W)

09471-12186

$12.66

8

SCREW

03241-0416B

$2.15

9

CLAMP (L:45)

09404-06429

$1.83

10

PLATE, FR TURNSIGNAL

35629-18G00

$2.42

11

NUT

08316-1005A

$2.19

12

LAMP ASSY, REAR TURNSIGNAL,RH

35603-29FB0

$110.18

13

LENS, RH

35632-29FA0

$14.37

14

BULB (12V 21W)

09471-12186

$12.66

15

SCREW

03242-0416B

$2.93

16

LAMP ASSY, REAR TURNSIGNAL,LH

35604-29FB0

$108.15

17

LENS, LH

35612-29FA0

$14.37

18

BULB (12V 21W)

09471-12186

$12.66

19

SCREW

03242-0416B

$2.93

20

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.40

21

NUT

08316-1005A

$2.19

22

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
