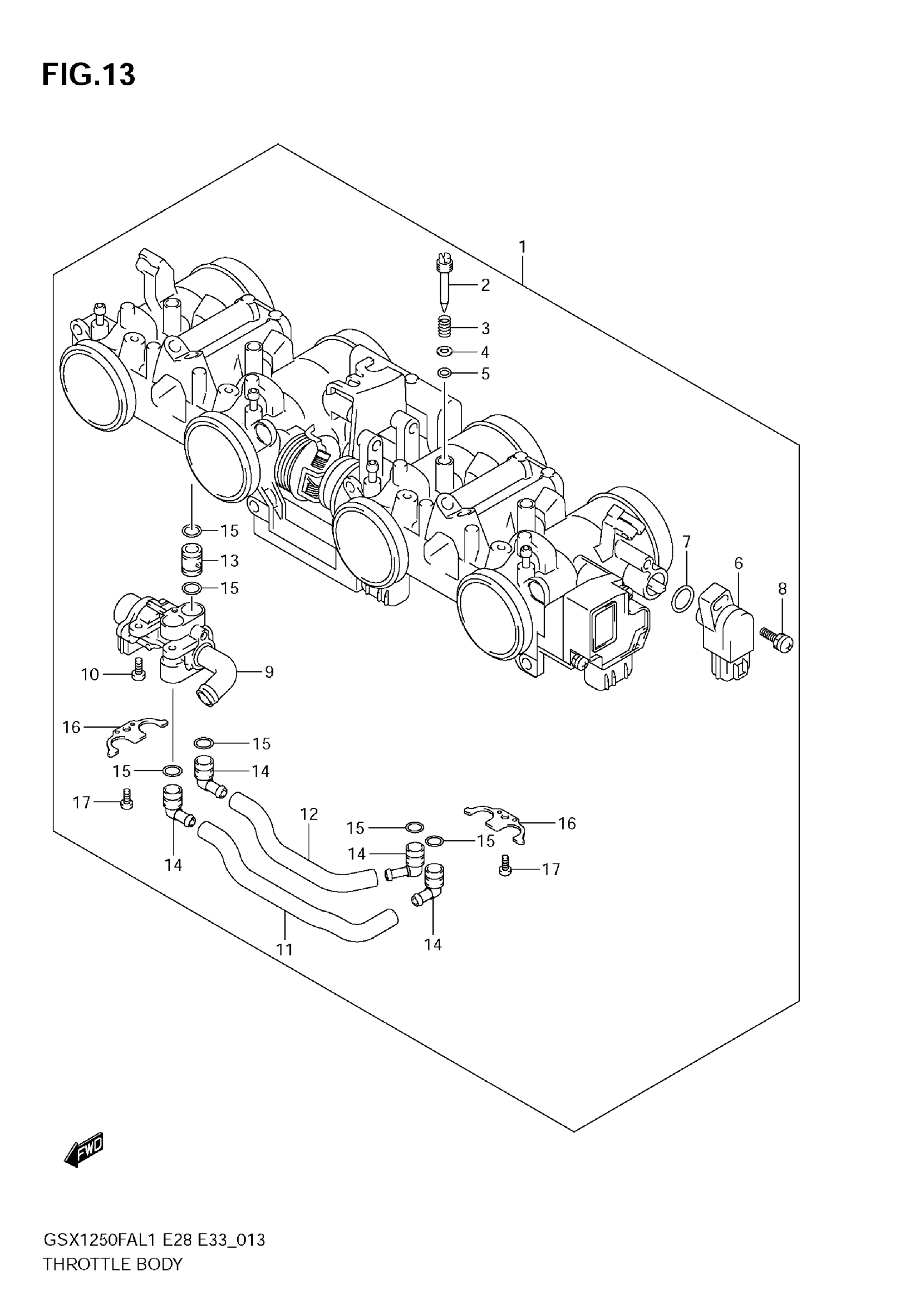

Suzuki GSX1250FAL1 (2011) THROTTLE BODY (E28) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13405-18H00

Unavailable

2

SCREW

13269-33E00

$11.10

3

SPRING,THROTTLE SCREW

13268-48700

$4.34

4

WASHER

13606-47A00

$3.28

5

O-RING This part replaces 13295-29900.

13295-29901

$4.34

6

SENSOR ASSY

13580-18H00

$151.08

7

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

8

SCREW

13605-02F00

$3.71

9

ACTUATOR,ISC This part replaces 18117-18H00.

18117-18H01

Unavailable

10

SCREW

13605-18H00

Unavailable

11

HOSE

13698-18H00

Unavailable

12

HOSE

13698-18H10

Unavailable

13

PIPE

13682-18H00

Unavailable

14

NIPPLE

13685-18H00

Unavailable

15

O RING

13679-18H00

Unavailable

16

PLATE

13691-18H00

Unavailable

17

SCREW

02112-0408A

$1.49
