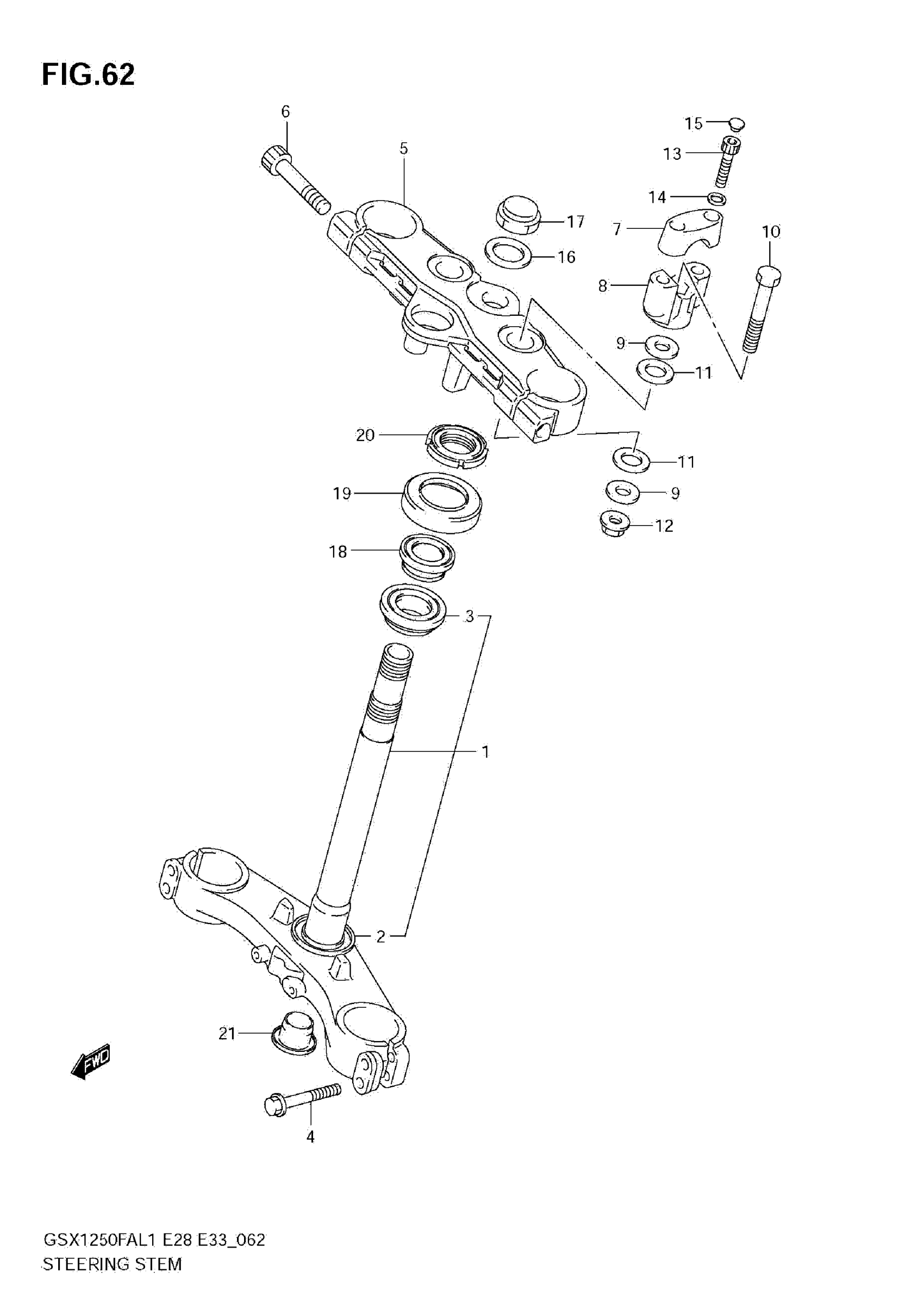

Suzuki GSX1250FAL1 (2011) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING

51410-32F10

Unavailable

2

SEAL, LOWER

51644-12C00

$9.44

3

BEARING (30X55X17)

09265-30020

$44.41

4

BOLT,HOLDER AXLE (8X40)

51328-27E30

$4.37

5

HEAD, STEERING STEM

51311-49G00

Unavailable

6

BOLT

51166-39AA0

Unavailable

7

HOLDER, HANDLE

56211-17G00

Unavailable

8

HOLDER, HANDLE, LOWER

56221-49G00

$78.80

9

WASHER

51355-49G00

Unavailable

10

BOLT

56321-49G00

$14.02

11

RUBBER SEAT

56245-49G00

$9.42

12

NUT This part replaces 08319-31108.

08319-31107

$2.73

13

BOLT This part replaces 51321-10F00.

07130-08307

$3.89

14

WASHER

09164-08015

$3.21

15

CAP (OD:11)

09250-06011

$2.50

16

WASHER

51354-49G00

$14.20

17

NUT, STEM This part replaces 51353-38A01.

51353-24B00

$30.67

18

BEARING (25X47X15)

09265-25038

$45.57

19

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

20

NUT, STEERING STEM

51631-31F00

$19.87

21

CAP

51482-44H00

$17.83
