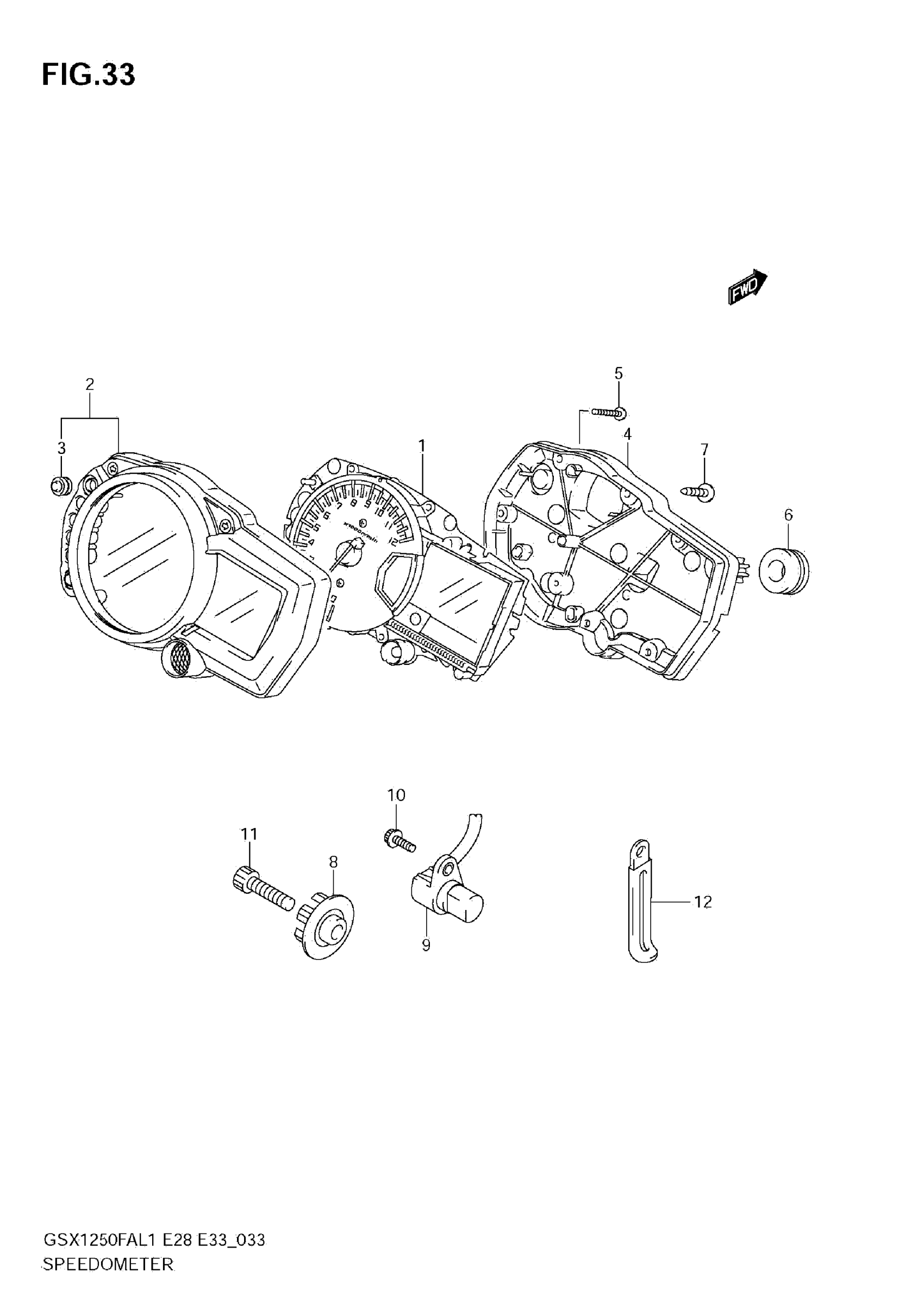

Suzuki GSX1250FAL1 (2011) SPEEDOMETER (E28) Diagram

#

Description
Price

1

SPEED & TACHOMETER ASSY

34120-18HK0

Unavailable

2

CASE, UPPER

34150-17HD0

Unavailable

3

SWITCH, RUBBER

34124-39G00

$8.42

4

CASE, LOWER

34111-17HA0

Unavailable

5

SCREW (3X16)

34383-35F00

$3.23

6

CUSHION

09320-08028

$3.04

7

SCREW

03541-0512A

$1.49

8

ROTOR,SPEED

34981-38G01

$17.92

9

SENSOR, SPEED This part replaces 34990-47F00.

34990-35F00

$127.72

10

BOLT

07120-0512B

$2.61

11

BOLT

07130-0825B

$3.37

12

CLAMP (L:45)

09404-06429

$1.83
