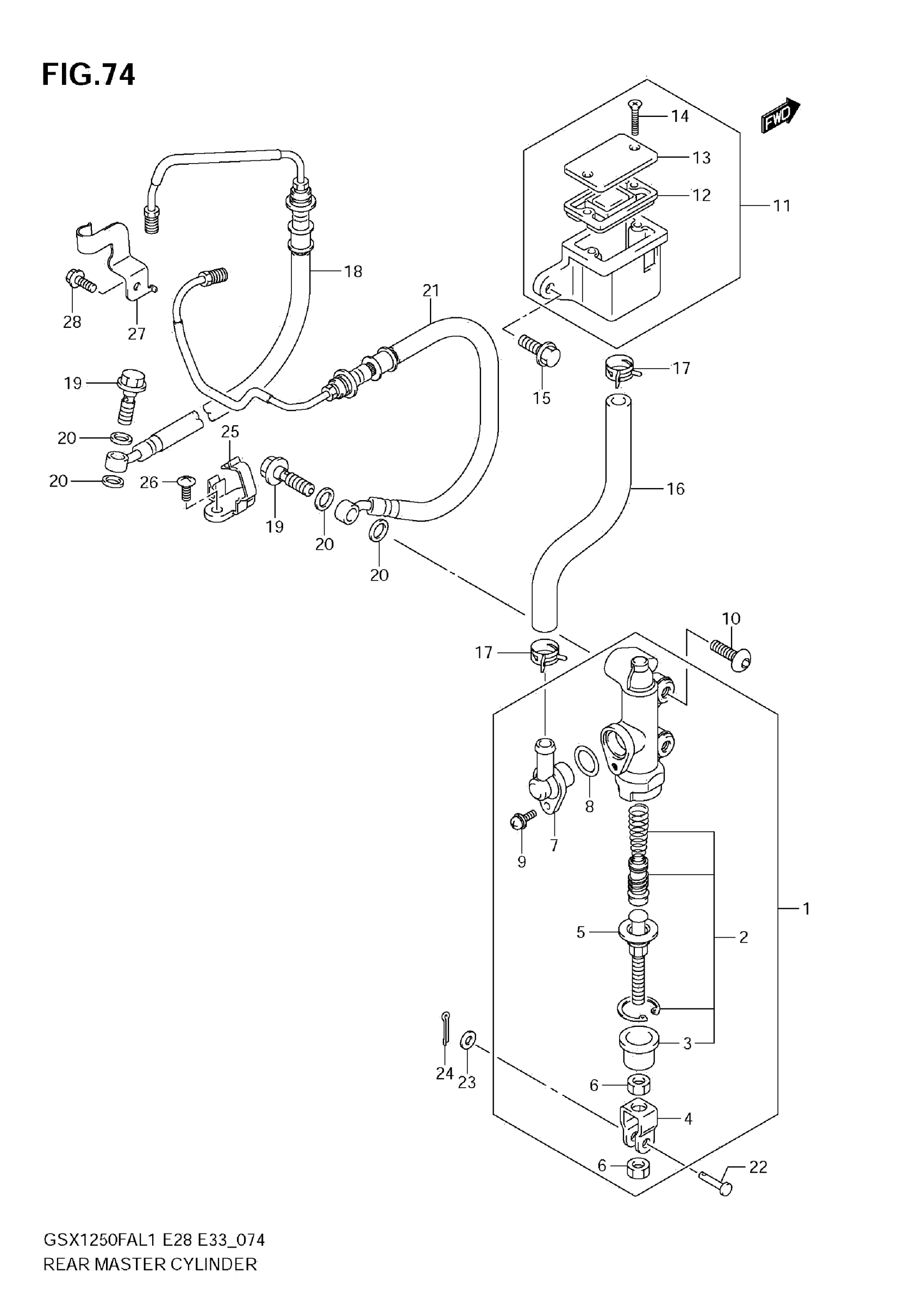

Suzuki GSX1250FAL1 (2011) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-17C20

$348.28

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$25.44

3

.BOOT

69691-00A00

$5.22

4

YOKE

69692-44H00

$19.03

5

ROD, PUSH

69670-48B00

$35.80

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-05A00

$5.47

8

O RING

69686-34200

$2.80

9

SCREW

02112-7412A

$2.67

10

BOLT (8X20)

09106-08167

$3.27

11

TANK ASSY, REAR RESERVOIR

69740-38B21

$116.63

12

DIAPHRAGM

59667-04700

$9.36

13

CAP

59669-05D00

$16.49

14

SCREW

69689-04A00

$2.15

15

BOLT

01547-0612A

$2.09

16

HOSE, RESERVOIR TANK

69731-31F00

$23.55

17

CLAMP

09401-13417

$2.31

18

HOSE ASSY,RR BR This part replaces 69200-17H00.

69200-17H01

$100.37

19

UNION

09360-10062

$5.99

20

WASHER (10X15X1.5)

09161-10009

$1.89

21

HOSE ASSY,RR BR This part replaces 69400-18H00.

69400-18H01

$154.77

22

PIN

09200-06068

$3.82

23

WASHER

08322-0106A

$1.89

24

PIN

04111-2015A

$1.25

25

GUIDE,RR BRAKE HOSE

61196-44H00

Unavailable

26

SCREW

02142-0616A

$1.41

27

CLAMP, RR BRAKE HOSE NO.2

69266-38G00

Unavailable

28

BOLT

01547-0612A

$2.09
