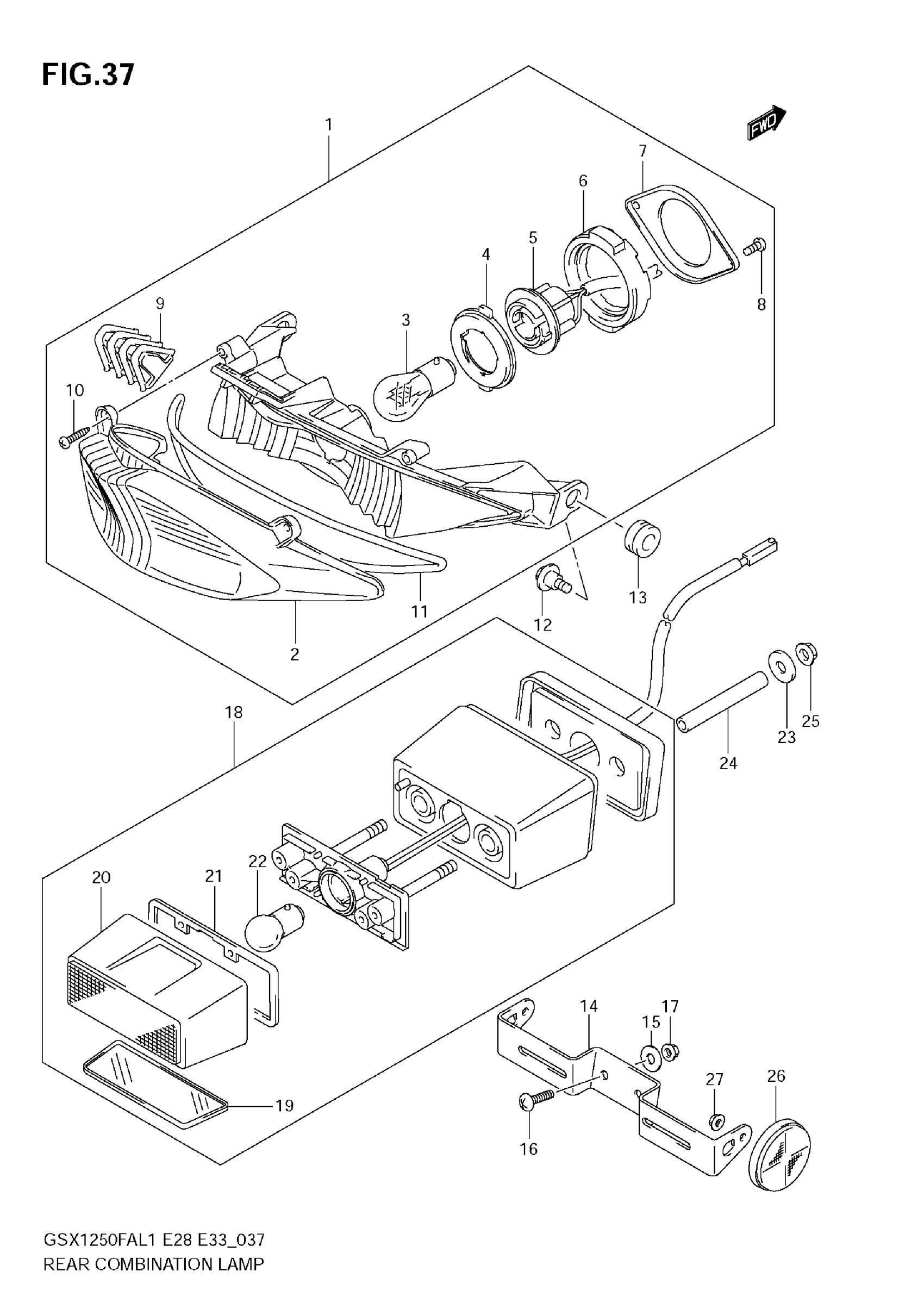

Suzuki GSX1250FAL1 (2011) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMB

35710-38G51

$188.15

2

LENS

35712-38G50

$51.92

3

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

4

PLATE, NO.1

35716-48B21

$20.22

5

SOCKET & CORD

35718-38G00

Unavailable

6

CUSHION

35765-48B21

$12.97

7

PLATE, NO.2

35736-48B21

$21.92

8

SCREW

03211-0412A

$2.23

9

CUSHION

35716-38G00

Unavailable

10

SCREW

03211-0416A

$1.49

11

GASKET

35713-38G00

Unavailable

12

SCREW (5X16.2)

09139-05080

$2.60

13

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

14

BRACKET, LICENSE PLATE

35927-38G50

Unavailable

15

WASHER (6.5X20X1.2)

09160-06077

$1.91

16

SCREW

02142-0616A

$1.49

17

NUT

08316-1006A

$2.19

18

LAMP ASSY,LICEN This part replaces 35910-41G50.

35910-41G51

$254.21

19

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

$13.28

20

COVER

35917-41G00

$35.32

21

GASKET

35913-41G00

$14.23

22

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

23

WASHER (6.5X20X1.2)

09160-06077

$1.91

24

SPACER (6.5X9X63.5)

09180-06344

Unavailable

25

NUT

08316-1006A

$2.19

26

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

27

NUT

08316-1005B

$2.50
