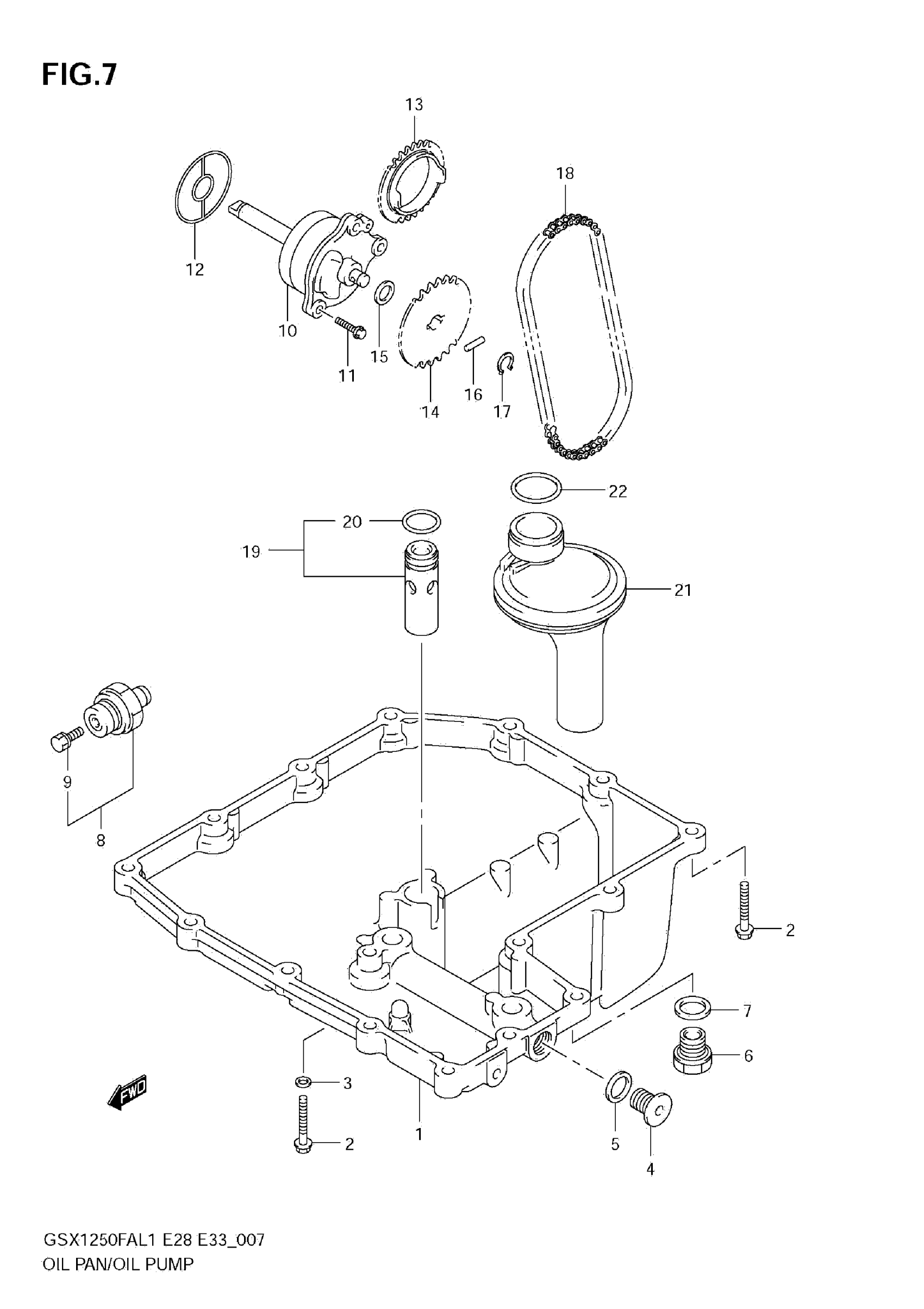

Suzuki GSX1250FAL1 (2011) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11511-18H10

$335.37

2

BOLT

01547-0625A

$2.01

3

GASKET (5.8X13X1.2)

09168-06023

$2.35

4

PLUG

09248-12004

$7.95

5

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

6

PLUG

09247-14036

$6.17

7

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

8

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$25.13

9

BOLT

37822-33D00

$4.35

10

PUMP ASSY, OIL

16400-18H00

Unavailable

11

BOLT

01547-0620A

$2.03

12

O-RING

16491-33E00

$6.70

13

SPROCKET, DRIVE

16321-01H00

$76.88

14

SPROCKET, DRIVEN

16331-18H00

Unavailable

15

SHIM (10X18X0.5)

09181-10158

$1.97

16

PIN (4X15.8)

09261-04009

$1.56

17

CIRCLIP This part replaces 08331-3110A.

08331-31109

$1.78

18

CHAIN, OIL PUMP DRIVE

16310-18H00

Unavailable

19

VALVE ASSY, OIL RELIEF

16440-24F00

$50.04

20

O RING (D:1.9,ID:13)

09280-13004

$2.17

21

STRAINER ASSY,E This part replaces 16520-18H00.

16520-18H01

Unavailable

22

.O-RING (D:2.4,ID:24.7)

09280-25004

$2.03
