2011 Suzuki GSX1250FAL1 Hydraulic Unit Diagram

← All diagrams

Find the part on the Hydraulic Unit diagram for your 2011 Suzuki GSX1250FAL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

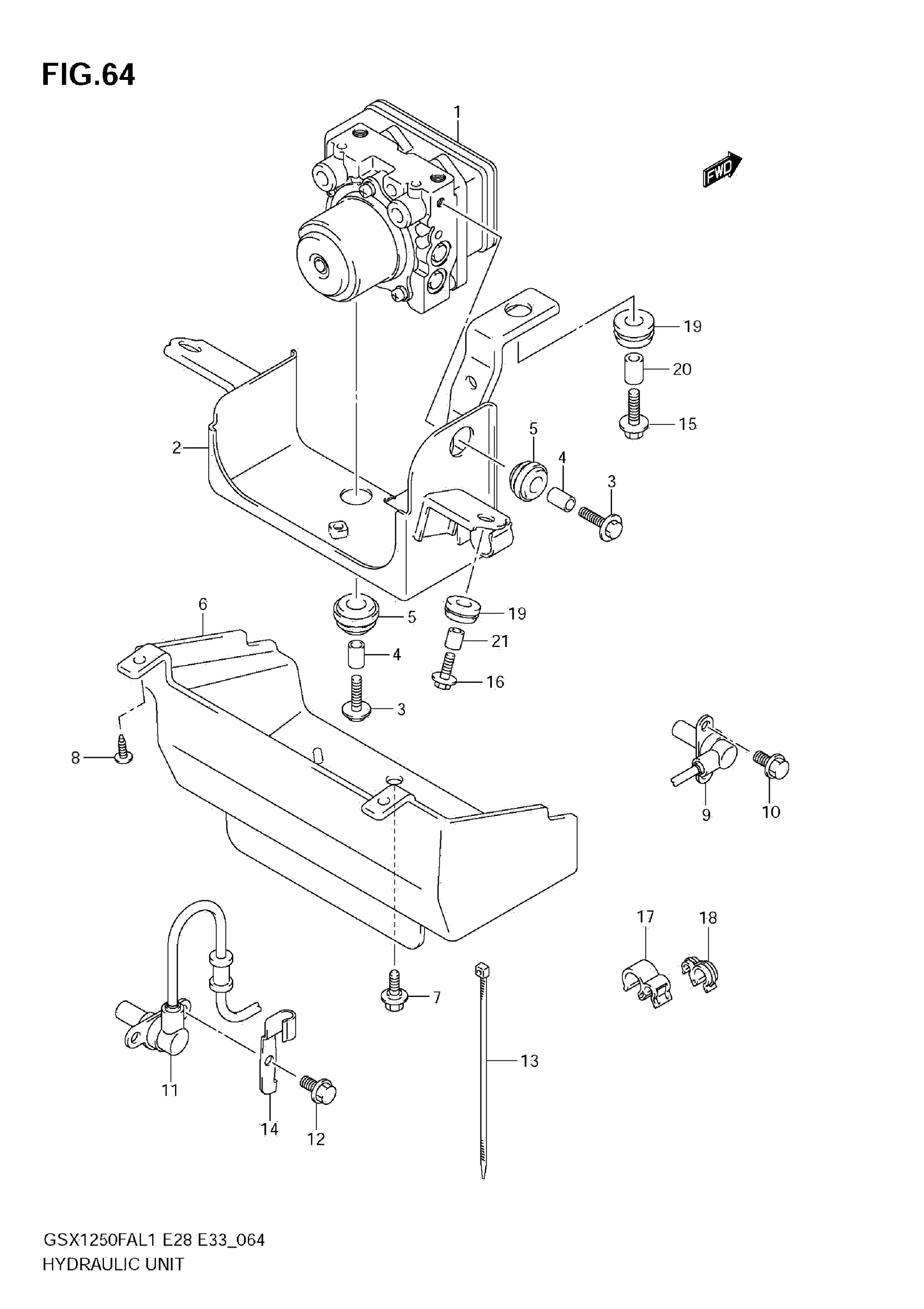

2011 Suzuki GSX1250FAL1 Hydraulic Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNIT ASSY,HYDRA This part replaces 55610-18H10.

55610-18H11

1
Out of stock

2

HOLDER, HYDRAULIC UNIT ABS

55660-49G00

1
Out of stock

3

BOLT, UNIT MOUNTING

55661-10G00

3
Out of stock

4

SPACER

55662-10G00

3
Out of stock

5

RUBBER

55663-10G00

3
Out of stock

6

COVER, HYDRAULIC UNIT

55667-38G01

1
Out of stock

7

BOLT (6X16)

09111-06065

1
Out of stock

8

SCREW

03541-0516A

2
Out of stock

9

SENSOR, FR WHEEL ABS

55710-49G01

1
Out of stock

10

BOLT

01547-0612A

2
Out of stock

11

SENSOR, RR WHEEL ABS

65710-38G00

1
Out of stock

12

BOLT

01547-0612A

2
Out of stock

13

CLAMP (L:145)

09407-14407

3
Out of stock

14

CLAMP, ABS SENSOR REAR

65731-38G00

1
Out of stock

15

BOLT (6X20)

09116-06192

1
Out of stock

16

BOLT (6X25)

09116-06202

2
Out of stock

17

CLAMP

09408-00266

2
Out of stock

18

CLAMP

09408-00242

3
Out of stock

19

CUSHION

09320-08037

3
Out of stock

20

SPACER (6.5X9X8)

09180-06261

1
Out of stock

21

SPACER (6.5X9X11.5)

09180-06266

2
Out of stock
