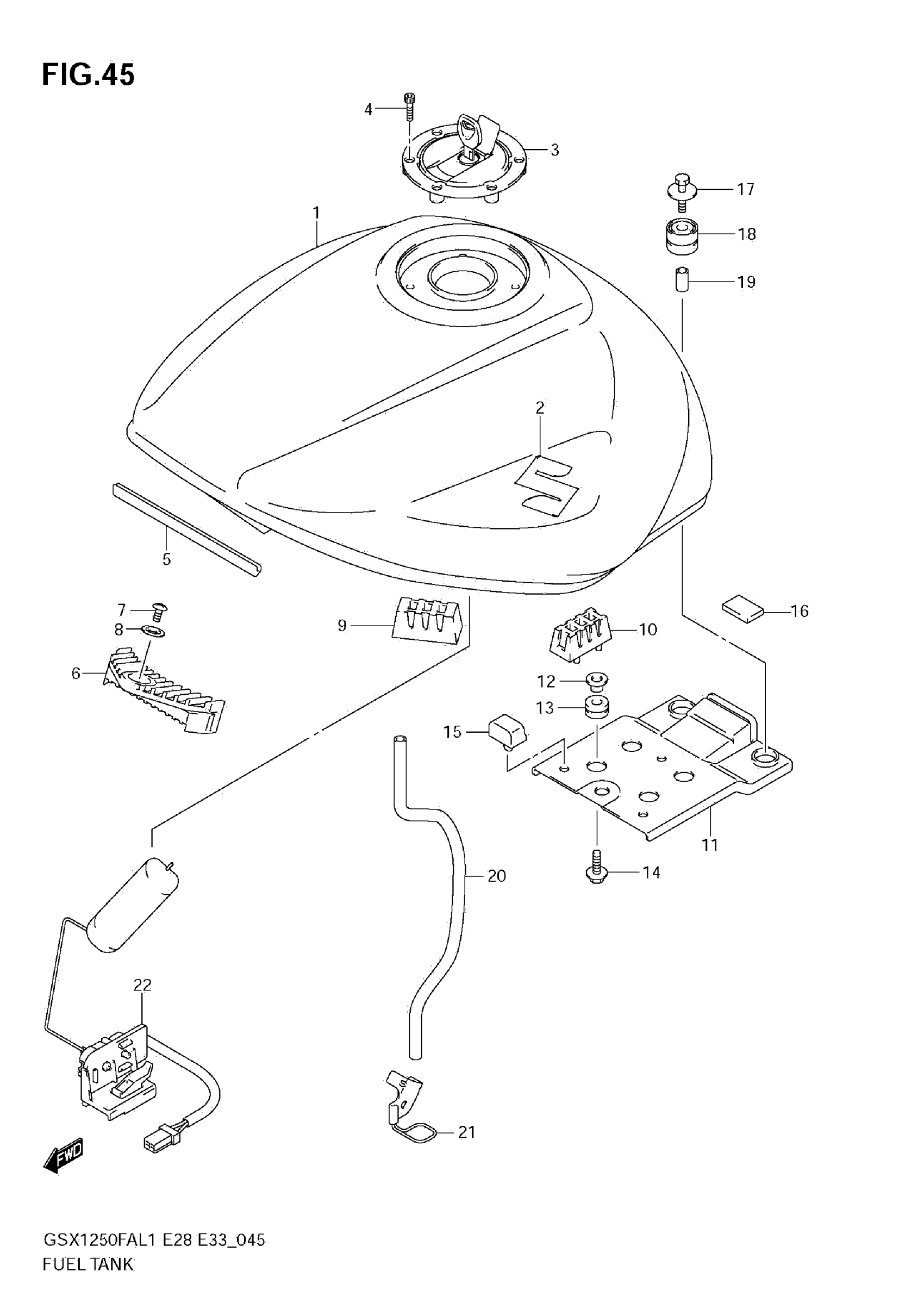

Suzuki GSX1250FAL1 (2011) FUEL TANK (E33) Diagram

#

Description
Price

1

TANK ASSY,FUEL( This part replaces 44100-18H50-YAY.

44100-18H51-YAY

$1,404.12

2

EMBLEM, S

68111-18G20

$32.30

3

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

4

BOLT (5X20)

09106-05017

$2.83

5

MOLDING

68241-04X50-300

$7.32

6

CUSHION, FRONT

44511-27E00

$12.48

7

SCREW

02142-0510B

$1.78

8

WASHER

09169-05012

$2.38

9

CUSHION, SIDE

45149-45330

$3.89

10

CUSHION, FUEL TANK SIDE

44541-31F00

$11.53

11

BRACKET, REAR

44141-38G00

Unavailable

12

WASHER

09169-06062

$2.50

13

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

14

BOLT (6X20)

09116-06192

$2.30

15

CUSHION

45149-21G00

Unavailable

16

CUSHION

47163-10FA0

$4.55

17

BOLT (6X30)

09116-06172

$2.50

18

CUSHION,FUEL TA This part replaces 44541-38G00.

44541-38G01

$5.22

19

SPACER (6.5X9X18)

09180-06271

$2.35

20

HOSE, DRAIN

44423-18H10

Unavailable

21

GUIDE, DRAIN HOSE

44480-07J10

Unavailable

22

GAUGE ASSY,FUEL This part replaces 34810-18H00.

34810-18H01

$111.66
