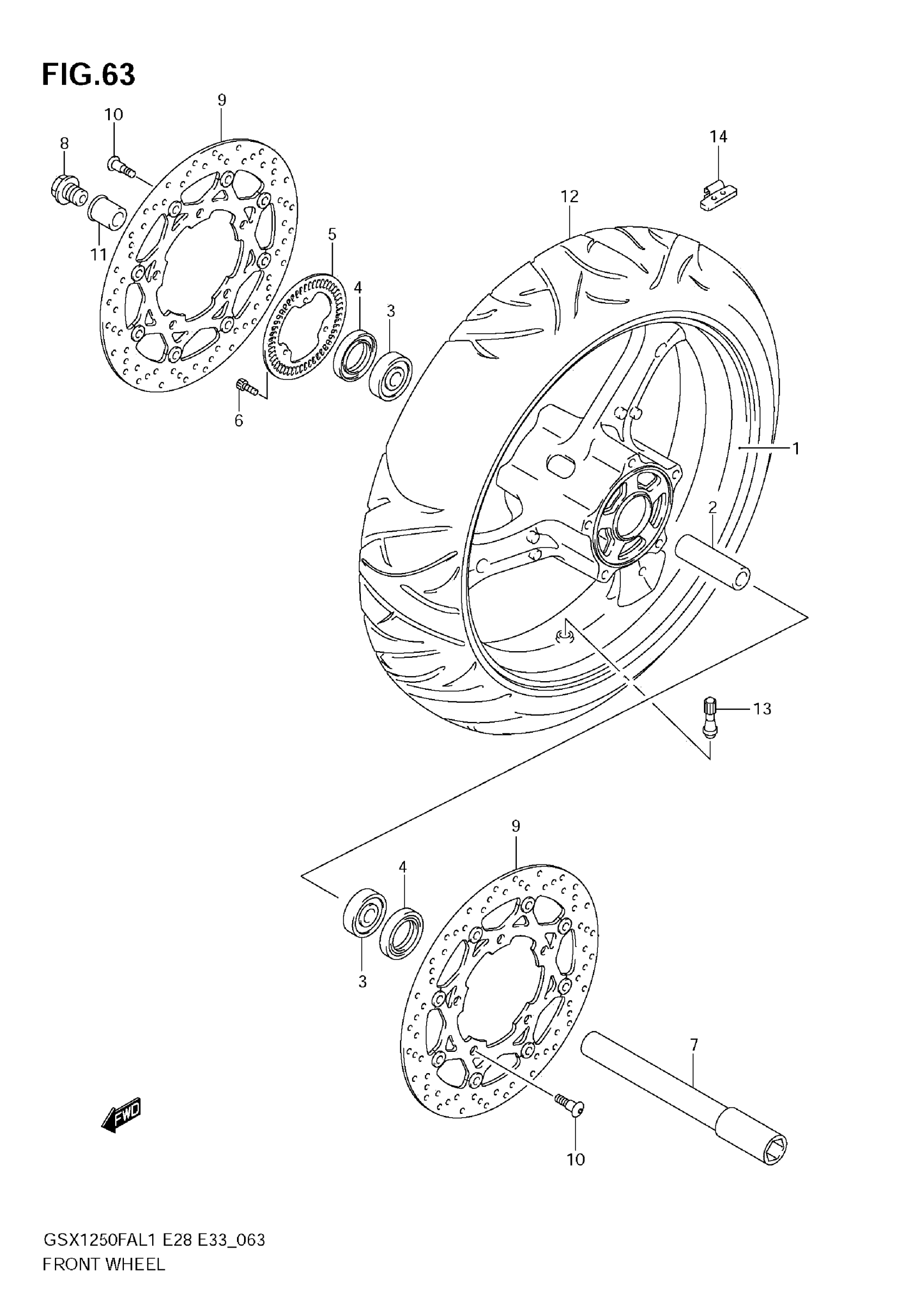

Suzuki GSX1250FAL1 (2011) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (17M/CXMT3.50) (BLACK)

54111-49G10-019

$1,299.20

2

SPACER

54731-49G00

Unavailable

3

BEARING (25X52X15)

09262-25061

$33.12

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

RING, SPEED SENSOR FR

54162-27G00

$140.15

6

BOLT

07130-0512A

$2.19

7

AXLE, FRONT

54711-49G00

$240.73

8

BOLT, FRONT AXLE

54712-41G10

$16.19

9

DISC,FR BRAKE

59210-44G11

$415.82

10

BOLT (8X21)

09106-08160

$3.57

11

SPACER, FRONT AXLE RH

54751-49G00

Unavailable

12

TIRE, FRONT (120/70ZR17M/C (58W))

55110-18H00

Unavailable

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

14

BALANCER, WHEEL NO.1

55411-22H00

$8.60

14

BALANCER, WHEEL NO.2

55412-22H00

$10.07

14

BALANCER, WHEEL NO.3

55413-22H00

$11.47
