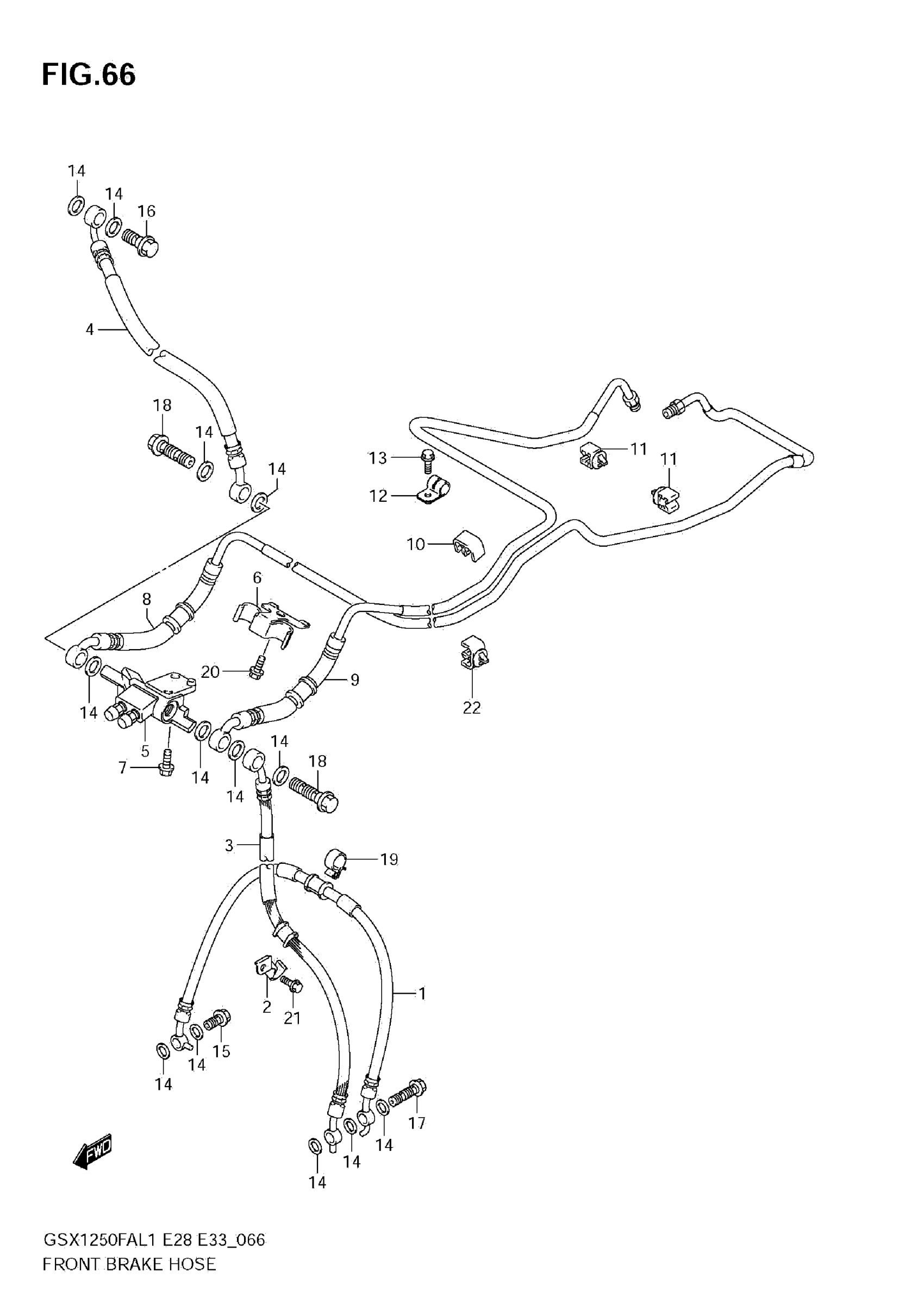

Suzuki GSX1250FAL1 (2011) FRONT BRAKE HOSE Diagram

#

Description
Price

1

HOSE, FRONT BRAKE NO.2

59240-46H00

Unavailable

2

CLAMP, FRONT BRAKE HOSE NO.2, LH

59269-38G00

Unavailable

3

HOSE,FR BRAKE N This part replaces 59440-18H10.

59440-18H11

$65.83

4

HOSE, FRONT BRAKE NO.1

59480-07J00

Unavailable

5

JOINT, FRONT BRAKE HOSE

59500-46H00

Unavailable

6

CLAMP, FRONT BRAKE JOINT HOSE

59251-18H00

Unavailable

7

BOLT

01550-0616A

$1.97

8

HOSE ASSY, FR BRAKE NO.1

59200-18H00

Unavailable

9

HOSE ASSY, FR BRAKE NO.2

59400-18H00

Unavailable

10

CLAMP

09403-06324

Unavailable

11

CLAMP

51761-62J70

Unavailable

12

CLAMP

09403-07401

Unavailable

13

BOLT

01547-0616A

$2.03

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

UNION

09360-10062

$6.43

16

UNION

09360-10062

$6.43

17

UNION

09360-10064

$6.43

18

UNION

09360-10064

$6.43

19

CLAMP

09403-16412

$3.37

20

BOLT

01547-0612A

$2.03

21

BOLT

01547-0610A

$2.45

22

CLAMP

09403-07336

Unavailable
