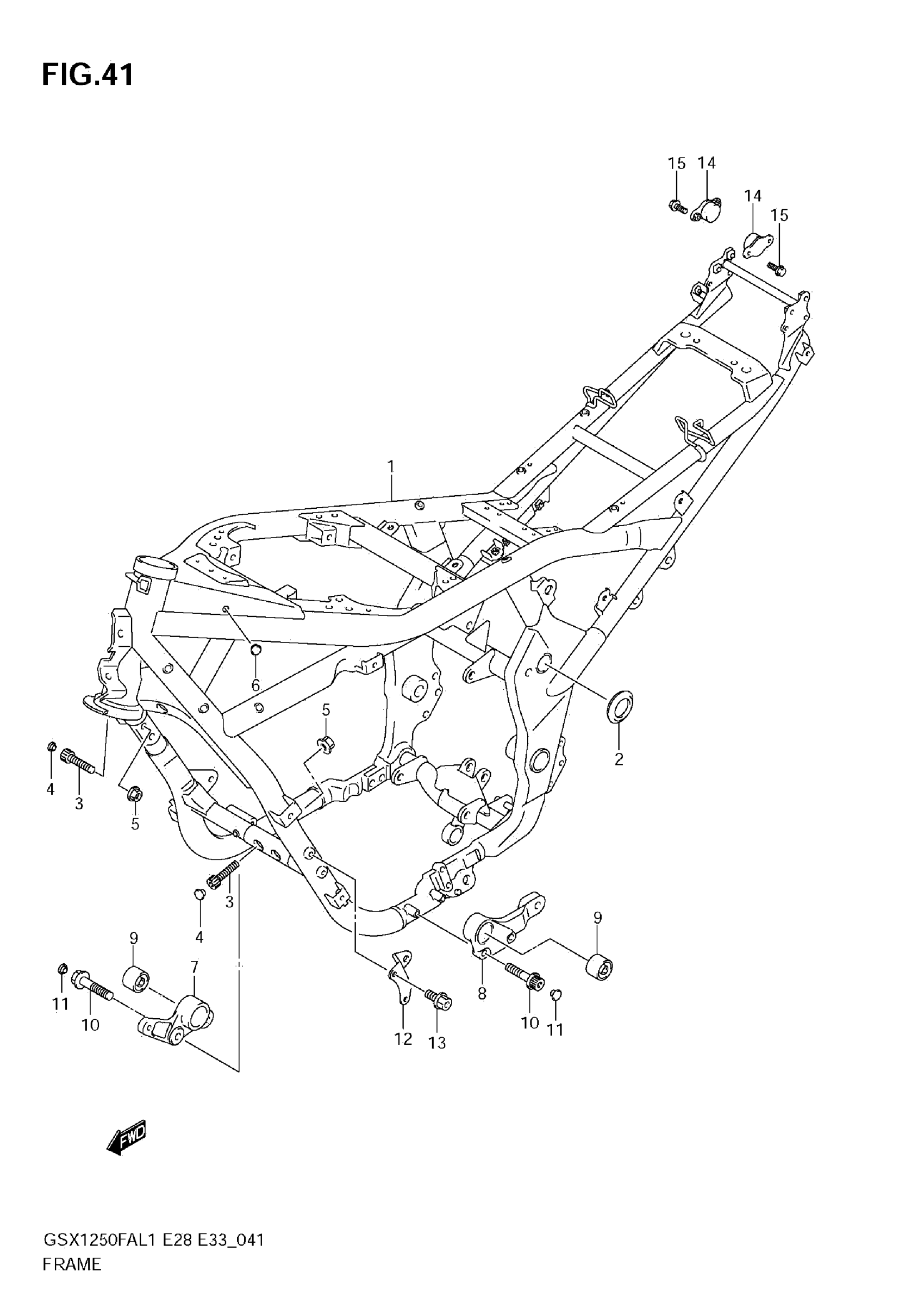

Suzuki GSX1250FAL1 (2011) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-18H10-YAP

Unavailable

2

CAP, FRAME PIVOT

43585-38G01

$9.23

3

BOLT (10X37)

09106-10068

$3.50

4

CAP (OD:12) | RH

09250-08012

$2.15

5

NUT

08319-3110B

$3.87

6

PLUG

09250-12014

Unavailable

7

BRACKET, MOUNT NO.2 RH

41931-18H10

Unavailable

8

BRACKET, MOUNT NO.2 LH

41941-18H00

Unavailable

9

BUSH

41932-27E50

Unavailable

10

BOLT (8X28)

09106-08065

$3.20

11

CAP This part replaces 09250-06008.

09250-06016

$1.96

12

BRACKET, FRONT (BLACK)

41942-18H00-YAP

Unavailable

13

BOLT

01550-0820A

$2.23

14

DAMPER, FRAME REAR

42550-49G00

Unavailable

15

BOLT

01550-0612A

$1.97
