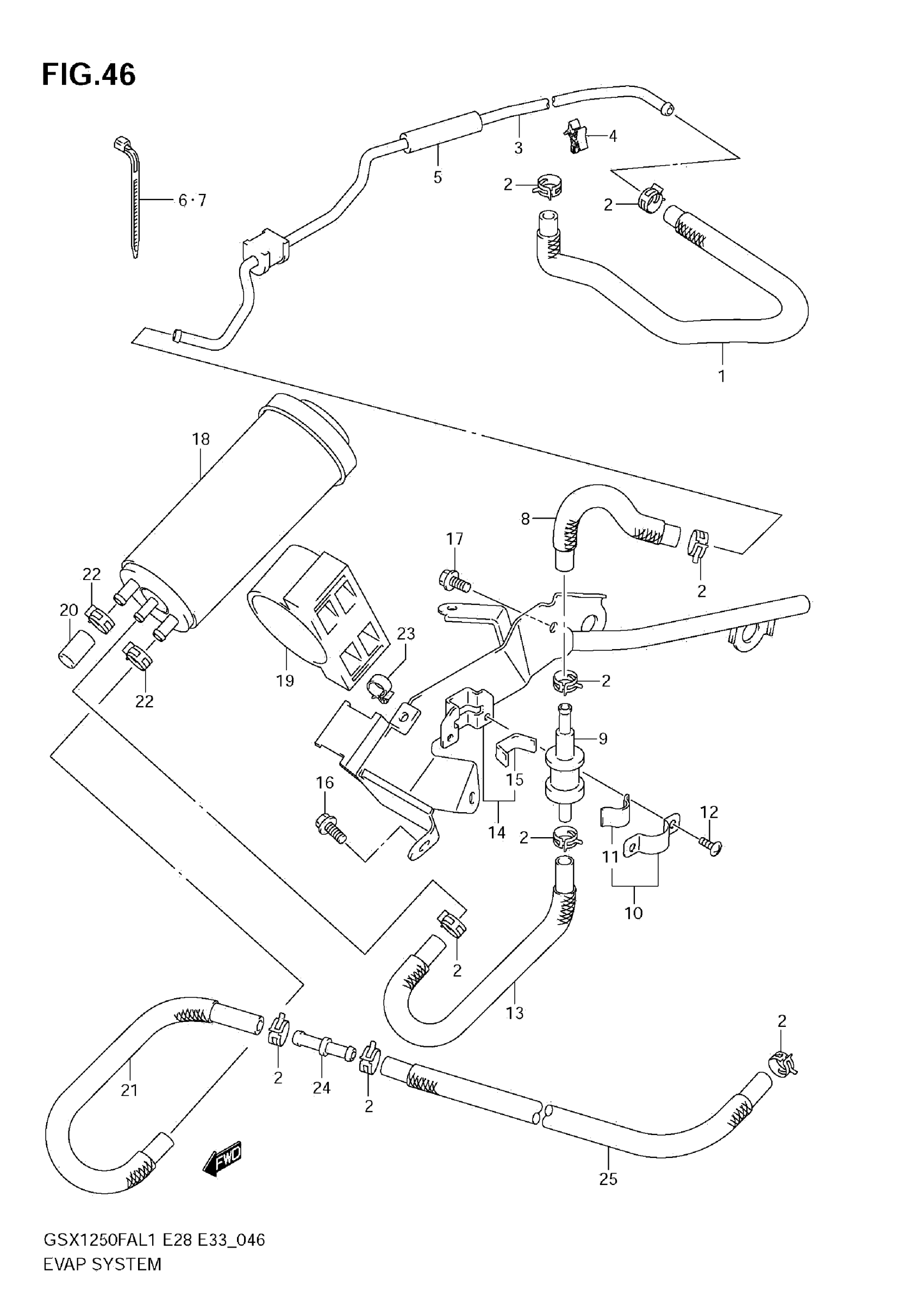

Suzuki GSX1250FAL1 (2011) EVAP SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, TANK & BRTHR VALVE

44434-18H20

Unavailable

2

CLIP

09401-11413

$2.26

3

PIPE, TANK & VALVE

44950-18H00

Unavailable

4

CLAMP

09403-06325

Unavailable

5

CUSHION

53146-05G00

$7.27

6

CLAMP (L:145)

09407-14407

$3.57

7

CLAMP (L:95)

09407-11401

$2.63

8

HOSE, TANK & BRTHR VALVE NO.2

44434-17H00

Unavailable

9

VALVE, BREATHER

44240-38A00

$61.15

10

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

11

CUSHION (10X30X2)

44894-24A00

$1.72

12

SCREW

02142-0410B

Unavailable

13

HOSE, BREATHER

44435-17H00

Unavailable

14

BRACKET, CANISTER

44880-17H01

Unavailable

15

CUSHION (10X30X2)

44894-24A00

$1.72

16

BOLT

01550-0616B

$2.48

17

BOLT

01550-0612B

$2.39

18

CANISTER

17200-17H00

Unavailable

19

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

$15.22

20

CAP

09251-07003

$2.53

21

HOSE, PURGE

44436-18H20

Unavailable

22

CLIP

09401-12404

$2.34

23

CLAMP

09403-12411

Unavailable

24

JOINT

09367-06009

Unavailable

25

HOSE, PURGE NO.2

44436-18H30

Unavailable
