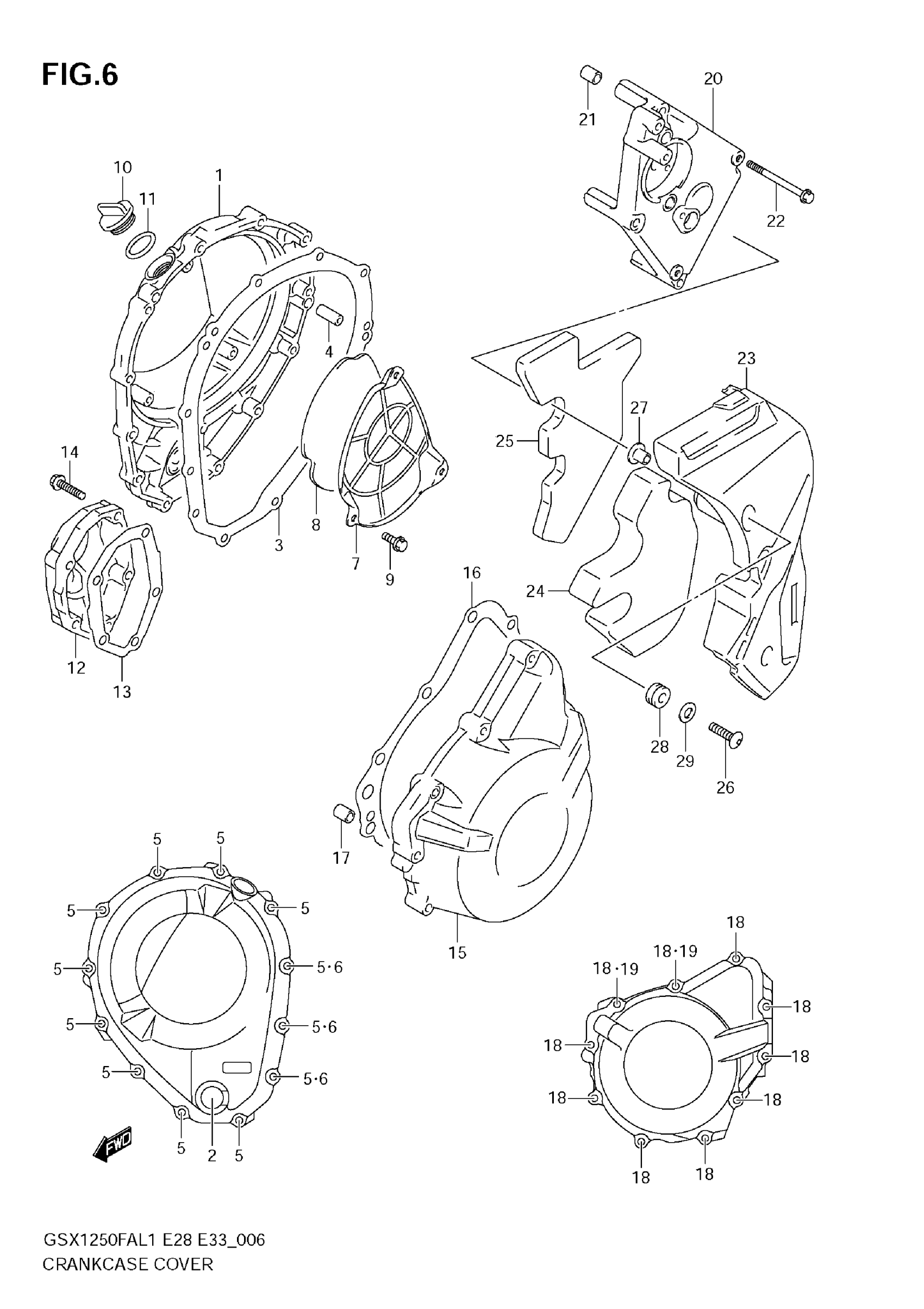

Suzuki GSX1250FAL1 (2011) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-18H20

Unavailable

2

LENS, OIL LEVEL CHECK

11971-33210

$18.20

3

GASKET

11482-18H00

$23.07

4

PIN

04211-09189

$1.65

5

BOLT (6X30)

09103-06213

$2.47

6

GASKET (5.8X13X1.2)

09168-06023

$2.35

7

PLATE, CLUTCH COVER

11342-18H00

Unavailable

8

DAMPER

11343-18H00

Unavailable

9

BOLT

01550-0612A

$1.97

10

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

11

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

12

COVER, CRANKSHAFT RH

11381-18H20

$122.58

13

GASKET

11491-18H00

$5.38

14

BOLT (6X30)

09103-06213

$2.47

15

COVER, MAGNETO

11351-18H20

$191.90

16

GASKET

11483-18H00

$12.03

17

PIN

04211-09149

$1.65

18

BOLT (6X30)

09103-06213

$2.47

19

GASKET (5.8X13X1.2)

09168-06023

$2.35

20

COVER, ENGINE SPROCKET INNER

11371-18H00

$112.37

21

PIN

04211-09149

$1.65

22

BOLT

01547-0660A

$2.82

23

COVER, ENGINE SPROCKET OUTER

11361-46H00

Unavailable

24

CUSHION, NO.1

11362-46H00

Unavailable

25

CUSHION, NO.2

11363-46H00

Unavailable

26

SCREW (6X25)

09139-06057

$2.80

27

WASHER

09169-06062

$2.50

28

CUSHION

09320-09016

$1.97

29

WASHER (6.5X16X1.2)

09160-06019

$1.49
