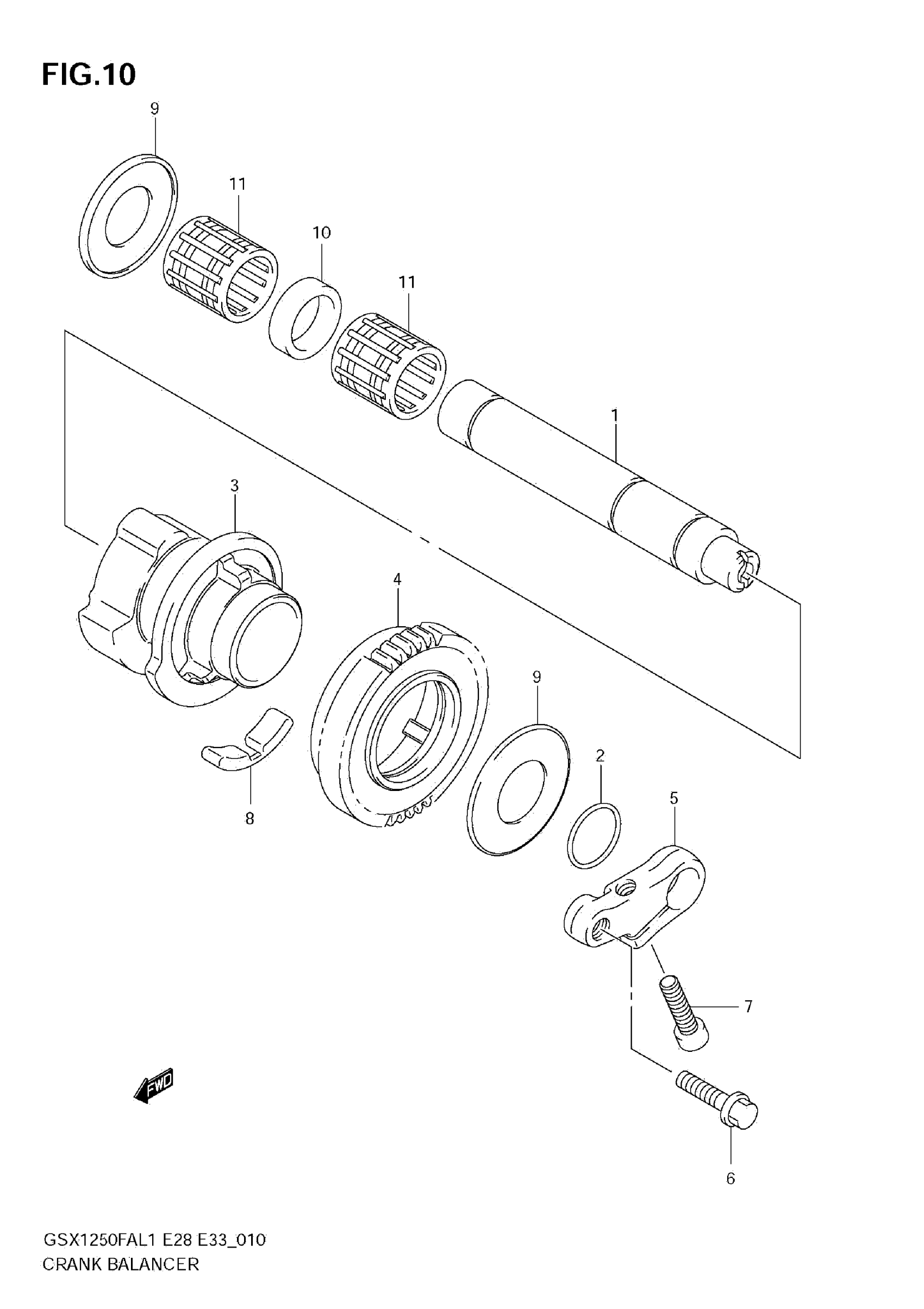

Suzuki GSX1250FAL1 (2011) CRANK BALANCER Diagram

#

Description
Price

1

SHAFT, CRANK BALANCER

12650-18H00-0F0

Unavailable

2

O RING (D:1.9,ID:16.8)

09280-17007

$5.77

3

BALANCER

12654-18H00-0F0

Unavailable

4

GEAR, CRANK BALANCER

12666-18H00

Unavailable

5

ARM,BALANCER SHAFT This part replaces 12681-26D01.

12681-26D02

$73.42

6

BOLT (6X20)

09103-06286

$2.20

7

BOLT

07130-0620A

$2.50

8

DAMPER, CRANK BALANCER

12686-18H00

Unavailable

9

WASHER

09169-21001

$9.53

10

SPACER (19X26X8.6)

09180-19014

Unavailable

11

BEARING (19X26X25.2)

09263-19016

Unavailable
