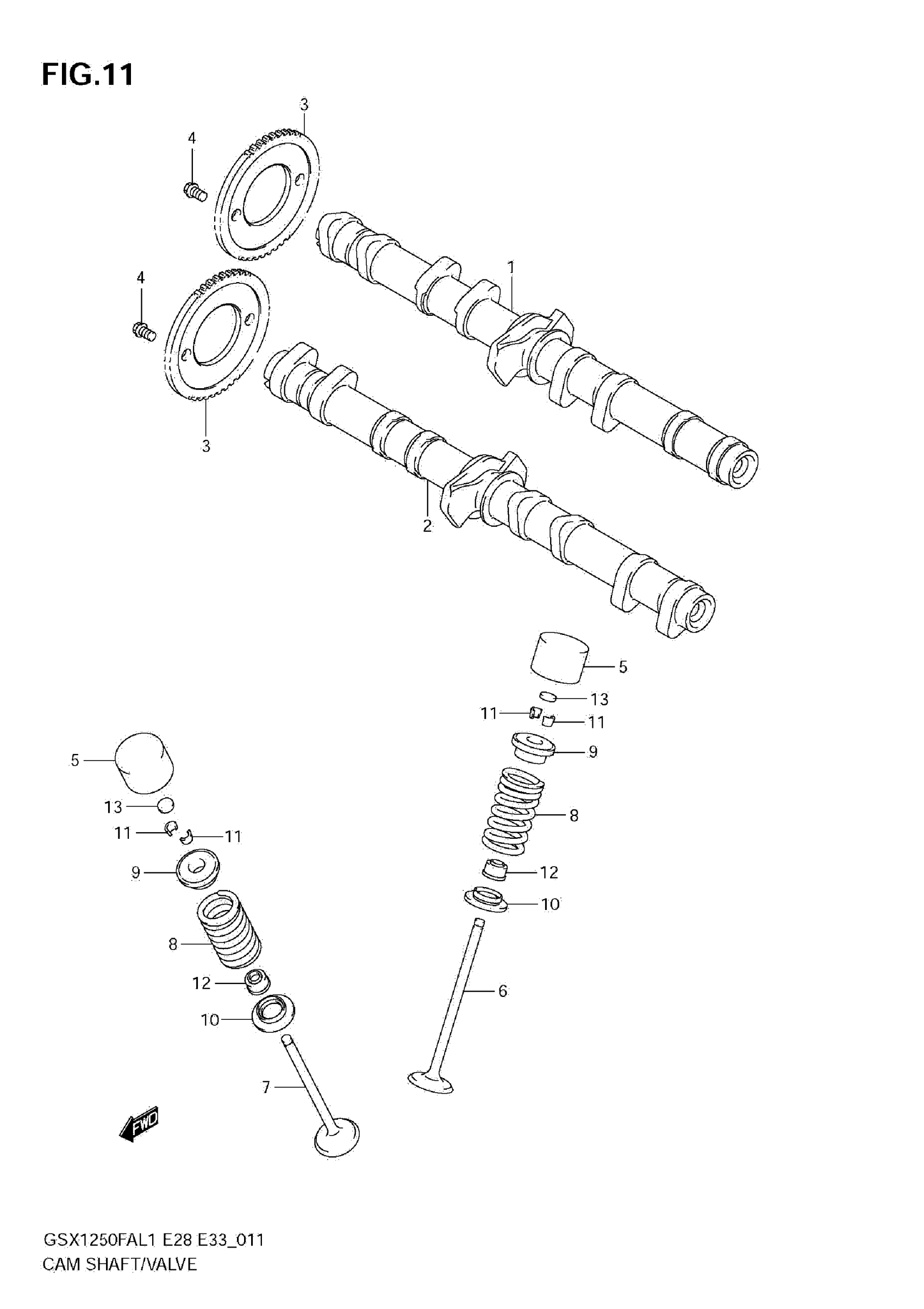

Suzuki GSX1250FAL1 (2011) CAM SHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT, INTAKE

12710-18H00

Unavailable

2

CAMSHAFT, EXHAUST

12720-18H00

Unavailable

3

SPROCKET

12741-17H10

$113.53

4

BOLT (7X11)

09103-07001

$2.43

5

TAPPET This part replaces 12891-18H00.

12891-47H00

$68.43

6

VALVE,INTAKE

12911-18H00

$46.80

7

VALVE, EXHAUST

12912-46E00

Unavailable

8

SPRING, VALVE

12921-18H00

Unavailable

9

RETAINER,VALVE SPRING

12931-17E01

$16.13

10

SEAT,VALVE SPRING

12933-17E00

$6.89

11

COTTER, VALVE

12932-32C00

$2.03

12

OIL SEAL (4.5X10X8)

09289-04002

$6.49

13

SHIM, TAPPET (T:1.20)

12892-05C00-120

$11.60

13

SHIM, TAPPET (T:1.25)

12892-05C00-125

$11.83

13

SHIM, TAPPET (T:1.30)

12892-05C00-130

$10.06

13

SHIM, TAPPET (T:1.35)

12892-05C00-135

$10.06

13

SHIM, TAPPET (T:1.40)

12892-05C00-140

$11.83

13

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.87

13

SHIM, TAPPET (T:1.50)

12892-05C00-150

$11.83

13

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.69

13

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.69

13

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.69

13

SHIM, TAPPET (T:1.70)

12892-05C00-170

$11.60

13

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.87

13

SHIM, TAPPET (T:1.80)

12892-05C00-180

$11.38

13

SHIM, TAPPET (T:1.85)

12892-05C00-185

$11.83

13

SHIM, TAPPET (T:1.90)

12892-05C00-190

$11.83

13

SHIM, TAPPET (T:1.95)

12892-05C00-195

$11.83

13

SHIM, TAPPET (T:2.00)

12892-05C00-200

$11.60

13

SHIM, TAPPET (T:2.05)

12892-05C00-205

$11.83

13

SHIM, TAPPET (T:2.10)

12892-05C00-210

$11.83

13

SHIM, TAPPET (T:2.15)

12892-05C00-215

$11.83

13

SHIM, TAPPET (T:2.20)

12892-05C00-220

$11.83

14

SHIM SET, TAPPET | OPT NOT ILLUSTRATED

12800-05830

$1,211.58

15

CASE, TAPPET SHIM | OPT NOT ILLUSTRATED

99000-69491

Unavailable
