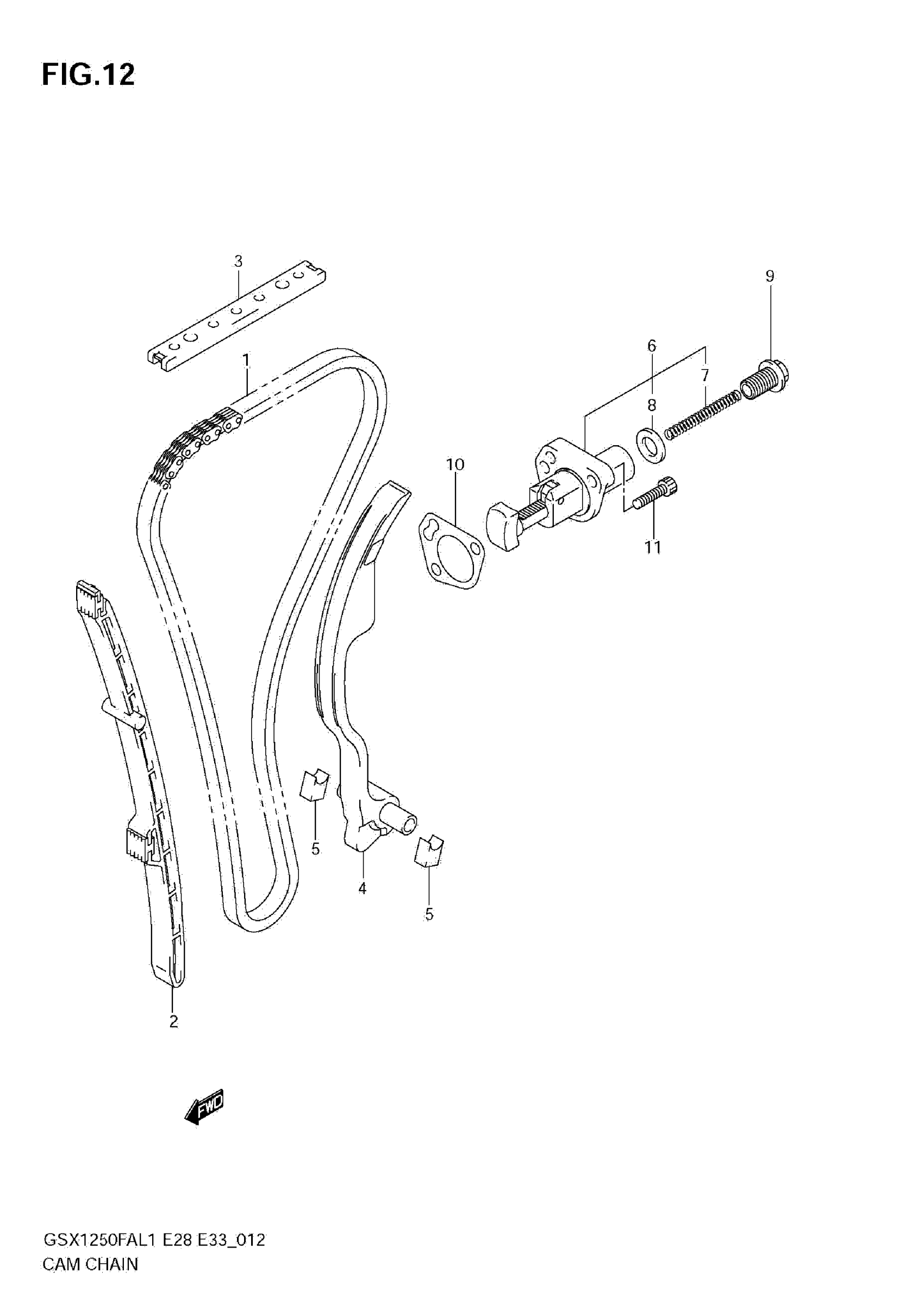

Suzuki GSX1250FAL1 (2011) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE

12760-18H00

Unavailable

2

GUIDE,CAM CHAIN This part replaces 12771-18H00.

12771-18H01

$31.70

3

GUIDE,CAM CHAIN This part replaces 12782-18H00.

12782-18H01

$35.23

4

TENSIONER, CAM CHAIN

12810-18H00

Unavailable

5

CUSHION

12814-34200

$5.58

6

ADJUSTER ASSY, TENSIONER

12834-48G00

$186.82

7

SPRING

12831-35F00

$6.87

8

GASKET

12837-24F10

$4.78

9

PLUG

12833-17G00

$7.87

10

GASKET, ADJUSTER

12837-27G00

$4.72

11

BOLT (6X25)

07130-0625A

$2.62
