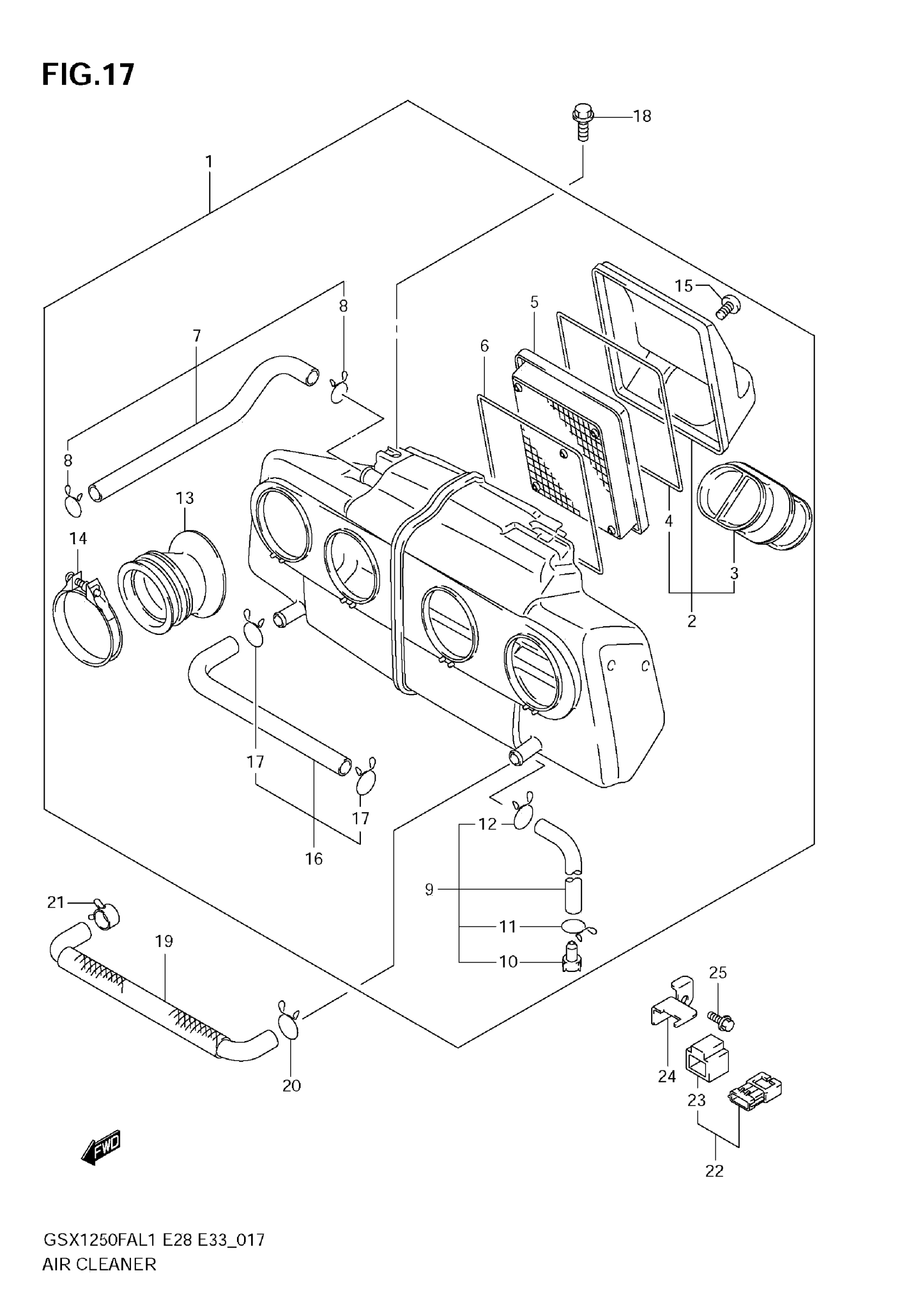

Suzuki GSX1250FAL1 (2011) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI This part replaces 13700-18H11.

13700-18H13

$279.83

2

CAP,AIR CLEANER This part replaces 13740-18H00.

13740-18H01

$58.07

3

TUBE, INLET

13891-18H00

Unavailable

4

GASKET, AIR CLEANER CAP

13746-18H00

$13.28

5

FILTER, AIR

13780-18H00

$41.92

6

GASKET, CASE

13746-18H00

$13.28

7

TUBE, BREATHER

13850-18H00

Unavailable

8

CLIP

09401-15101

$2.26

9

TUBE, DRAIN

13870-18H00

Unavailable

10

STOPPER

13877-00190

$5.32

11

CLIP

09401-15101

$2.26

12

CLIP

09401-13409

$2.12

13

TUBE, OUTLET

13881-18H00

Unavailable

14

.CLAMP,OUTLET TUBE

13826-44H01

Unavailable

15

SCREW

02142-0512A

$1.49

16

TUBE

13910-18H00

Unavailable

17

CLIP

09401-15101

$2.26

18

BOLT

01550-0612A

$1.97

19

HOSE, ISC VALVE

13697-18H00

Unavailable

20

CLIP

09401-15101

$2.26

21

CLIP

09401-17401

$3.08

22

SENSOR, BOOST

15630-29G20

$283.88

23

COVER

15625-29G10

Unavailable

24

BRACKET

13166-18H00

Unavailable

25

BOLT

01550-0612A

$1.97
