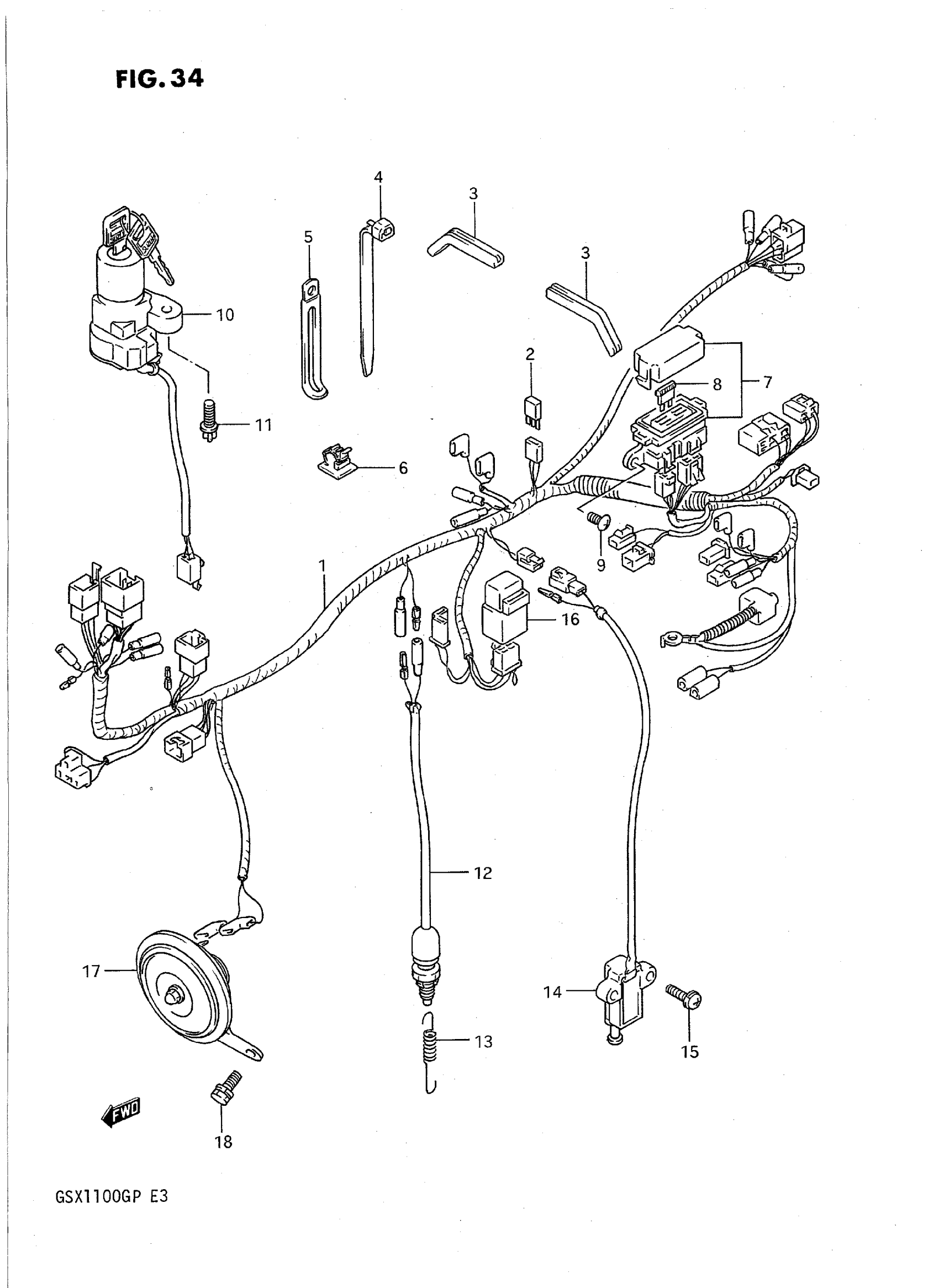

Suzuki GSX1100GP (1993) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL M This part replaces 36610-26D30.

36610-26D31

Unavailable

1

HARNESS, WIRING | MODEL N/P; Includes Item(s) 2

36610-26D31

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

PROTECTOR

36920-26D00

Unavailable

4

CLAMP(L:80) This part replaces 09404-06405.

09404-06036

$1.74

4

CLAMP This part replaces 09404-08404.

09404-08420

$3.16

5

CLAMP

09407-14403

$2.26

5

CLAMP

09407-18402

$2.19

5

CLAMP

09407-22404

Unavailable

6

CLIP

09408-00098

Unavailable

7

FUSE BOX ASSY | Includes Item(s) 8 - 8 This part replaces 36740-34C01.

36740-10D10

Unavailable

8

FUSE (10A)

09481-10101

$2.07

8

.FUSE (25A) This part replaces 09481-25101.

09481-25103

Unavailable

9

SCREW This part replaces 02142-06126.

02142-0612A

$1.49

10

LOCK ASSY, STEERING | MODEL M/N This part replaces 37100-26D00.

37100-26D03

$194.77

10

LOCK ASSY, STEERING | MODEL P This part replaces 37100-26D01.

37100-26D03

$194.77

11

BOLT

09139-06026

$2.50

12

SWITCH ASSY, STOP LAMP

37740-04A10

$23.32

13

SPRING

09443-06012

$3.16

14

SWITCH ASSY,SID This part replaces 37840-06B11.

37840-26X52

$74.31

15

SCREW

02112-36305

Unavailable

16

RELAY ASSY, SIDE STAND This part replaces 38740-24B10.

38740-24X50

$45.20

17

HORN ASSY

38500-26D00

Unavailable

18

BOLT This part replaces 01134-06125.

01570-0612A

$2.63

19

KEY, BLANK | NOT ILLUSTRATED This part replaces 37146-03A80.

37146-26D10

$49.70
