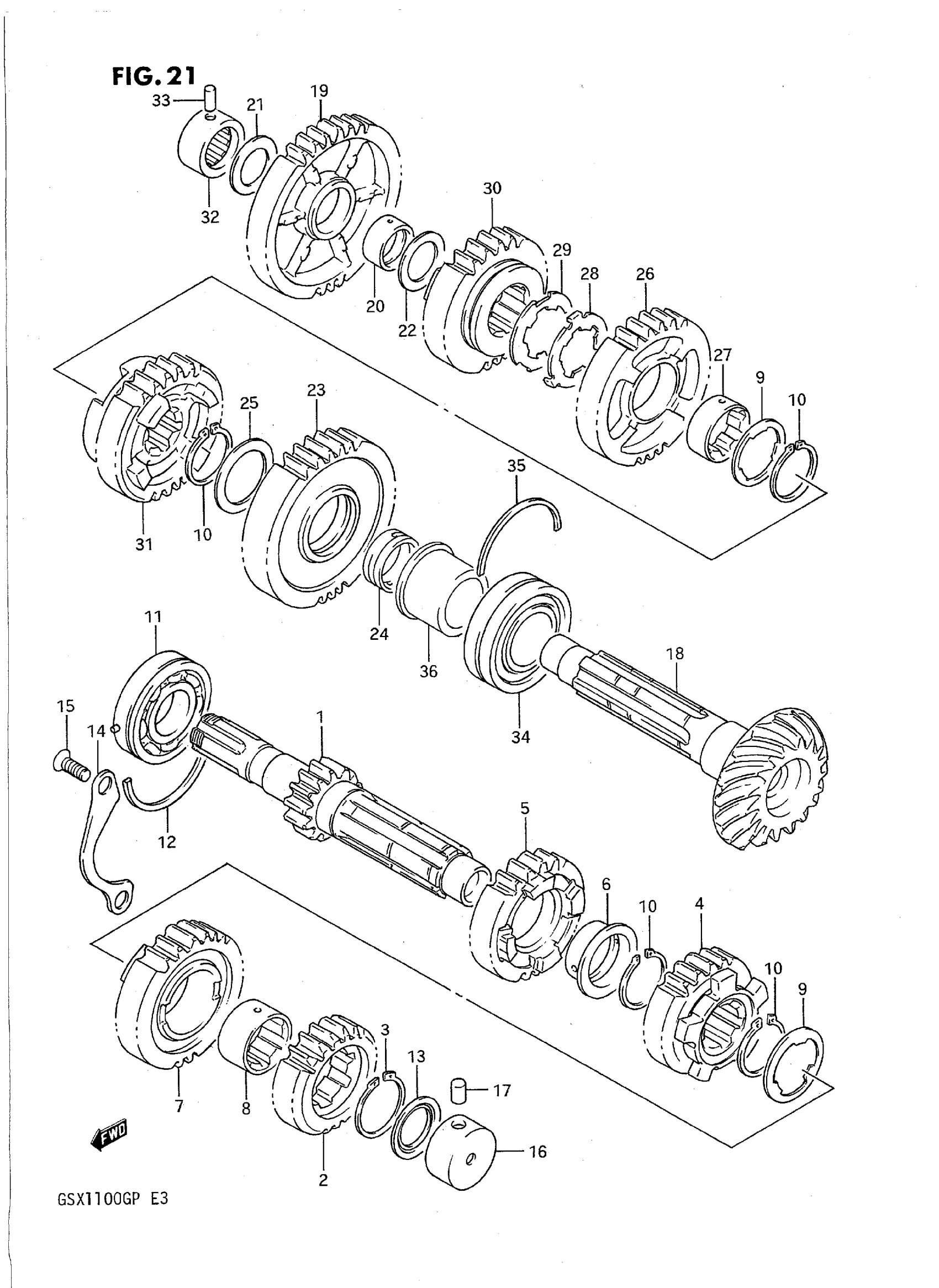

Suzuki GSX1100GP (1993) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 24121-26D01.

24121-26D10

Unavailable

2

GEAR, 2ND DRIVE (NT:19)

24221-26D00

Unavailable

3

CIRCLIP

09380-28008

Unavailable

4

GEAR, 3TH DRIVE (NT:22)

24231-26D02

Unavailable

5

GEAR, 4TH DRIVE (NT:22)

24241-26D00

Unavailable

6

BUSH

09301-28001

$19.93

7

GEAR, 5TH DRIVE (NT:27)

24251-26D10

Unavailable

8

BUSH

24332-24A00

Unavailable

9

WASHER

09167-28001

$4.60

10

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.19

11

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

12

C RING This part replaces 09390-62006.

09390-62012

$7.31

13

OIL SEAL

09285-20006

$6.51

14

HOLDER, BEARING

24741-27A00

$10.07

15

SCREW

02122-06167

$1.49

16

BEARING(20X34X1 This part replaces 09263-20049.

09263-20119

$55.20

17

PIN

04221-07129

$1.86

18

DRIVESHAFT (NT:18) | MODEL M This part replaces 24131-26D02.

24131-26D04

Unavailable

18

DRIVESHAFT (NT:18) | MODEL N This part replaces 24131-26D03.

24131-26D04

Unavailable

18

DRIVESHAFT (NT:18) | MODEL P

24131-26D04

Unavailable

19

GEAR, 1ST DRIVEN (NT:38)

24311-26D00

Unavailable

20

BUSH, 1ST DRIVEN This part replaces 09300-22005.

24312-02F00

$28.15

21

WASHER, RH

08211-20341

$2.80

22

WASHER, LH

08211-22341

$3.85

23

GEAR, 2ND DRIVEN (NT:38)

24321-26D01

Unavailable

24

BUSH

09300-28002

$18.70

25

.SHIM (28X38X1) This part replaces 08211-28381.

09181-28195

$4.77

26

GEAR, 3RD DRIVEN (NT:31)

24331-26D00

Unavailable

27

BUSH

24332-49000

$17.68

28

WASHER, LOCK

09169-28002

Unavailable

29

WASHER, LOCK

09167-28002

$4.77

30

GEAR, 4TH DRIVEN (NT:26)

24341-26D00

Unavailable

31

GEAR, 5TH DRIVEN (NT:26)

24351-26D10

Unavailable

32

BEARING, RH

09263-20040

$55.20

33

PIN (L:20)

04221-07209

$2.30

34

BEARING, LH

09267-40002

Unavailable

35

C RING

09390-80004

$11.52

36

SPACER, DRIVE SHAFT BEARING

24132-26D00

Unavailable
