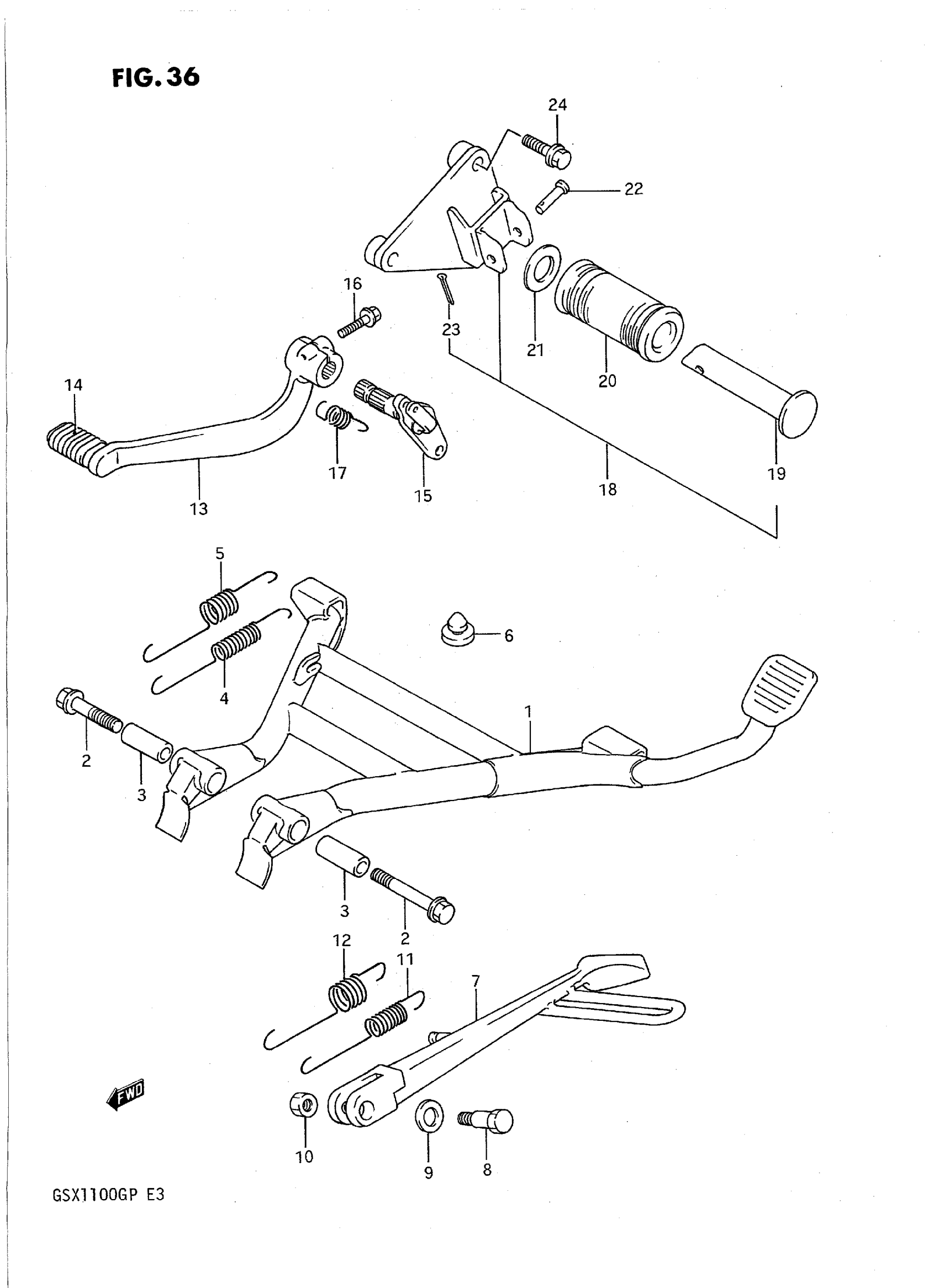

Suzuki GSX1100GP (1993) STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, CENTER | MODEL M/N This part replaces 42100-26D00.

42100-26D01

Unavailable

1

STAND, CENTER | MODEL P

42100-26D01

Unavailable

2

BOLT

09103-10185

Unavailable

3

SPACER

09180-10040

$2.56

4

SPRING, INNER

09443-14059

$9.73

5

SPRING, OUTER

09443-22013

$9.17

6

CUSHION

09321-10011

$2.91

7

STAND, PROP

42310-26D00

Unavailable

8

BOLT

09111-10036

$4.82

9

SHIM

08221-12224

$1.96

10

NUT This part replaces 08310-22105.

09140-10043

$2.68

11

SPRING, INNER

09443-15046

$8.32

12

SPRING, OUTER

09443-22017

$7.74

13

PEDAL, BRAKE

43110-26D00

Unavailable

14

RUBBER

25652-49300

$5.07

15

ARM, BRAKE PEDAL | MODEL M/N This part replaces 43120-26D00.

43120-26D01

Unavailable

15

ARM, BRAKE PEDAL | MODEL P

43120-26D01

Unavailable

16

BOLT This part replaces 01517-06257.

01550-06257

$2.30

17

SPRING, RETURN

09443-15043

Unavailable

18

GRIP SET, CENTER STAND | OPT; Includes Item(s) 19 - 24

43900-26820

Unavailable

19

BAR | OPT

43610-44000

Unavailable

20

RUBBER | OPT

43995-45C00

Unavailable

21

WASHER | OPT This part replaces 09160-19006.

09160-19024

$2.65

22

PIN | OPT

09200-06010

$1.72

23

.COTTER PIN | OPT This part replaces 04111-20158.

04111-2015A

$1.49

24

BOLT | OPT This part replaces 01517-08357.

01550-08357

$3.49
