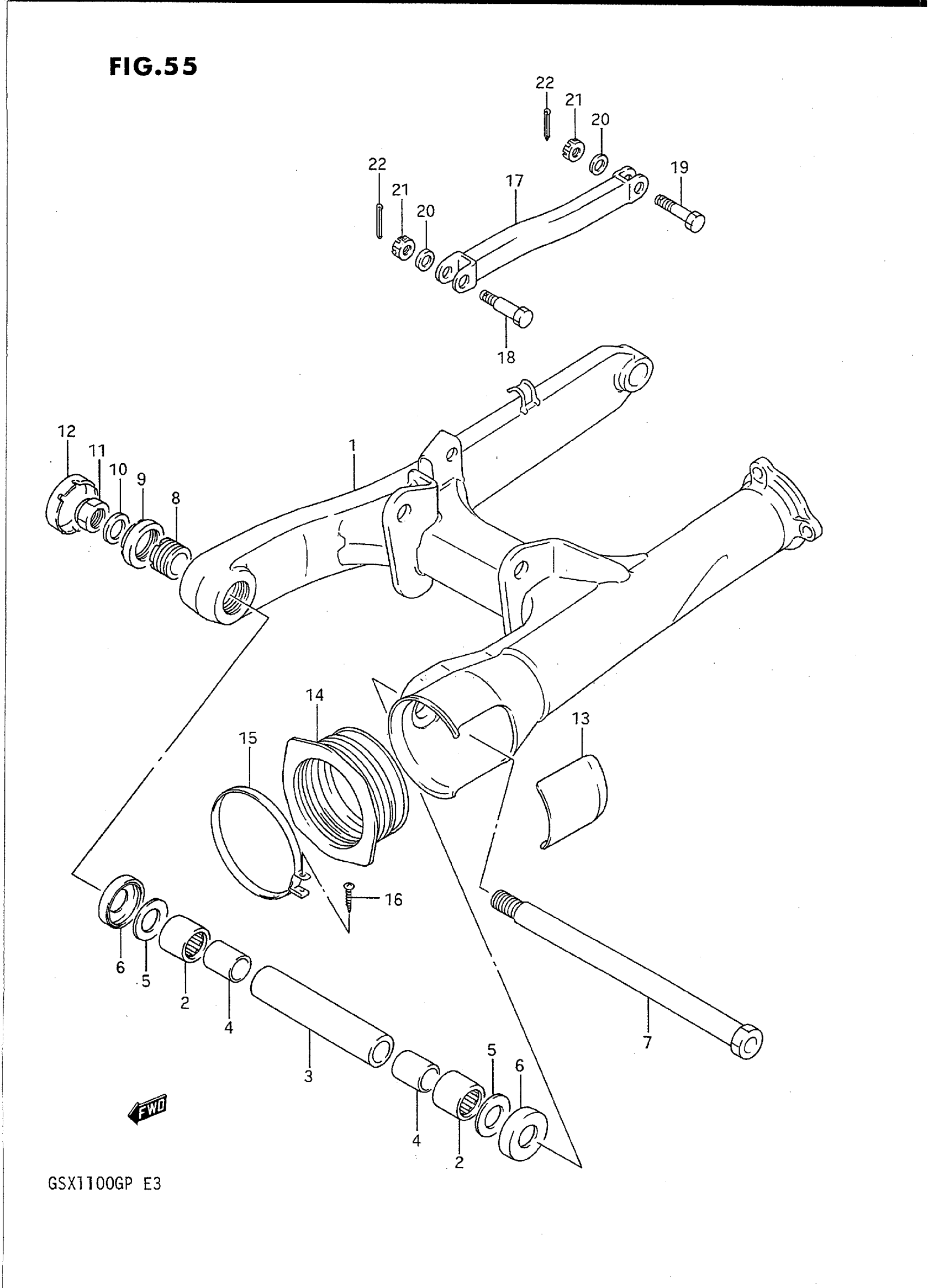

Suzuki GSX1100GP (1993) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 61100-26D00-019.

61100-26D01-019

Unavailable

2

BEARING

09263-25024

$25.92

3

SPACER, PIVOT CENTER

09180-20111

Unavailable

4

SPACER, PIVOT

61251-17C00

$43.37

5

WASHER

08211-20381

$4.10

6

COVER,RR SWGARM This part replaces 61262-10D00.

61262-10D01

Unavailable

7

SHAFT, PIVOT

61211-26D00

Unavailable

8

BOLT, PIVOT

61213-22D00

Unavailable

9

NUT, PIVOT BOLT This part replaces 61214-40C30.

61214-40C31

$56.90

10

WASHER This part replaces 09160-18026.

09160-18030

$2.56

11

NUT

09159-18004

$24.75

12

CAP, PIVOT RH | MODEL M/N

61222-43400

$5.24

13

COVER, PIVOT LH (BLACK)

61230-26D01-019

Unavailable

14

BOOT,PROPELLER This part replaces 61372-38B00.

61372-38B01

$16.55

15

CLAMP This part replaces 09402-92306.

09402-92306-XC0

$5.57

16

SCREW This part replaces 03211-04255.

03211-0425B

$2.70

17

TORQIELINK, REAR

64310-26D00

Unavailable

18

BOLT, FRONT

09111-10016

Unavailable

19

BOLT, REAR

09101-10036

$5.28

20

WASHER This part replaces 09160-10069.

09160-10005

$1.87

21

NUT This part replaces 08314-41108.

08314-4010B

$2.50

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
