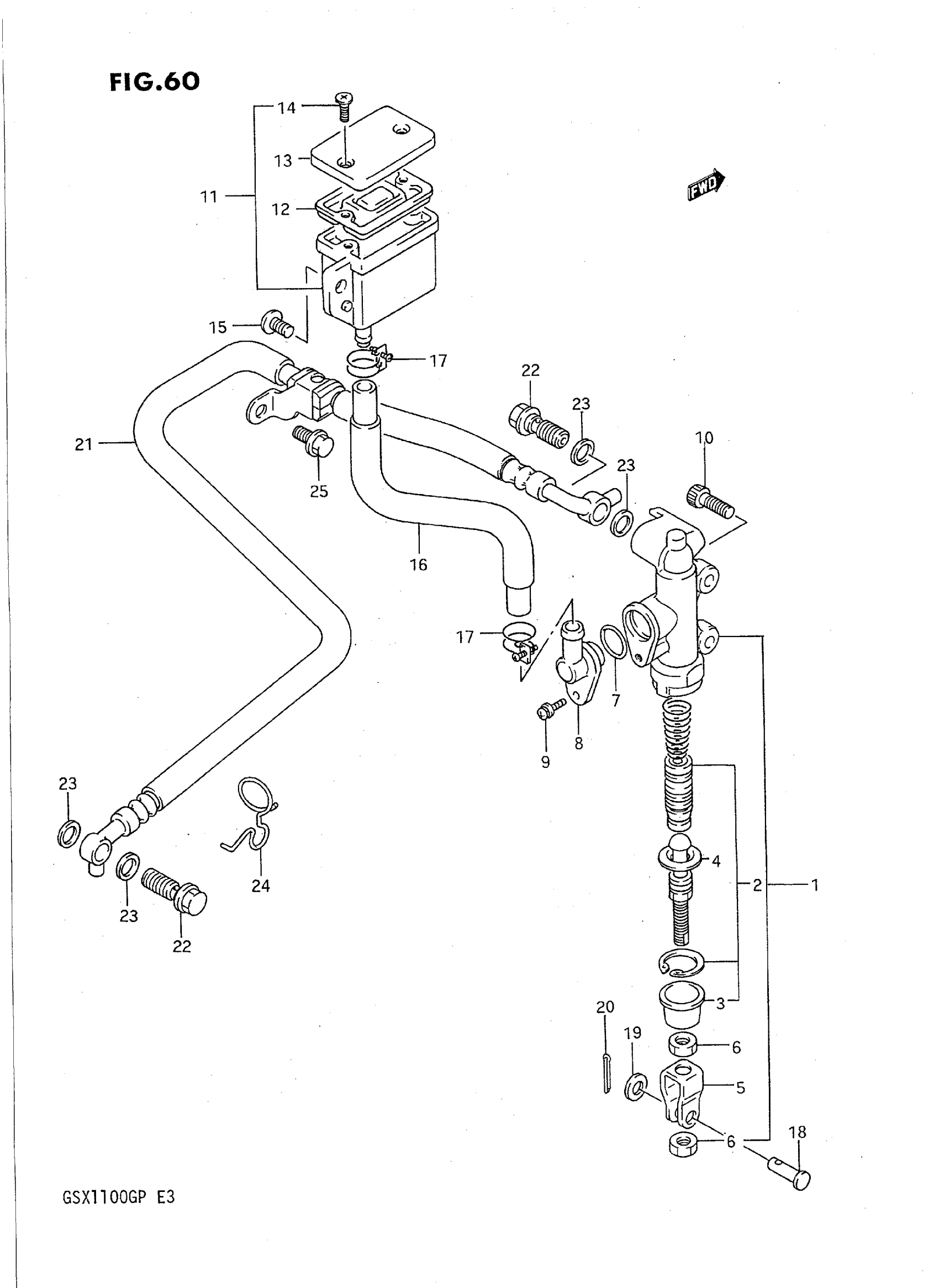

Suzuki GSX1100GP (1993) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-26D00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

ROD, PUSH

69670-00B21

$29.25

5

YOKE

69692-27A30

$13.81

6

NUT

69693-05A00

$1.96

7

O RING

69686-34200

$2.93

8

CONNECTOR

69672-05A00

$5.56

9

.SCREW This part replaces 02112-74125.

02112-7412A

$2.12

10

BOLT, FRONT BRG HOUSING This part replaces 07110-06205.

07130-0620B

$3.05

11

TANK ASSY, REAR RESERVOIR | MODEL M/N->69740-24A01 This part replaces 69740-24A00.

69740-24A01

Unavailable

11

TANK ASSY, REAR RESERVOIR | MODEL P; Includes Item(s) 12 - 14

69740-24A01

Unavailable

12

DIAPHRAGM

59667-04700

$9.78

13

CAP | MODEL M/N

69669-24A01

$15.10

13

CAP | MODEL P

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

SCREW

02142-06127

$1.49

16

HOSE, TANK

69731-26D00

Unavailable

17

CLAMP, HOSE

09400-15302

Unavailable

18

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

19

WASHER This part replaces 08322-21067.

08322-01067

$2.13

20

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

21

HOSE, REAR BRAKE | MODEL M->69480-26D01 This part replaces 69480-26D00.

69480-26D01

Unavailable

21

HOSE, REAR BRAKE | MODEL N/P

69480-26D01

Unavailable

22

BOLT

09360-10017

$3.42

23

WASHER (10X15X1.5)

09161-10009

$1.84

24

GUIDE, BRAKE HOSE

69243-19C00

Unavailable

25

BOLT This part replaces 01517-06105.

01550-0610A

$1.97
