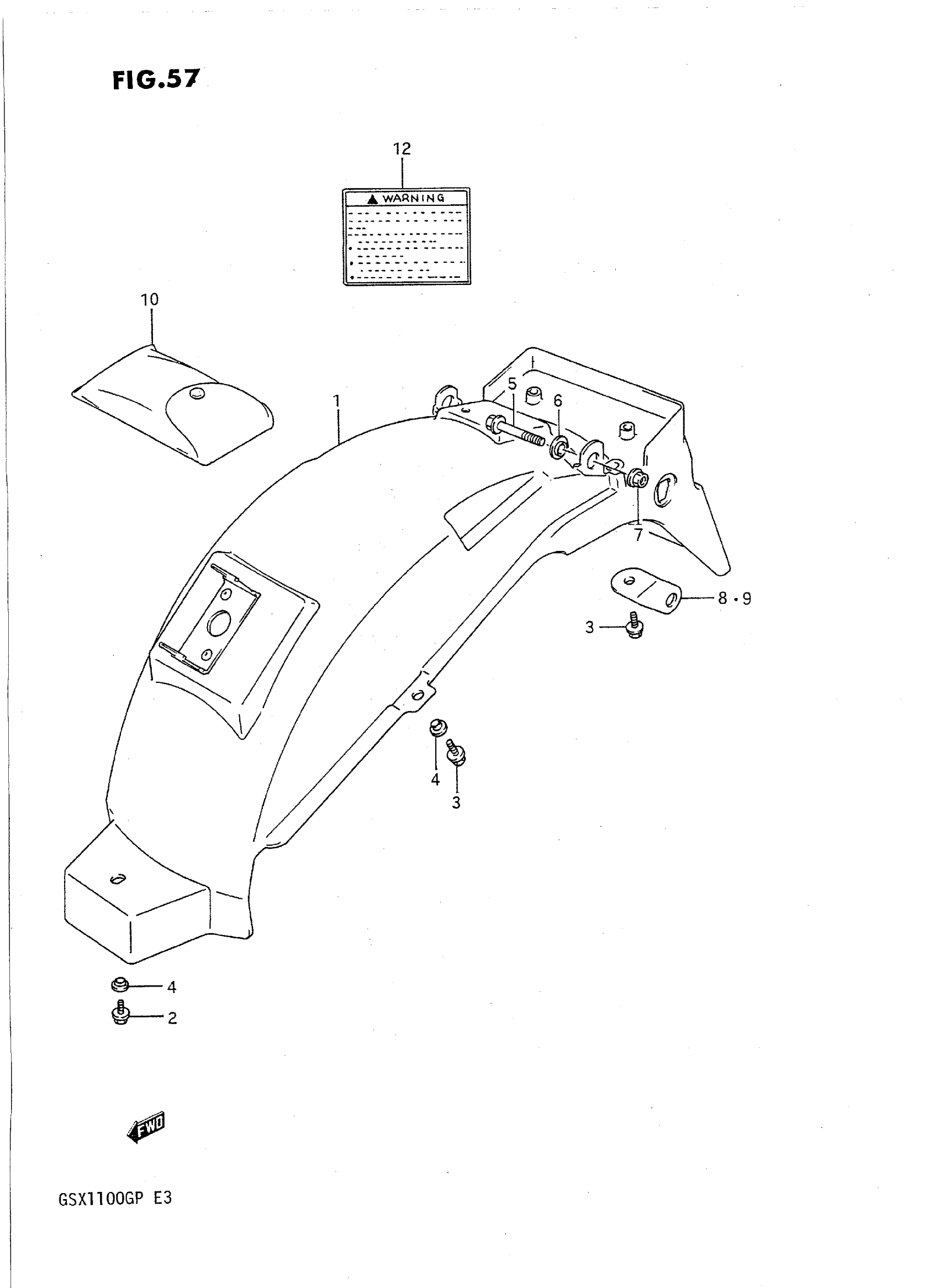

Suzuki GSX1100GP (1993) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63110-26D00.

63110-26D01

Unavailable

2

BOLT This part replaces 01517-06128.

01550-06127

$2.30

3

BOLT This part replaces 01517-06167.

01550-06167

$2.30

4

WASHER

09169-06037

$2.45

5

BOLT This part replaces 01517-08558.

01550-08557

$3.74

6

WASHER

09169-08045

$2.23

7

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

8

REINFORCEMENT, LAMP RH

35608-26D00

Unavailable

9

REINFORCEMENT, LAMP LH

35609-26D00

Unavailable

10

TOOL ASSY This part replaces 09800-20043.

09800-21073

$96.88

12

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

13

LABEL, TIRE AIR PRESSURE | WITH OUT DRAWING

68332-26D00

Unavailable
