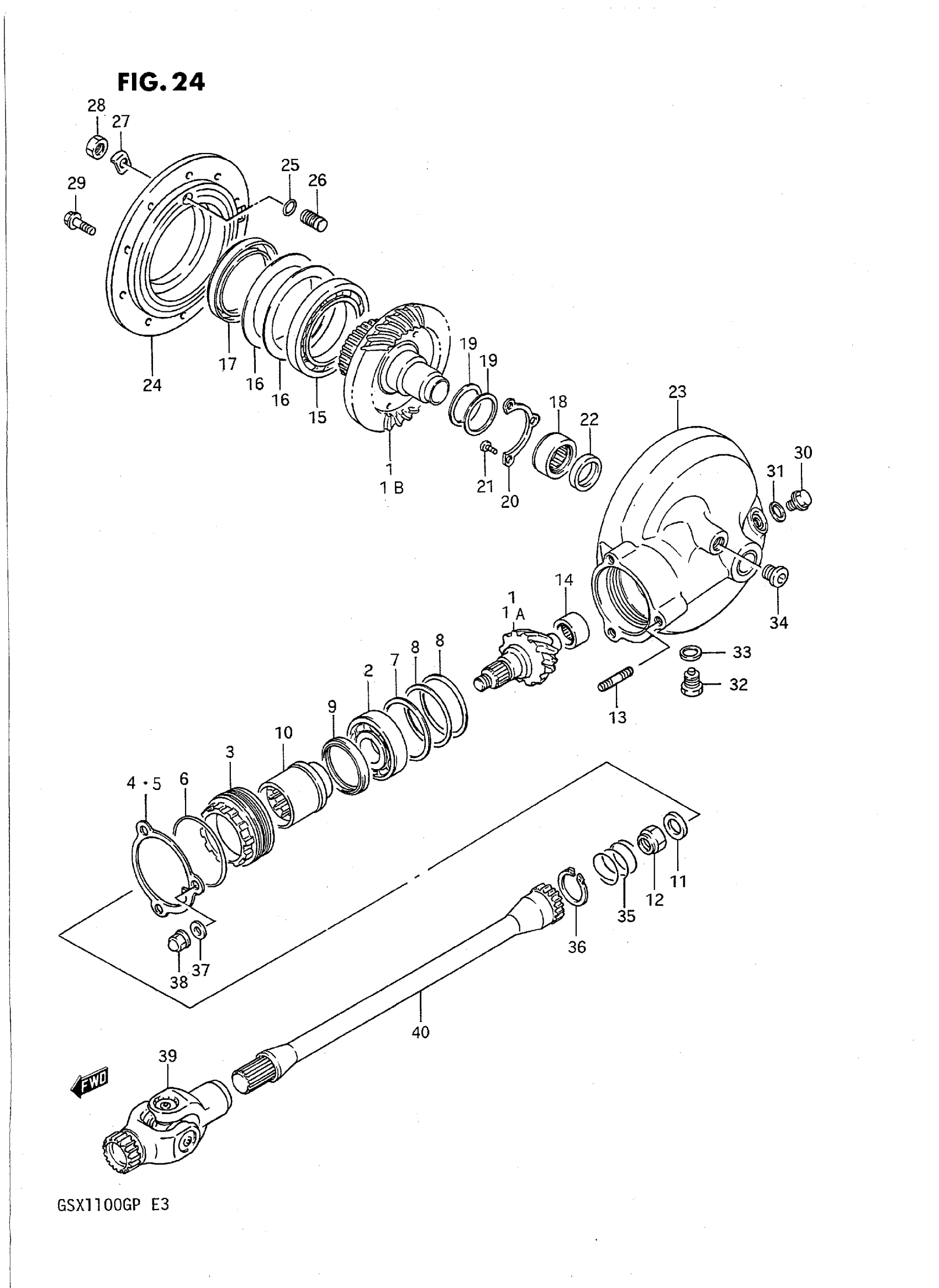

Suzuki GSX1100GP (1993) PROPELLER SHAFT - FINAL DRIVE GEAR Diagram

#

Description
Price

GEAR & CASE SET, FINAL BEVEL | Includes Item(s) 1 - 33

27300-26823

Unavailable

1

GEAR, FINAL DRIVE BEVEL | NT:12/32 This part replaces 27300-24822.

27311-24A03

Unavailable

1A

GEAR, FINAL DRIVE BEVEL

27311-24A03

Unavailable

1B

GEAR, FINAL DRIVEN BEVEL

27320-24A03

Unavailable

2

BEARING

09262-28023

$138.97

3

STOPPER, BEARING

27312-24A02

$83.62

4

PLATE, STOPPER

27313-24A00

Unavailable

5

PLATE, STOPPER

27313-24A10

Unavailable

6

O RING (D:3.1,ID:63.9)

09280-64003

$5.09

7

WASHER

09160-54001

Unavailable

8

SHIM (T:0.30)

27445-24A01-030

Unavailable

8

SHIM (T:0.35)

27445-24A01-035

Unavailable

8

SHIM (T:0.40)

27445-24A01-040

Unavailable

8

SHIM (T:0.50)

27445-24A01-050

Unavailable

8

SHIM (T:0.60)

27445-24A01-060

Unavailable

9

OIL SEAL (47X58X7)

09283-47002

$18.68

10

COUPLING, FINAL DRIVE GEAR

27172-24A00

$67.48

11

WASHER

09160-16029

$6.90

12

NUT

09159-16003

$4.33

13

BOLT,STUD This part replaces 01421-10258.

01421-1025B

$2.90

14

BEARING (20X34X18)

09263-20062

$51.07

15

BEARING, RH

09262-70001

$153.17

16

SHIM (T:0.35)

27327-45100

Unavailable

16

SHIM (T:0.40)

27327-45102

Unavailable

16

SHIM (T:0.50)

27327-45103

Unavailable

16

SHIM (T:0.60)

27327-45104

Unavailable

17

OIL SEAL

09289-70001

$46.71

18

BEARING, LH

09263-35004

$79.53

19

SHIM (T:1.05)

27326-45102

Unavailable

19

SHIM (T:1.10)

27326-45103

Unavailable

19

SHIM (T:1.20)

27326-45101

Unavailable

19

SHIM (T:1.25)

27326-45100

Unavailable

19

SHIM (T:1.35)

27326-45104

Unavailable

19

SHIM (T:1.40)

27326-45100-140

Unavailable

19

SHIM (T:1.45)

27326-45100-145

Unavailable

19

SHIM (T:1.50)

27326-45100-150

Unavailable

20

HOLDER, BEARING

27329-45100

Unavailable

21

SCREW This part replaces 02112-06128.

02112-06127

$1.83

22

OIL SEAL (30X42X7)

09283-30028

$8.79

23

CASE, FINAL GEAR

27450-26D00

Unavailable

24

CASE, FINAL GEAR BEARING

27460-24A01

Unavailable

25

O RING (ID:1.9,D:9.8)

09280-10016

$3.04

26

BOLT

27481-24A00

Unavailable

27

LOCK WASHER

09169-12003

Unavailable

28

NUT, FIXED DRIVE FACE This part replaces 08310-22127.

09140-12039

$2.80

29

BOLT This part replaces 01517-08307.

01550-08307

$3.24

30

PLUG This part replaces 09247-14012.

09247-14026

$3.38

31

GASKET

09168-14004

$1.69

32

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

$5.58

33

GASKET

09168-14004

$1.69

34

PLUG

09248-16008

$6.22

35

SPRING

09440-30008

$4.03

36

CICLIP

09381-40003

$4.19

37

LOCK WASHER

09164-10008

$1.73

38

NUT

09159-10026

$5.67

39

YOKE, UNIVERSAL JOINT

27100-26D00

Unavailable

40

SHAFT, PROPELLE This part replaces 27151-26D00.

27151-26D01

Unavailable
