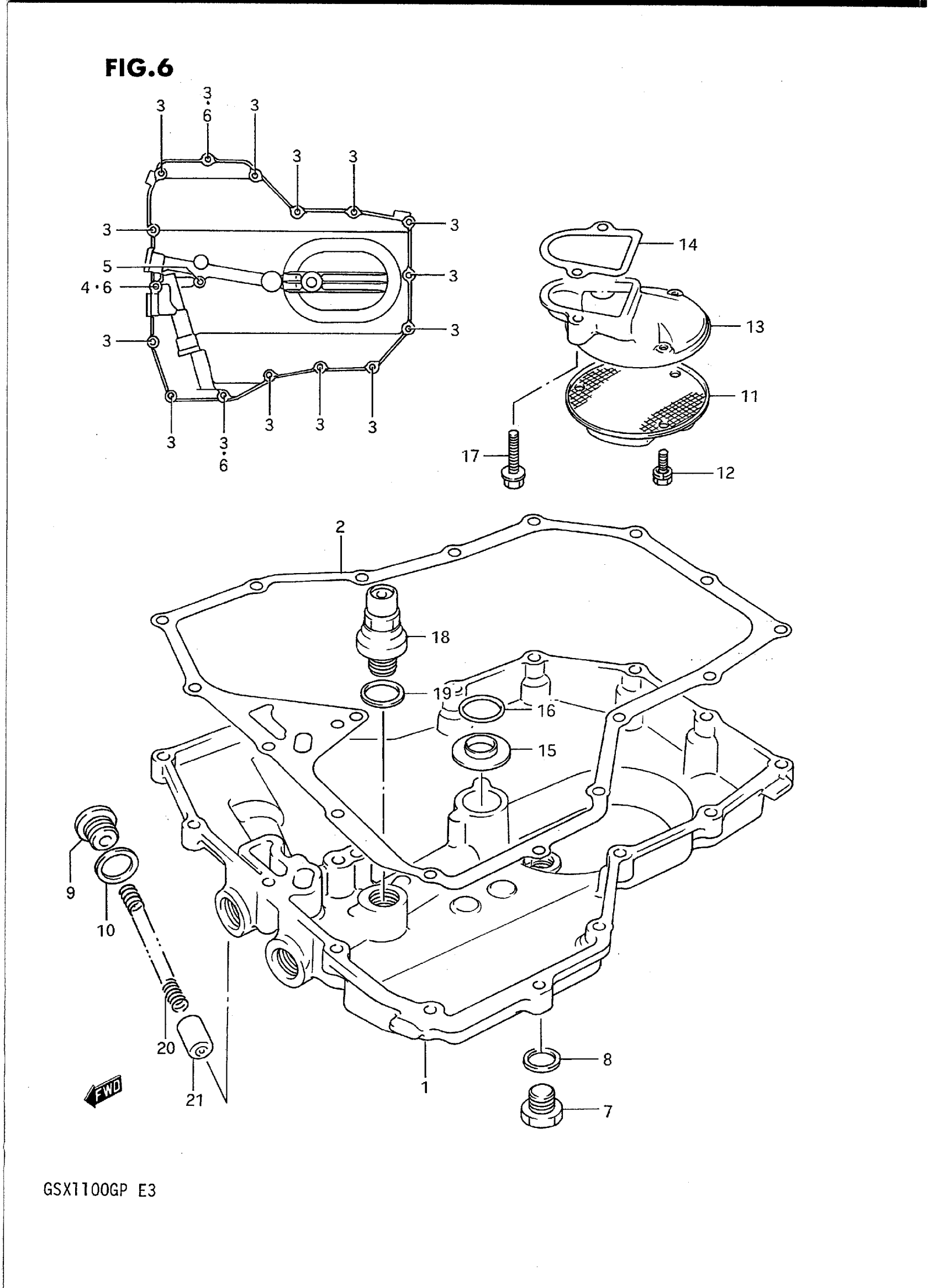

Suzuki GSX1100GP (1993) OIL PAN Diagram

#

Description
Price

1

PAN, OIL | MODEL M/N This part replaces 11511-26D00.

11511-26D10

Unavailable

1

PAN, OIL | MODEL P

11511-26D10

Unavailable

2

GASKET, OIL PAN (NA)

11489-26D01

Unavailable

3

BOLT

01547-06257

$2.03

4

BOLT

01547-06407

$2.32

5

BOLT

01547-06507

$2.41

6

GASKET

09168-06024

$2.20

7

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

8

GASKET

09168-14004

$1.83

9

PLUG, PLUNGER

09248-16012

$4.64

10

GASKET

09168-16002

$1.91

11

STRAINER, ENGINE OIL

16520-09301

$15.42

12

BOLT This part replaces 01137-06128.

01570-06127

$2.50

13

PROTECTOR, STRAINER

16525-48B01

Unavailable

14

GASKET, OIL STR PROTECTOR This part replaces 16528-27A10.

16528-27A21

$5.78

15

GASKET, OUTLET

16529-27A01

$2.15

16

O RING

09280-18009

$5.83

17

BOLT This part replaces 01517-06257.

01550-06257

$2.30

18

VALVE ASSY, OIL RELIEF This part replaces 16440-17C00.

16440-17C10

$67.28

19

WASHER

09168-16002

$1.91

20

SPRING

09440-09027

Unavailable

21

PLUNGER, OIL CONTROL

16442-34301

Unavailable
