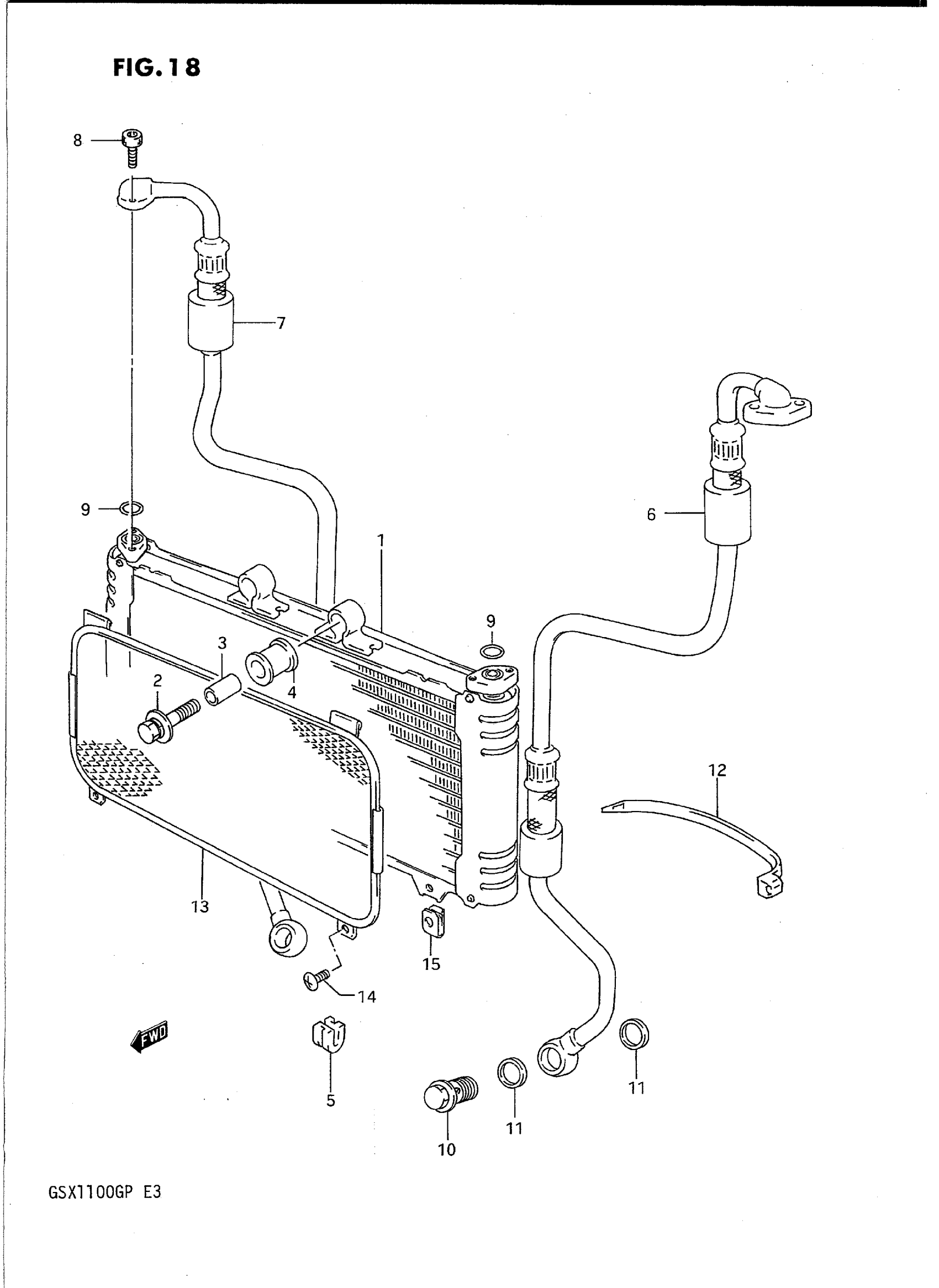

Suzuki GSX1100GP (1993) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL | MODEL M/N This part replaces 16600-26D00.

16600-26D01

Unavailable

1

COOLER ASSY, OIL | MODEL P

16600-26D01

Unavailable

2

BOLT (8X40)

09118-08131

$3.42

3

SPACER This part replaces 09180-08124.

09180-08304

Unavailable

4

CUSHION, NO.1

16629-27A01

Unavailable

5

CUSHION, NO.2

16628-27A00

$2.80

6

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 16460-26D10.

16460-26D12

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 16460-26D11.

16460-26D12

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 16470-26D10.

16470-26D12

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 16470-26D11.

16470-26D12

Unavailable

8

BOLT This part replaces 07110-06165.

07130-0616B

$2.38

9

O RING

09280-12008

$2.77

10

BOLT, UNION

09360-16002

$13.12

11

GASKET (16X22X2)

09168-16003

$1.92

12

CLAMP

09407-25401

$4.21

13

NET, OIL COOLER | MODEL M/N This part replaces 16650-26D00.

16650-26D01

Unavailable

13

NET, OIL COOLER | MODEL P

16650-26D01

Unavailable

14

SCREW This part replaces 02142-05084.

02142-0508A

$1.38

15

NUT This part replaces 09148-05023.

09148-05021

$1.88
