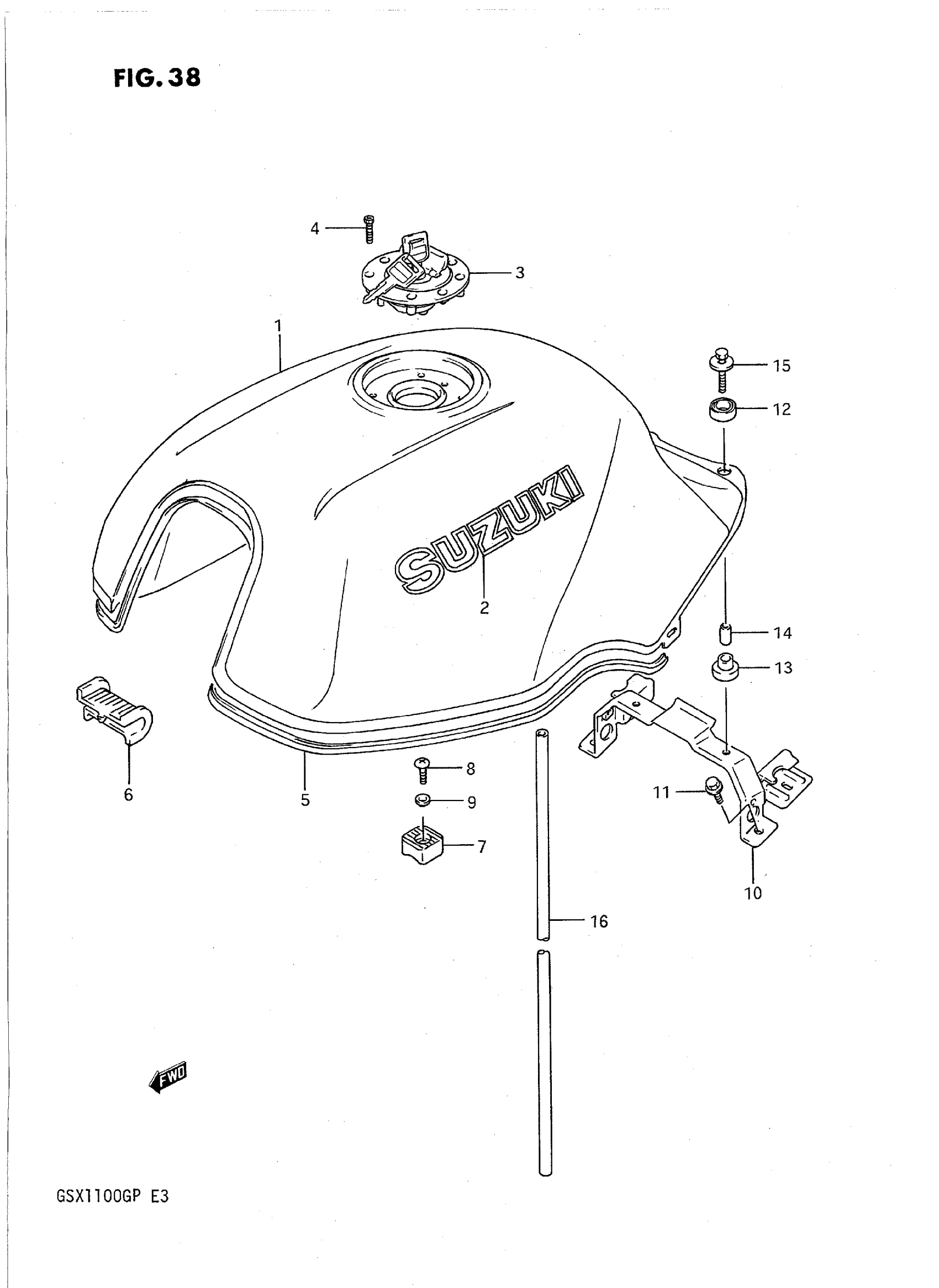

Suzuki GSX1100GP (1993) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-26D30-20F.

44100-26D11-20F

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-26D20-20F.

44110-26D21-Y2D

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-26D30-0FJ.

44110-26D11-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL M This part replaces 44100-26D20-0FJ.

44100-26D21-0FJ

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-26D30-1AC.

44100-26D11-1AC

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL M This part replaces 44100-26D20-1AC.

44100-26D21-1AC

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-26D30-33J.

44110-26D11-YD8

Unavailable

1

SUPERCEEDED BY 44100-26D10-13Z | MODEL N/P This part replaces 44100-26D30-13Z.

44100-26D11-13Z

$381.92

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL M This part replaces 44100-26D20-33J.

44110-26D21-Y2D

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL N/P; Includes Item(s) 2 - 2 This part replaces 44100-26D20-13Z.

44110-26D21-Y2D

Unavailable

2

EMBLEM,FUEL TAN | FOR 20F,0FJ,33J,13Z This part replaces 68131-06C50-23S.

68131-06C50-0RN

Unavailable

2

EMBLEM, FUEL TANK | FOR 1AC

68131-06C50-20H

Unavailable

3

CAP SET,FUEL TA This part replaces 44201-01831.

44201-01833

Unavailable

3

CAP SET, FUEL | CALIFORNIA ONLY This part replaces 44201-01841.

44201-01842

Unavailable

4

BOLT

09106-05017

$2.83

5

MOLDING This part replaces 68241-26D00.

68241-04X50-00B

$27.30

6

CUSHION,FUEL TA This part replaces 44511-32C00.

44511-32C02

$15.78

7

CUSHION, SIDE

44545-26D00

Unavailable

8

SCREW This part replaces 02142-06166.

02142-0616A

$1.49

9

WASHER

09169-06036

Unavailable

10

BRACKET, REAR

44530-26D00

Unavailable

11

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

12

CUSHION, REAR UPPER

09320-14017

$2.35

13

CUSHION, REAR LOWER

09320-10038

$2.61

14

SPACER This part replaces 09180-06072.

09180-06271

$2.35

15

BOLT

09116-06097

$2.54

16

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63
