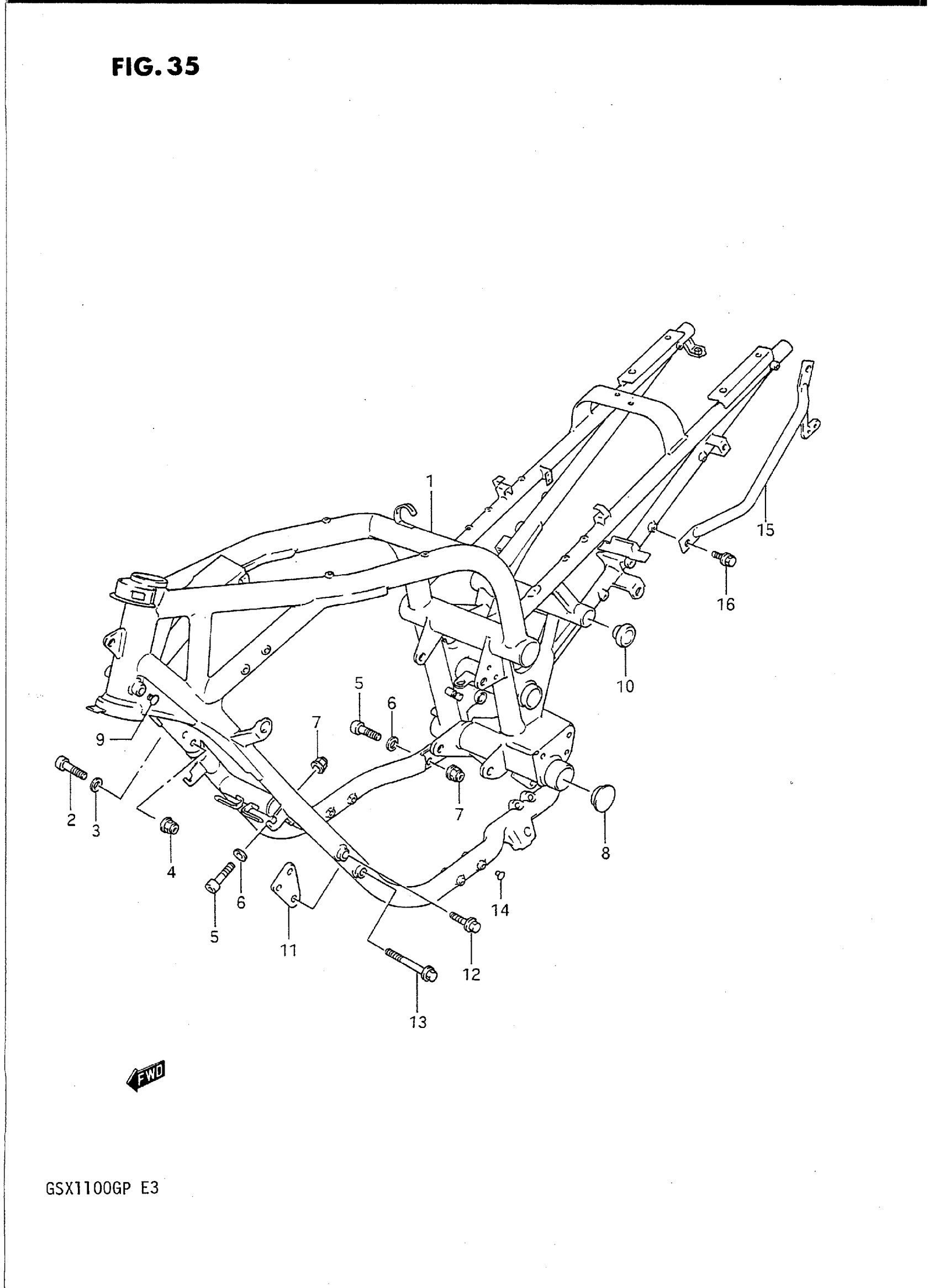

Suzuki GSX1100GP (1993) FRAME Diagram

#

Description
Price

1

FRAME SET (BLACK) | MODEL M/N This part replaces 41100-26D20-019.

41100-26D31-019

Unavailable

1

FRAME SET (BLACK) | MODEL P This part replaces 41100-26D21-019.

41100-26D31-019

Unavailable

1

FRAME SET (BLACK) | CALIFORNIA ONLY,MODEL M/N This part replaces 41100-26D30-019.

41100-26D31-019

Unavailable

1

FRAME SET (BLACK) | CALIFORNIA ONLY,MODEL P; Includes Item(s) 2 - 7

41100-26D31-019

Unavailable

2

BOLT,10X38 This part replaces 09106-10033.

09106-10033-XC0

Unavailable

3

WASHER This part replaces 09164-10005.

09164-10010

$4.83

4

NUT This part replaces 08319-31105.

08319-3110A

$2.73

5

BOLT, LOWER & BRIDGE

09106-10019

$3.50

6

WASHER This part replaces 09164-10005.

09164-10010

$4.83

7

NUT This part replaces 08319-31105.

08319-3110A

$2.73

8

CAP, TUBE

43585-26D00

Unavailable

9

CAP This part replaces 09250-09001.

09250-09008

$1.54

10

CAP, FRAME BRIDGE

09250-35003

$3.38

11

PLATE, NO.1

41911-26D00

Unavailable

12

BOLT | MODEL M This part replaces 01517-08504.

01550-0850B

$4.17

12

BOLT | MODEL N/P This part replaces 07110-08505.

07130-0850A

$4.17

13

BOLT | MODEL M This part replaces 01517-08605.

01550-0860A

$4.17

13

BOLT | MODEL N/P This part replaces 07110-08605.

07130-0860B

Unavailable

14

CAP

09250-08016

$2.53

15

GRIP, REAR RH

43970-26D10

Unavailable

15

GRIP, REAR LH

43980-26D10

Unavailable

16

BOLT M8X16 This part replaces 01517-08167.

01550-08167

$2.85
