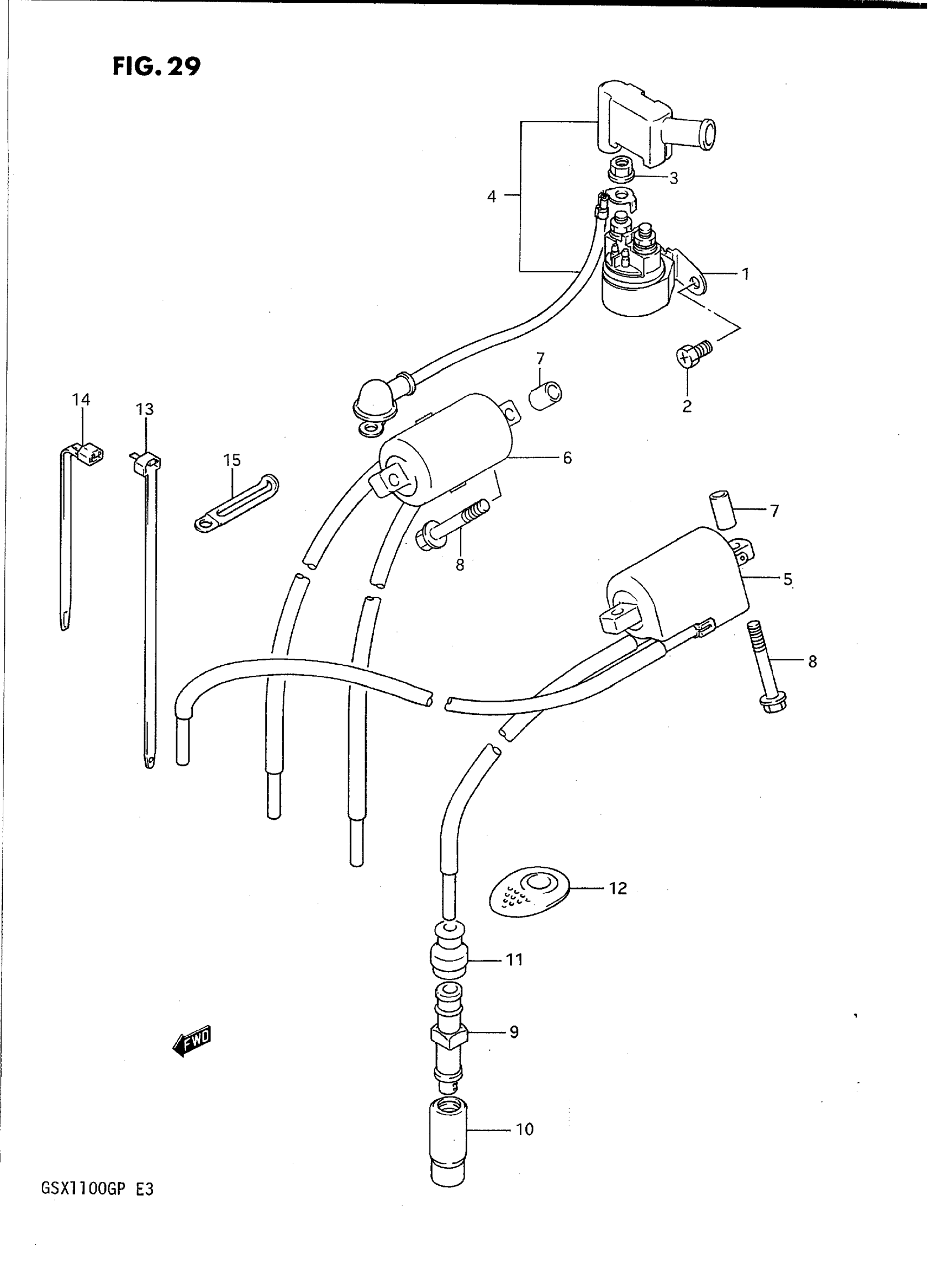

Suzuki GSX1100GP (1993) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$97.31

2

SCREW (L:8)

09128-06013

$1.49

3

NUT This part replaces 08361-35066.

08361-3506A

$1.80

4

LEAD WIRE, STARTING MOTOR This part replaces 33850-26D00.

33810-41C00

Unavailable

5

COIL, IGNITION 1-4

33410-26D00

Unavailable

6

COIL, IGNITION 2-3

33420-26D00

Unavailable

7

SPACER (6.2X12X16)

09180-06198

$4.32

8

BOLT This part replaces 01517-06456.

01550-0645A

$2.41

9

CAP, SPARK PLUG

33510-20C02

$38.58

10

SEAL, PLUG

33541-20C00

$13.43

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

12

COVER

33543-48B00

$7.25

13

CLAMP, HIGH TENSION CORD

09407-22404

Unavailable

14

CLAMP

09407-14403

$2.26

15

CLAMP

09404-06420

Unavailable
