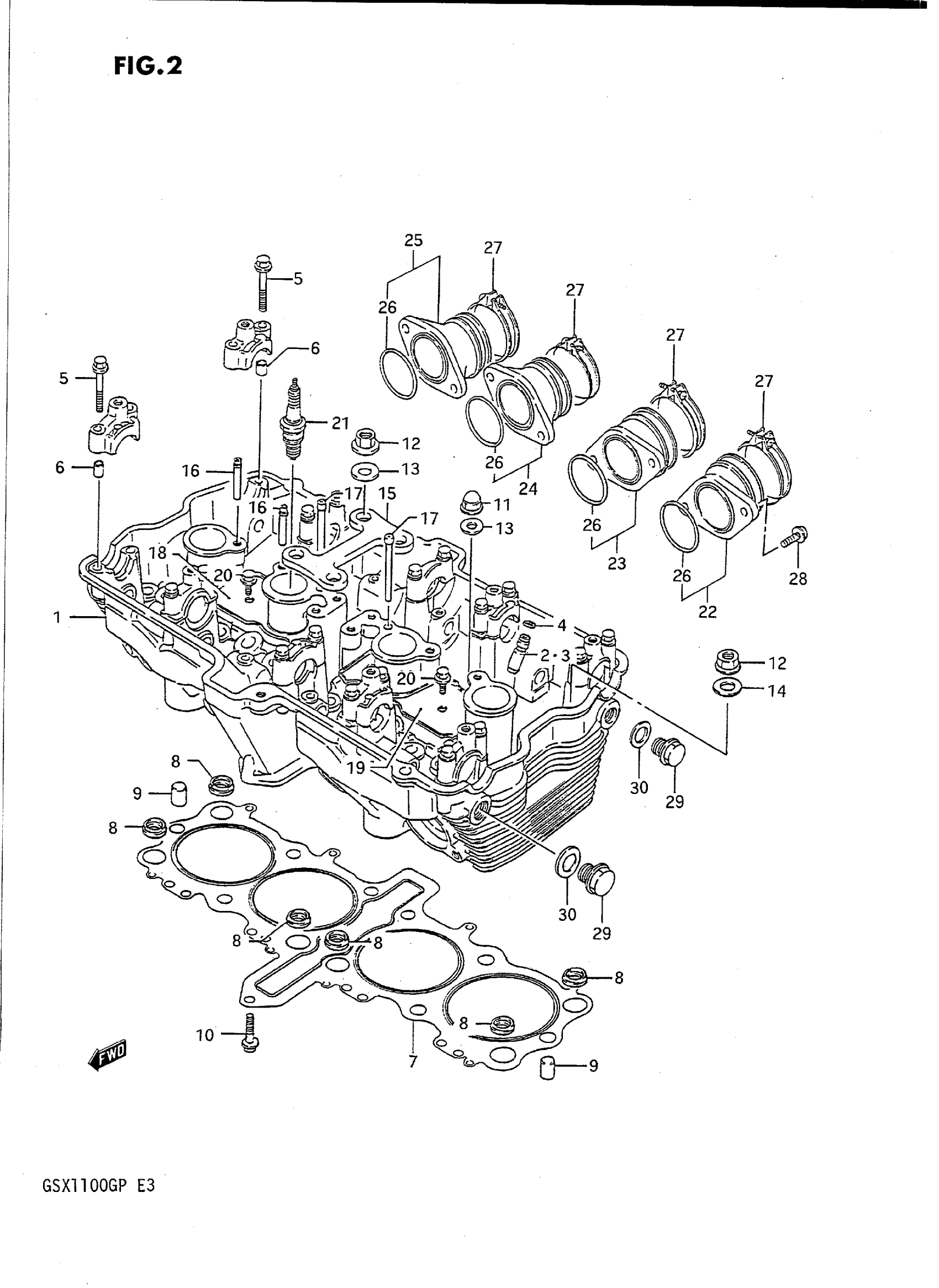

Suzuki GSX1100GP (1993) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-26D00

Unavailable

1

HEAD ASSY, CYLINDER | CALIFORNIA ONLY; Includes Item(s) 2 - 6

11100-26D10

Unavailable

2

GUIDE, VALVE, IN

11116-06B70

$40.73

3

GUIDE, VALVE, EX

11116-06B70

$40.73

4

.RING (10X85)

09381-10004

$1.50

5

BOLT (6X39)

09103-06026

$1.98

6

PIN

09206-08001

$1.78

7

GASKET,CYLINDER | MODEL M/N This part replaces 11141-48B20.

11141-48B22

Unavailable

7

GASKET,CYLINDER | MODEL P This part replaces 11141-48B21.

11141-48B22

Unavailable

8

O RING This part replaces 11143-48B01.

11143-32F00

$6.28

9

PIN

09209-11007

$19.87

10

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

11

NUT

09159-10069

$7.05

12

NUT This part replaces 08316-16106.

08316-1010B

$2.66

13

.GASKET (10.2X20X2.3)

09168-10031

$2.03

14

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

15

PLATE, HEAD REINFORCEMENT

11138-40C10

Unavailable

16

PIPE, OIL NO.1,2

11131-27A00

$6.38

17

PIPE, OIL NO.3

11133-27A00

Unavailable

18

PLATE, OIL PIPE RH

11135-27A02

Unavailable

19

PLATE, OIL PIPE LH

11136-27A02

Unavailable

20

BOLT This part replaces 01517-06128.

01550-06127

$2.30

21

SPARK PLUG (NGK,JR9B)

09482-00389

$6.70

21

SPARK PLUG (NGK,JR8B) | OPT

09482-00491

$7.57

21

SPARK PLUG (NGK,JR10B) | OPT

09482-00391

$6.35

22

PIPE,INTAKE NO. This part replaces 13101-40C00.

13101-40C01

$33.32

23

PIPE,INTAKE NO. This part replaces 13102-40C00.

13102-40C01

$33.49

24

PIPE,INTAKE NO. This part replaces 13103-40C00.

13103-40C01

$33.32

25

PIPE,INTAKE NO. | Includes Item(s) 26 This part replaces 13104-40C00.

13104-40C01

$33.32

26

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

27

CLAMP

09402-52208

$5.36

28

SCREW This part replaces 02152-06165.

02112-0616A

$1.49

29

PLUG, CYLINDER HEAD

09247-14034

Unavailable

30

GASKET

09168-14004

$1.83
