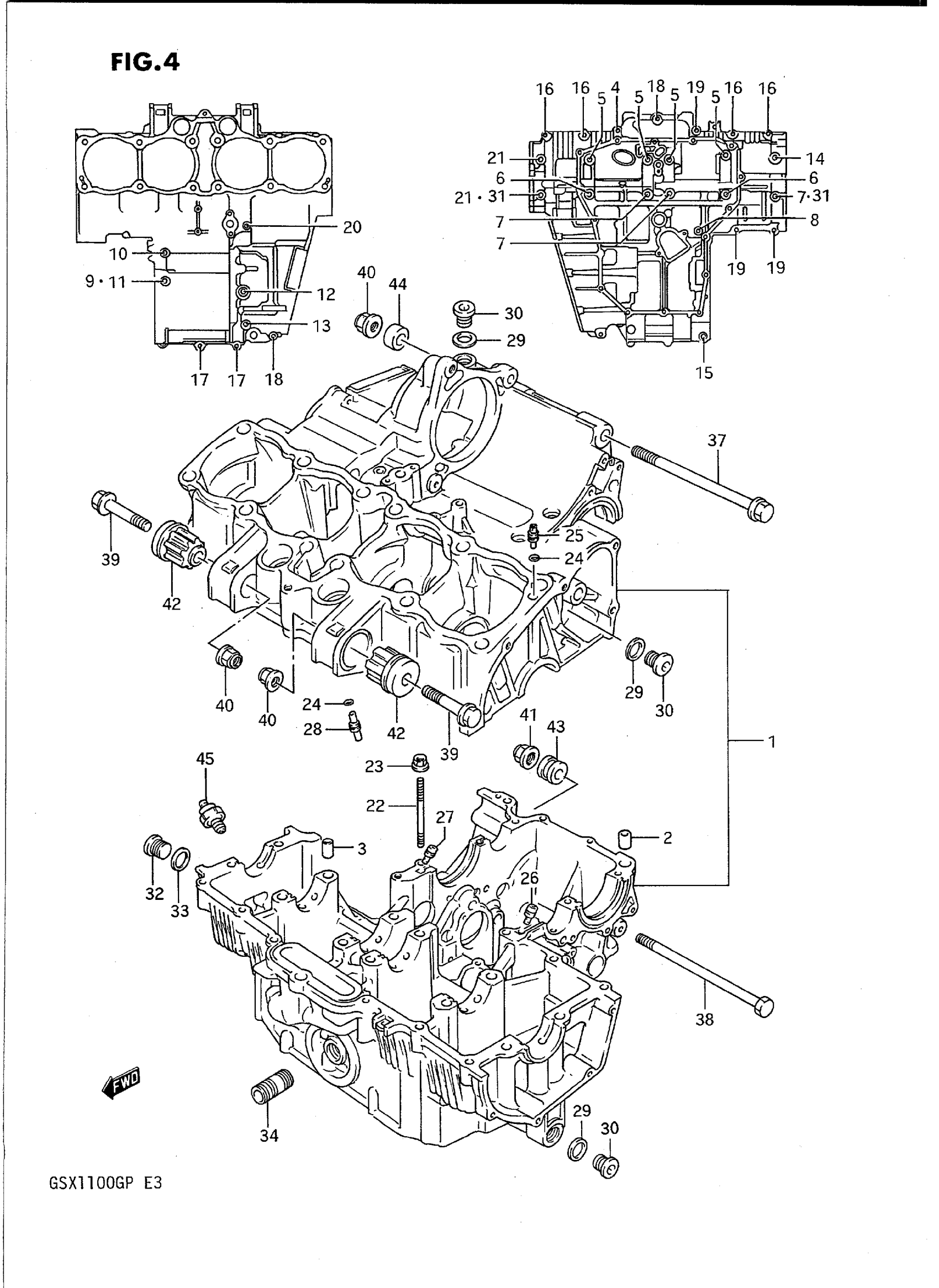

Suzuki GSX1100GP (1993) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 36

11301-26851

Unavailable

2

PIN

09206-13004

$2.40

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

4

BOLT (6X100) This part replaces 09103-06020.

09103-06060

$2.50

5

BOLT (8X135) This part replaces 09103-08209.

09103-08212

$7.47

6

BOLT (8X145)

09103-08298

Unavailable

7

BOLT (8X140) This part replaces 09103-08301.

09103-08317

Unavailable

8

BOLT (6X120)

09103-06148

$4.77

9

GASKET (8.2X14X1)

09168-08016

$1.65

10

BOLT This part replaces 07110-08508.

07130-0850A

$4.17

11

BOLT This part replaces 07110-08608.

07130-0860B

Unavailable

12

BOLT This part replaces 07110-08708.

07130-0870B

$5.37

13

NO DESCRIPTION AVAILABLE This part replaces 07110-08758.

07130-08757

Unavailable

14

BOLT (8X85)

09103-08300

Unavailable

15

BOLT This part replaces 07130-08808.

07130-0880B

Unavailable

16

BOLT This part replaces 01517-06358.

01550-06357

$2.77

17

BOLT This part replaces 01517-06408.

01550-06407

$2.69

18

BOLT This part replaces 01517-06608.

01550-06607

$4.17

19

BOLT This part replaces 01517-06557.

01550-06557

$3.30

20

BOLT This part replaces 01517-06808.

01550-06807

Unavailable

21

BOLT (8X95)

09103-08105

$3.87

22

STUD BOLT

01421-06708

Unavailable

23

NUT This part replaces 09159-06017.

08319-31067

$2.03

24

O RING

09280-04004

$1.91

25

JET, OIL HEAD

09493-14002

Unavailable

26

JET, OIL MISSION

09493-24010

$16.87

27

JET, OIL MISSION

09493-28012

$16.87

28

JET, OIL PISTON

09493-80011

Unavailable

29

GASKET, HOLE PLUG

09168-16002

$1.91

30

PLUG, HOLE

09248-16008

$5.72

31

GASKET

09168-08021

$2.61

32

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

33

GASKET

09168-14004

$1.83

34

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$7.05

35

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.8(B-10)

12228-48B00-0E0

$9.34

36

BEARING, THRUST LH (RED) | SEE ILLUSTRATION FIG.8(B-10)

12228-48B00-0C0

$11.35

36

BEARING, THRUST LH (GREEN)

12228-48B00-0E0

$9.34

36

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

$9.66

37

BOLT (10X165)

09103-10167

Unavailable

38

BOLT (12X151)

09100-12066

Unavailable

39

BOLT This part replaces 01517-10555.

01550-1055B

$4.77

40

NUT, REAR SWGARM BRACKET This part replaces 09159-10044.

09159-10115

$3.55

41

NUT This part replaces 08319-31125.

08319-3112B

$5.00

42

BUSH, ENGINE MOUNTING

11681-27A00

Unavailable

43

SPACER | MODEL M/N This part replaces 11611-19B10.

11611-19B13

$10.20

43

SPACER | MODEL P This part replaces 11611-19B11.

11611-19B13

$10.20

44

SPACER (L:10)

11611-36A50

Unavailable

45

SWITCH ASSY,OIL PRESSURE | MODEL M/N This part replaces 37820-33200.

37820-33D11

$25.13

45

SWITCH ASSY,OIL PRESSURE | MODEL P This part replaces 37820-33D00.

37820-33D11

$25.13
