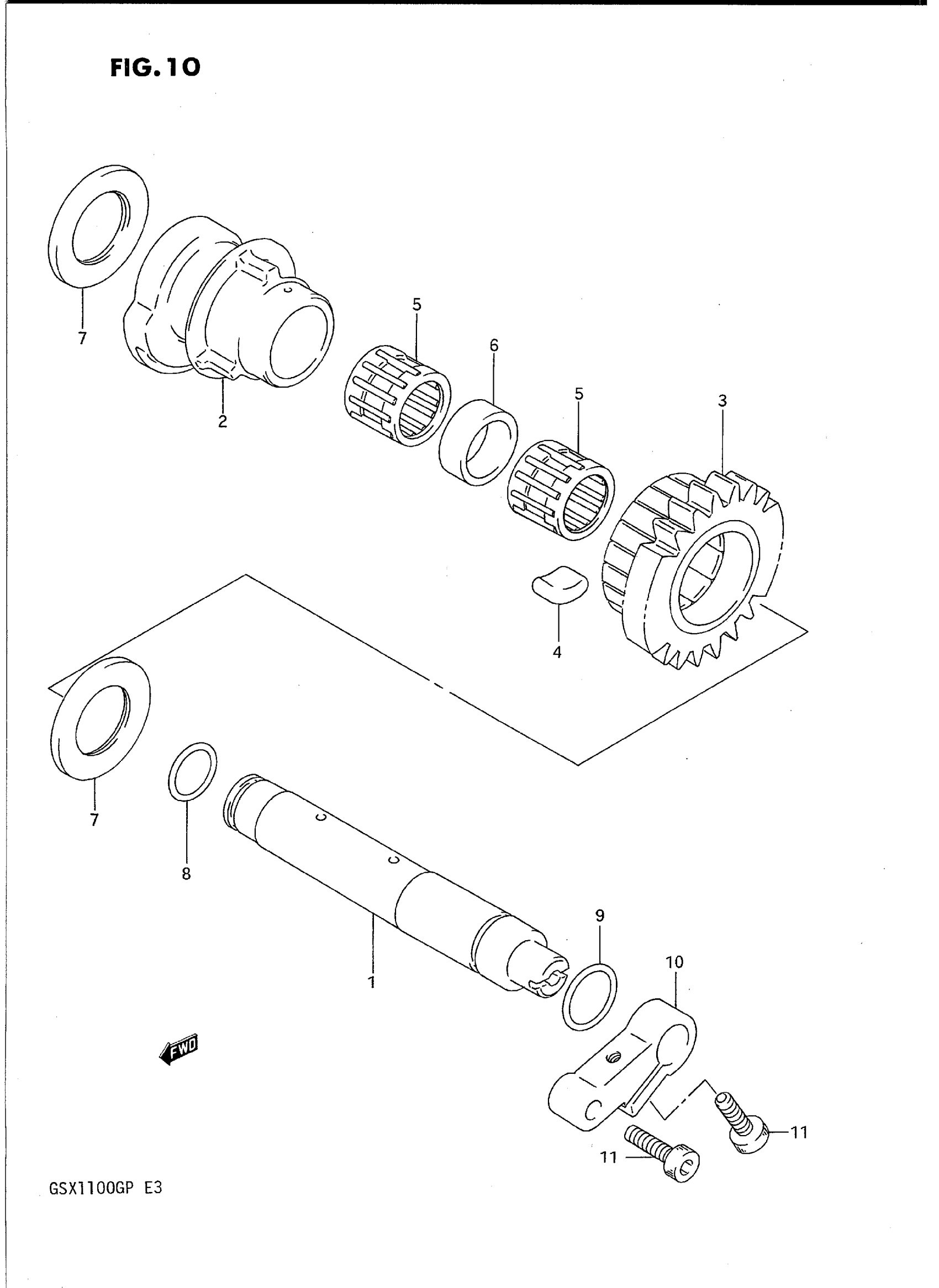

Suzuki GSX1100GP (1993) CRANK BALANCER Diagram

#

Description
Price

1

SHAFT, CRANK BALANCER | MODEL M/N This part replaces 12650-26D00-0F0.

12650-26D01-0F0

Unavailable

1

SHAFT, CRANK BALANCER | MODEL P

12650-26D01-0F0

Unavailable

2

BALANCER, CRANK

12654-26D00-0F0

Unavailable

3

GEAR, CRANK BALANCER

12666-26D00

Unavailable

4

DAMPER, BALANCER GEAR

12686-26D00

Unavailable

5

BEARING

09263-19014

Unavailable

6

SPACER

09180-19010

Unavailable

7

WASHER

09169-22006

Unavailable

8

O RING, RH (D:1.9,ID:14.5)

09280-15006

$2.90

9

O RING, LH (D:1.9,ID:16.6)

09280-17004

$3.67

10

ARM,BALANCER SHAFT This part replaces 12681-26D00.

12681-26D02

$73.42

11

BOLT, FRONT BRG HOUSING This part replaces 07110-06205.

07130-0620B

$3.05
