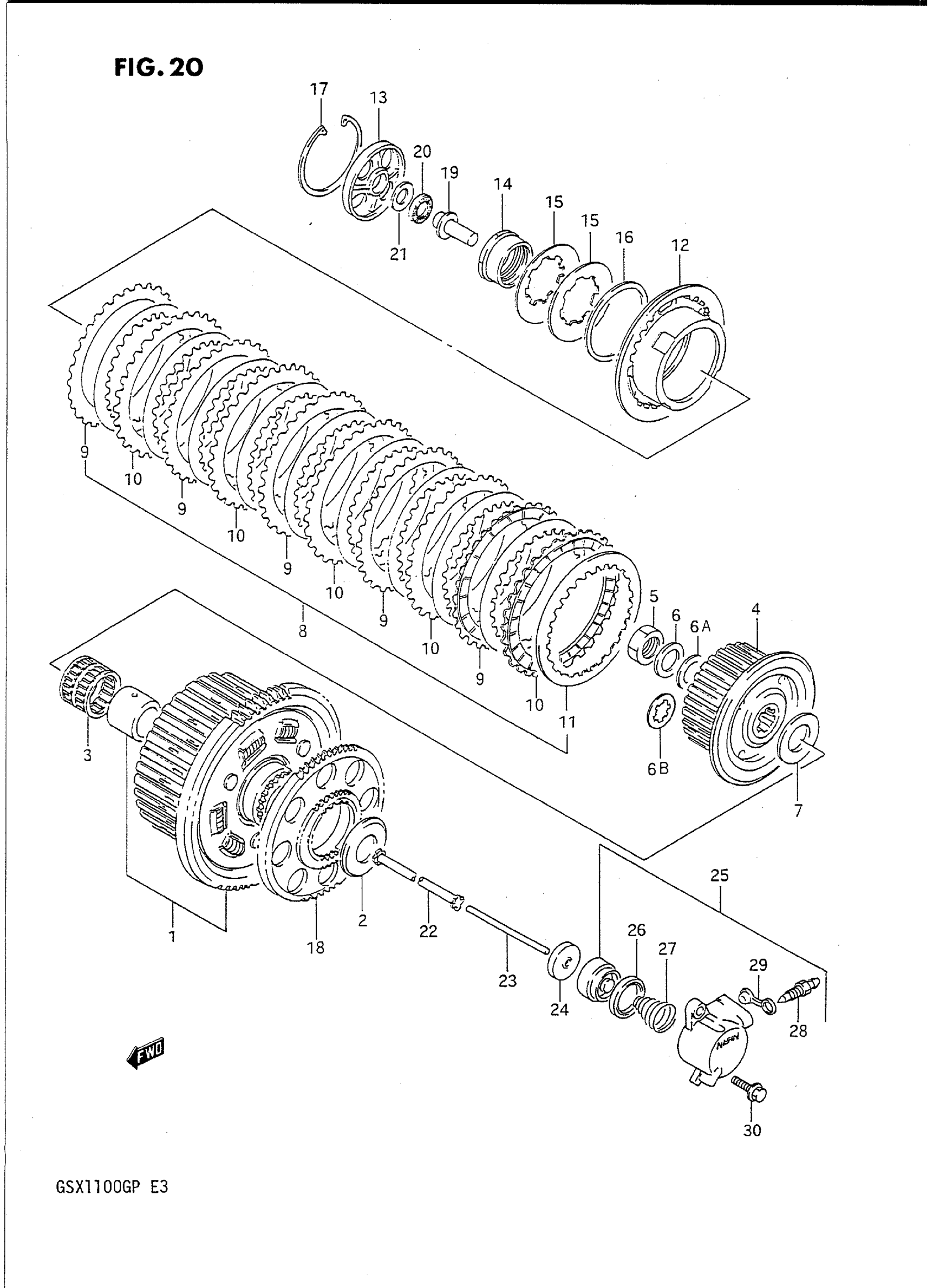

Suzuki GSX1100GP (1993) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:74)

21200-26820

Unavailable

2

WASHER

09160-25067

Unavailable

3

BEARING

09263-35017

$40.54

4

HUB, SLEEVE

21410-40C01

Unavailable

5

NUT

09140-24014

Unavailable

6

WASHER | MODEL M

09164-24006

$3.76

6A

SHIM (T:0.50) | MODEL N,~F.NO.2100525 This part replaces 08221-25365.

09181-25186

$3.93

6B

WASHER | MODEL N/P,F.NO.2100526~

09167-25024

Unavailable

7

.WASHER (25X50X2.5)

09160-25056

$11.61

8

PLATE ASSY, CLUTCH | Includes Item(s) 9 - 11

21400-26D00

Unavailable

9

PLATE, DRIVE (T:2.6)

21441-06B01

$26.35

10

PLATE, DRIVE (T:2.6)

21441-48B00

$20.65

11

PLATE, DRIVEN (T:2)

21451-48B00

$11.44

12

DISC, PRESSURE

21462-40C02

Unavailable

13

LIFTER, CLUTCH PRESSURE DISK

21463-40C01

Unavailable

14

HOLDER, CLUTCH SPRING

21611-40C01

Unavailable

15

SPRING

09164-47001

$9.35

16

SEAT, CLUTCH SPRING

21623-40C00

Unavailable

17

CIRCLIP, CLUTCH PRESSURE This part replaces 09381-84002.

09381-84003

$12.22

18

GEAR, ALTERNATOR DRIVE (NT:37/69) | MODEL M/N This part replaces 22721-26D00.

22721-26D01

Unavailable

18

GEAR, ALTERNATOR DRIVE | MODEL P

22721-26D01

Unavailable

19

PIECE, PUSH This part replaces 23121-07A00.

23121-31E00

$23.92

20

BEARING

09263-15003

$8.29

21

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

22

ROD, PUSH RH

23110-38B00

$23.19

23

ROD, PUSH LH (L:132.5)

23111-26D00

$15.88

24

OIL SEAL

09285-06015

$7.98

25

CYLINDER COMP,C | Includes Item(s) 26 - 29 This part replaces 23160-26D00.

23160-26D01

Unavailable

26

CUP

23163-06B00

$7.22

27

SPRING

23164-05A00

$4.34

28

BLEEDER

59121-01A00

$8.73

29

CAP, BLEEDER

59122-01A00

$4.34

30

BOLT This part replaces 01517-08258.

01550-08257

$2.81
