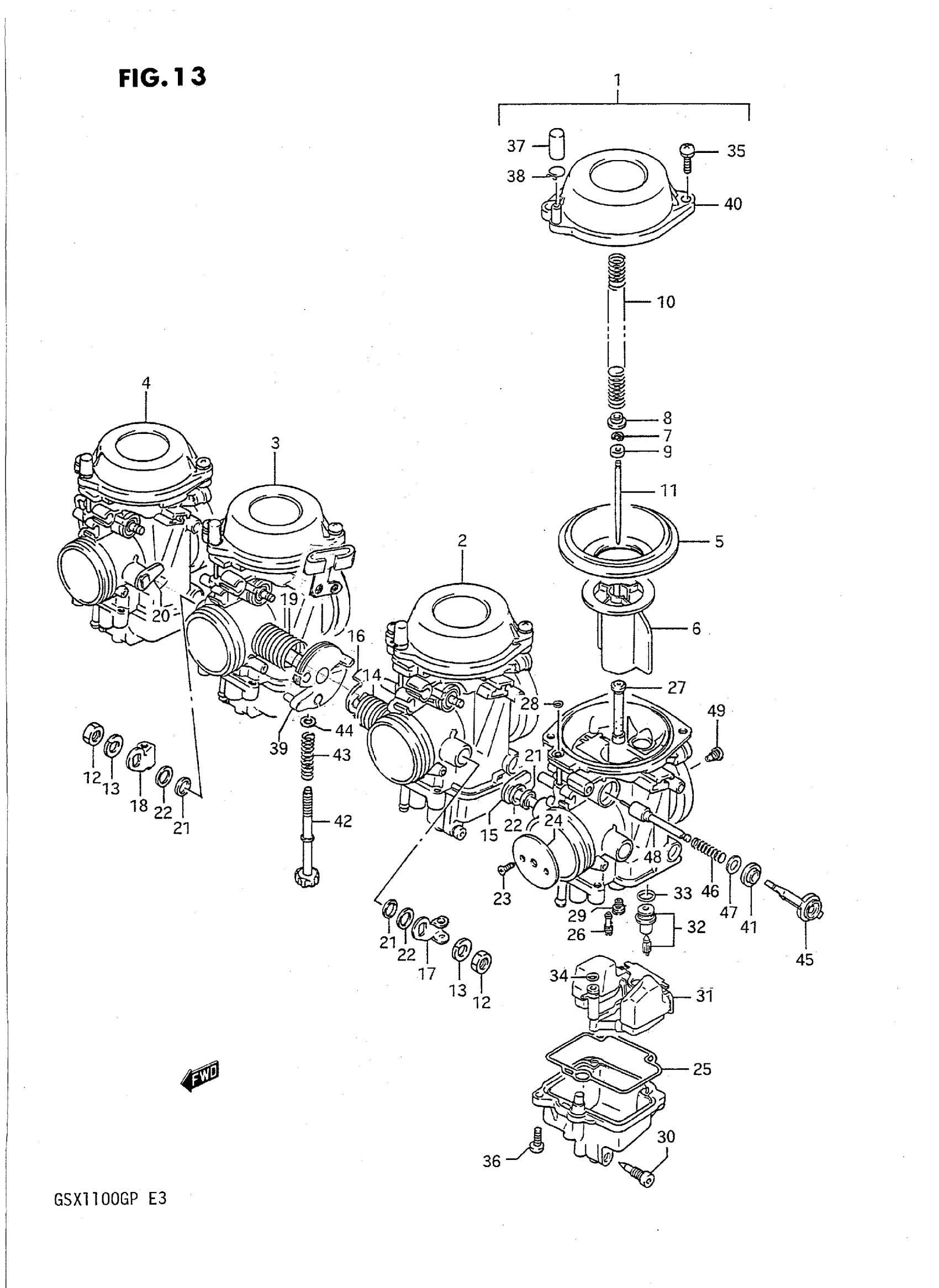

Suzuki GSX1100GP (1993) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH

13201-26D10

Unavailable

1

CARBURETOR ASSY, LH | CALIFORNIA ONLY

13201-26D20

Unavailable

2

CARBURETOR ASSY, ML

13202-26D10

Unavailable

2

CARBURETOR ASSY, ML | CALIFORNIA ONLY

13202-26D20

Unavailable

3

CARBURETOR ASSY, MR

13203-26D10

Unavailable

3

CARBURETOR ASSY, MR | CALIFORNIA ONLY

13203-26D20

Unavailable

4

CARBURETOR ASSY, RH

13204-26D10

Unavailable

4

CARBURETOR ASSY, RH | CALIFORNIA ONLY; Includes Item(s) 5 - 49

13204-26D20

Unavailable

5

.DIAPHRAGM This part replaces 13507-17C00.

13507-17C02

$29.60

6

VALVE, PISTON

13501-17C00

Unavailable

7

E RING

13394-01D00

$4.64

8

RING

13382-42A00

$4.48

9

RING

13387-47010

$7.22

10

SPRING

13417-42A00

$6.79

11

NEEDLE, JET (5D54-1)

13383-26D10

Unavailable

11

NEEDLE, JET (5D56-1) | CALIFORINA ONLY

13383-26D20

Unavailable

12

NUT | ML,MR This part replaces 08310-22086.

08310-0008A

$1.84

13

LOCK WASHER | ML,MR This part replaces 08321-31086.

08321-0108A

$1.84

14

SPRING | ML

13573-26D10

Unavailable

15

SHAFT ASSY | LH

13550-17C00

Unavailable

16

SHAFT ASSY | ML

13550-26D00

Unavailable

17

LEVER | ML

13553-17C00

Unavailable

18

LEVER | MR

13553-44B00

Unavailable

19

SPRING | MR

13573-26D00

Unavailable

20

SHAFT ASSY | RH

13550-17C30

Unavailable

21

SEAL | LH,RH:1,ML:MR:2

13556-44B00

$4.43

22

WASHER

13557-47070

$3.59

23

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.92

24

VALVE, THROTTLE (125)

13551-17C00

Unavailable

25

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

26

JET, PILOT (30)

09492-30010

$18.42

27

JET, NEEDLE (O-6)

09494-00727

Unavailable

28

O RING

13509-17C00

$4.34

29

JET, MAIN (120)

09491-24016

$11.38

30

SCREW, DRAIN This part replaces 13247-38B00.

13247-02340

$4.99

31

FLOAT ASSY

13240-01D00

Unavailable

31

FLOAT ASSY | CALIFORNIA ONLY

13240-07D00

Unavailable

32

VALVE ASSY,NEED This part replaces 13370-44B00.

13370-02D01

$55.60

33

.O RING

13374-46710

$4.48

34

O RING This part replaces 13374-44080.

13374-35C00

$5.99

35

SCREW This part replaces 13602-34390.

02112-7516A

$2.41

36

SCREW This part replaces 13602-05128.

02112-05127

$1.97

37

CAP | CALIFORNIA ONLYLH,MR,RH

13508-17C00

$4.74

38

CLIP | CALIFORNIA ONLYLH,MR,RH This part replaces 13671-33600.

13671-05A40

$3.71

39

SHAFT ASSY | MR

13550-26D10

Unavailable

40

COVER, DAPHRAM This part replaces 13502-45B00.

13502-44B00

Unavailable

41

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$4.19

42

ADJUSTER | MR This part replaces 13267-28A00.

13267-14D10

$24.60

43

SPRING | MR This part replaces 13268-43410.

13375-14D10

$7.05

44

WASHER | MR

13427-38300

$1.92

45

HOLDER

13418-17C10

$13.90

46

SPRING

13417-26D00

$6.08

47

WASHER

13432-47090

$2.28

48

PLUNGER ASSY

13411-05320

$26.80

49

JET, AIR (1.2)

09493-24007

$16.15

49

JET, AIR (1.0) | CALIFORNIA ONLY

09493-20007

$14.20
