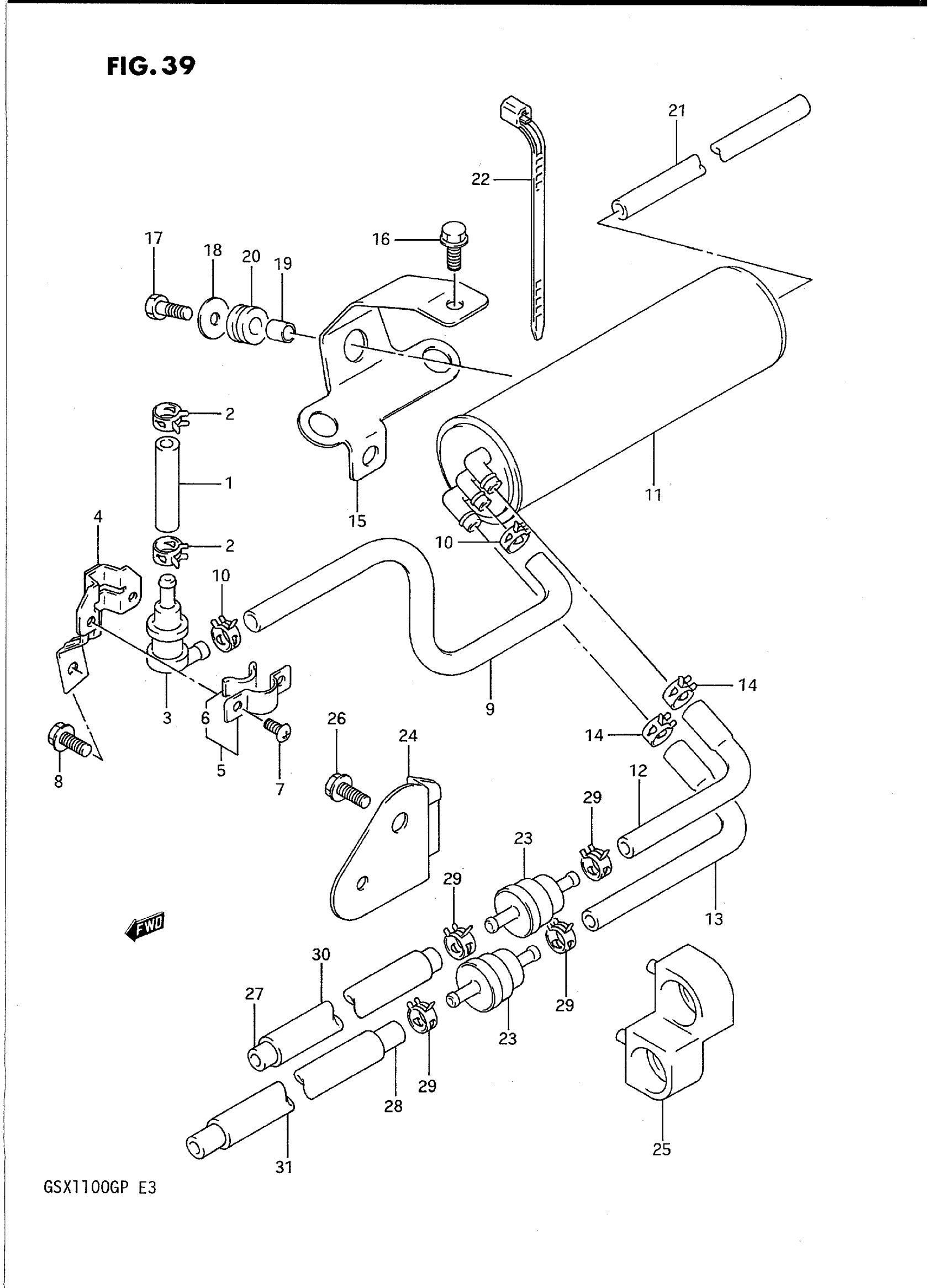

Suzuki GSX1100GP (1993) CANISTER (FOR CALIFORNIA) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE | L:300->48 This part replaces 09358-54116-300.

09355-54115-600

$14.59

2

CLIP (ID:10.5,H:8)

09401-10409

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

BRACKET, VALVE

44890-26D00

Unavailable

5

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 6

44892-24A00

$4.52

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

SCREW This part replaces 02142-04105.

02142-0410A

$1.49

8

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

9

HOSE, TANK & BREATHER VALVE | L:300->230 This part replaces 09358-54116-300.

09355-54115-600

$14.59

10

CLIP (ID:10.5,H:8)

09401-10409

$2.26

11

CANISTER

17210-26D00

Unavailable

12

HOSE, PCV & CANISTER NO.1

44411-26D00

Unavailable

13

HOSE, PCV & CANISTER NO.2

44412-26D00

Unavailable

14

CLIP This part replaces 09401-12406.

09401-11415

$2.23

15

BRACKET, CANISTER FITTING

44881-26D00

Unavailable

16

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

17

BOLT, CANISTER | MODEL M/N This part replaces 01107-06167.

01500-06167

$1.97

17

BOLT (6X16) | MODEL P This part replaces 09116-06007.

09116-06168

$2.50

18

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

19

SPACER This part replaces 09180-06152.

09180-06262

$2.55

20

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

21

HOSE(7X10.2X600 This part replaces 09352-70103-300.

09352-70104-600

$5.63

22

CLAMP

09407-14403

$2.26

23

VALVE, CANISTER PURGE

44250-48B00

Unavailable

24

BRACKET

44883-26D00

Unavailable

25

CUSHION, VALVE SETTING

44882-17C00

Unavailable

26

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

27

HOSE, TANK & BREATHER VALVE | L:600->350 This part replaces 09354-54115-600.

09355-54115-600

$14.59

28

HOSE, TANK & BREATHER VALVE | L:600->390 This part replaces 09354-54115-600.

09355-54115-600

$14.59

29

CLIP (ID:10.5,H:8)

09401-10409

$2.26

30

PROTECTOR, RH | MODEL M This part replaces 44461-26D00.

44461-26D01

Unavailable

30

PROTECTOR, RH | MODEL N/P

44461-26D01

Unavailable

31

PROTECTOR | MODEL M This part replaces 44462-26D00.

44462-26D01

Unavailable

31

PROTECTOR, LH | MODEL N/P

44462-26D01

Unavailable
