Description

Price

1

CHAIN, CAM SHAFT DRIVE

12760-26D00

$184.27

2

GUIDE,CAM CHAIN This part replaces 12771-26D00.

12771-26D01

$65.32

3

GUIDE,CAM CHAIN This part replaces 12782-05A01.

12782-05A02

$44.05

4

SCREW This part replaces 02112-06106.

02112-0610B

$1.84

5

TENSIONER,CAM C This part replaces 12810-26D00.

12810-26D01

$75.57

6

CUSHION

12814-34200

$5.58

7

GUIDE, CAM CHAIN NO.3

12791-27A00

$14.20

8

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

9

WASHER

09168-06023

$2.35

10

ADJUSTER ASSY, TENSIONER | Includes Item(s) 11 - 13 This part replaces 12830-26D10.

12830-46E00

Unavailable

11

PLUG

12834-27A00

Unavailable

12

GASKET

12832-27A00

$6.91

13

SPRING

12833-26D10

$6.88

14

GASKET, ADJUSTER (NA)

12837-27A10

$3.85

15

BOLT This part replaces 07110-06255.

07130-0625B

$3.04

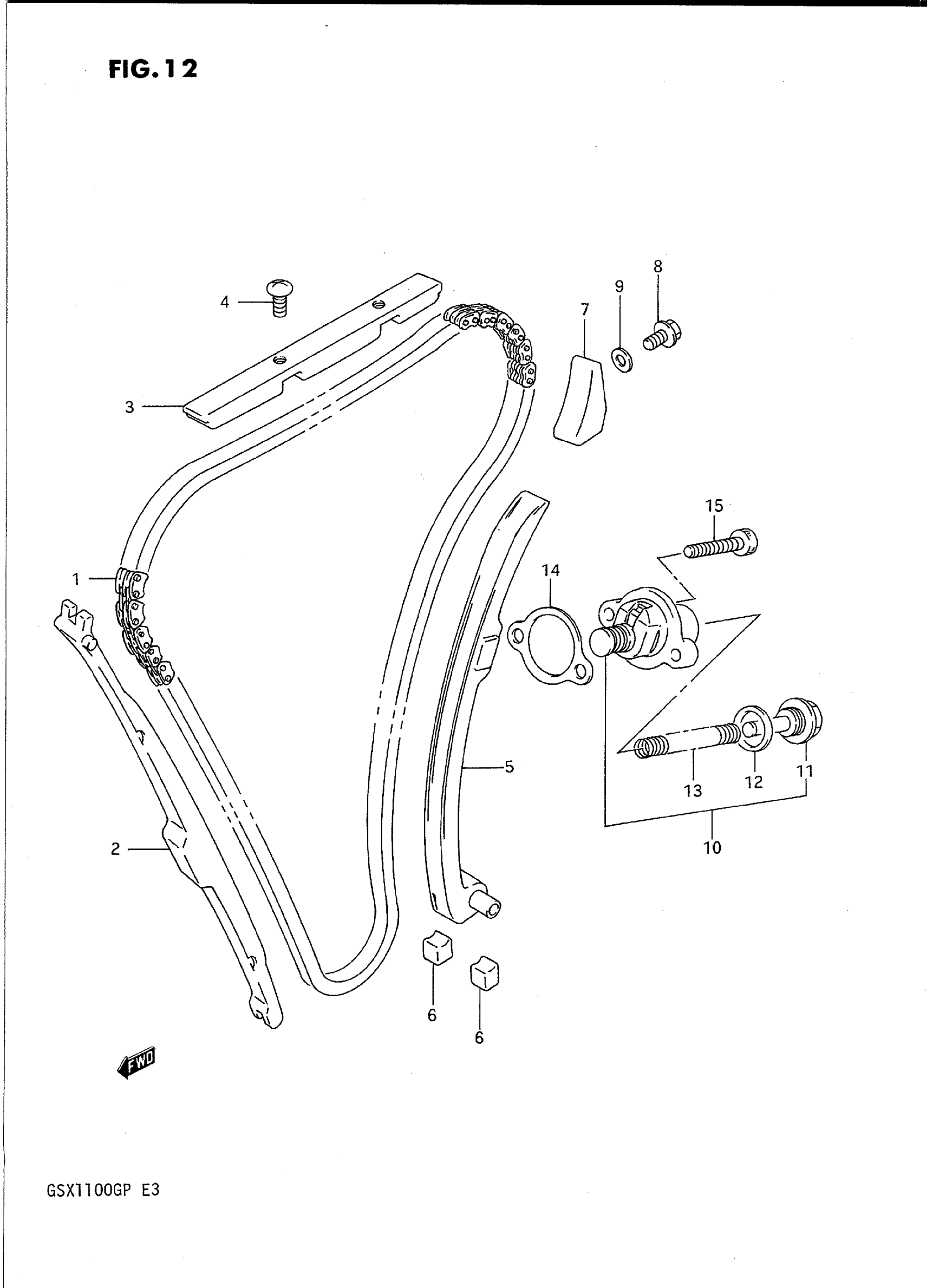

Suzuki GSX1100GP (1993) CAM CHAIN Diagram
