Description

Price

1

BATTERY ASSY | MODEL M This part replaces 33610-31D30.

33610-38F02

$125.32

1

BATTERY ASSY | MODEL N/P This part replaces 33610-26D30.

33610-38F02

$125.32

2

BAND, BATTERY

09462-00067

$5.11

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

4

CUSHION | CUT AS REQUIRED PROFILE(50X115)

33651-37000

$4.48

5

LEAD WIRE, BATTERY (-)

33860-26D00

Unavailable

6

HOLDER, BATTERY

41540-26D00

Unavailable

7

BOLT This part replaces 01517-06307.

01550-06307

$2.69

8

SPACER This part replaces 41570-19C00.

09169-06065

$4.32

9

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

10

MOLDING, FRONT | CALIFORNIA ONLY This part replaces 13623-48B00.

68241-04X50-300

$7.32

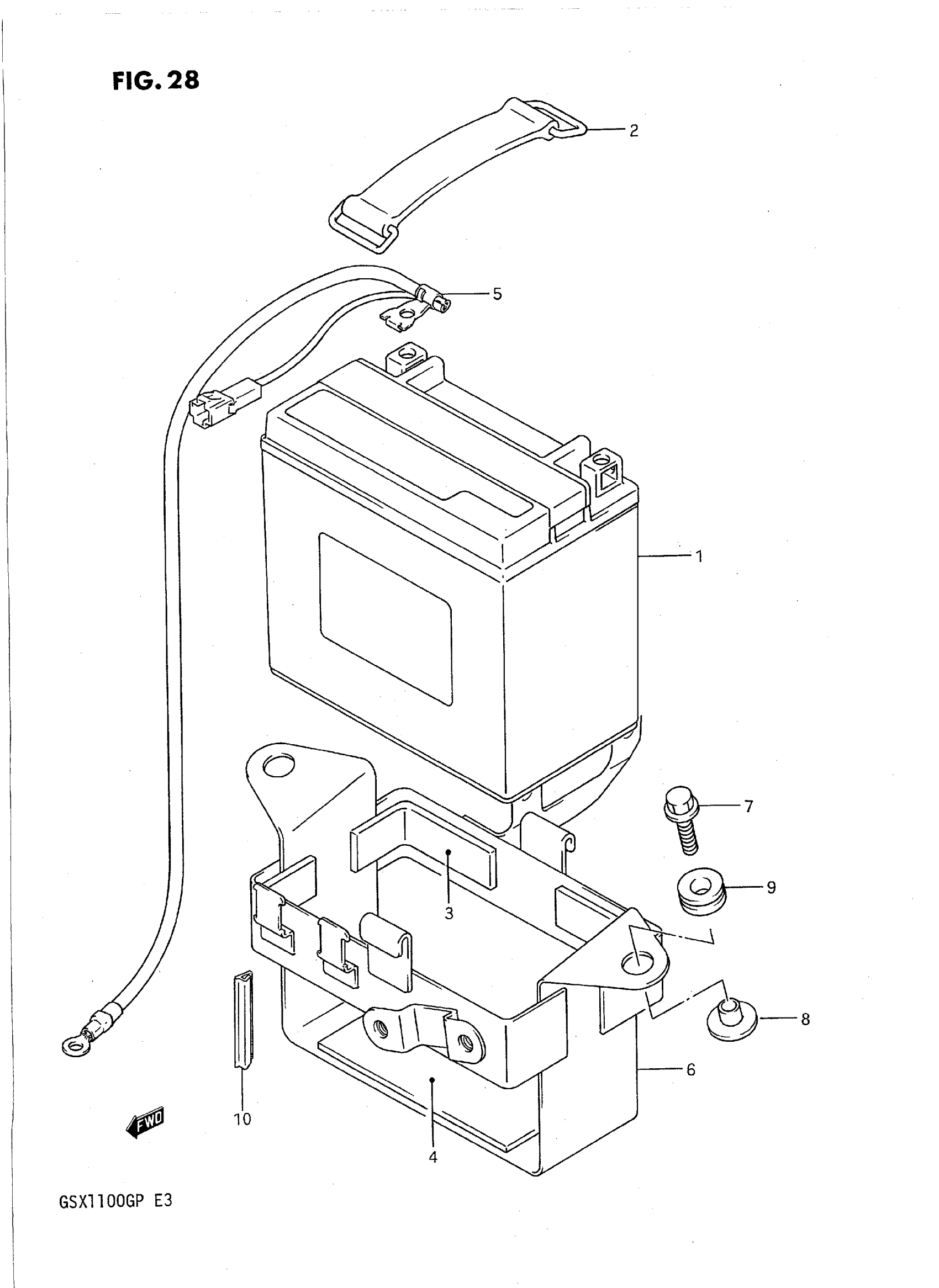

Suzuki GSX1100GP (1993) BATTERY Diagram
