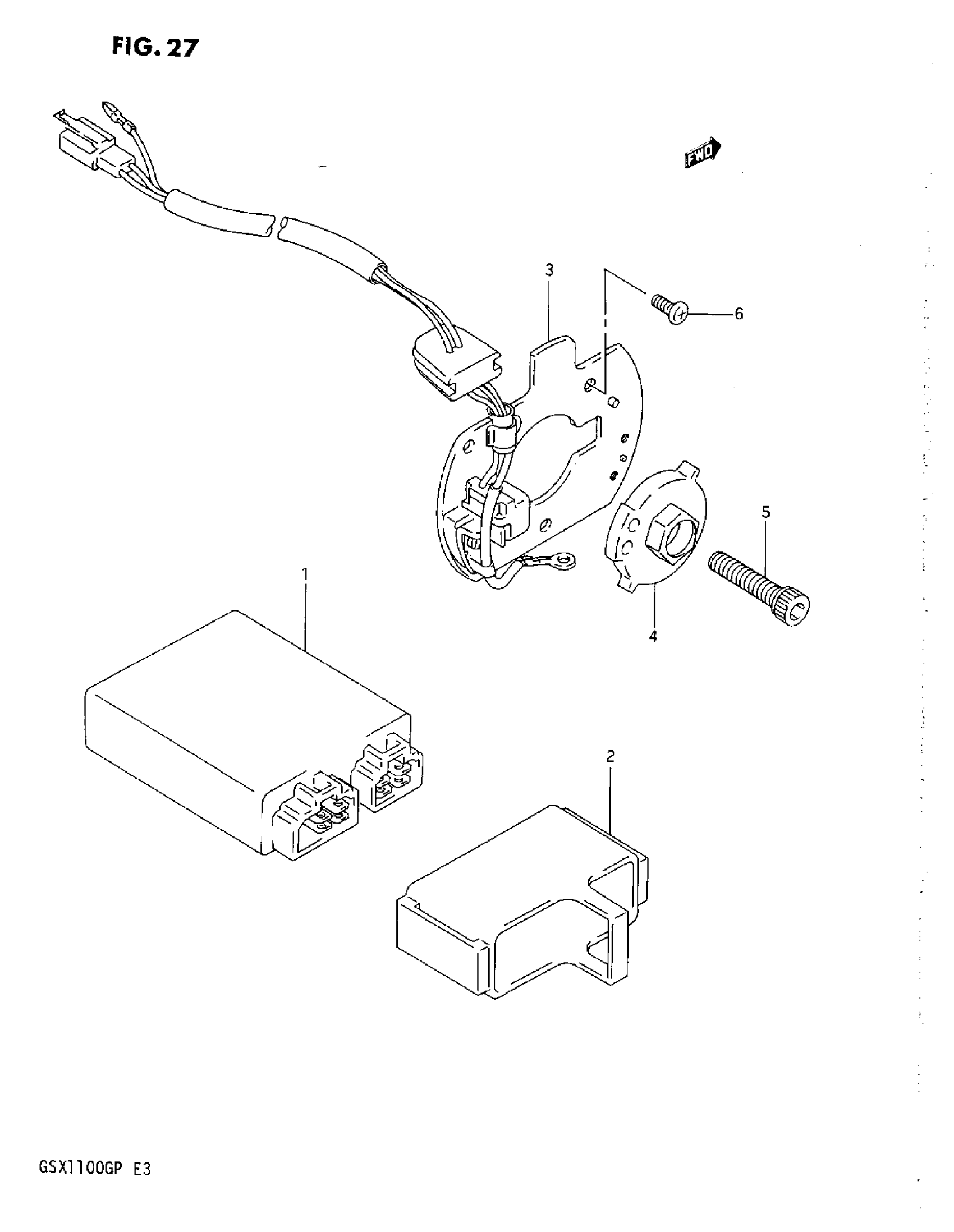

Suzuki GSX1100G (1993) SIGNAL GENERATOR Diagram

#

Description

Price

1

IGNITER UNIT

32900-26D00

Unavailable

1

IGNITER UNIT | CALIFORNIA ONLY

32900-26D10

Unavailable

2

CUSHION, IGNITER This part replaces 32980-40C00.

32980-40C01

$15.83

3

STATOR, SIGNAL GENERATOR This part replaces 33110-19C00.

33110-17C00

$292.98

4

ROTOR, SIGNAL GENERATOR This part replaces 33120-19C00.

33120-19C20

$198.45

4

ROTOR, SIGNAL GENERATOR | CALIFORNIA ONLY This part replaces 33120-26D00.

33120-19C20

$198.45

5

BOLT, STEERING DAMPER This part replaces 07110-08306.

07130-0830A

$1.74

6

SCREW

02112-05107

$1.49
