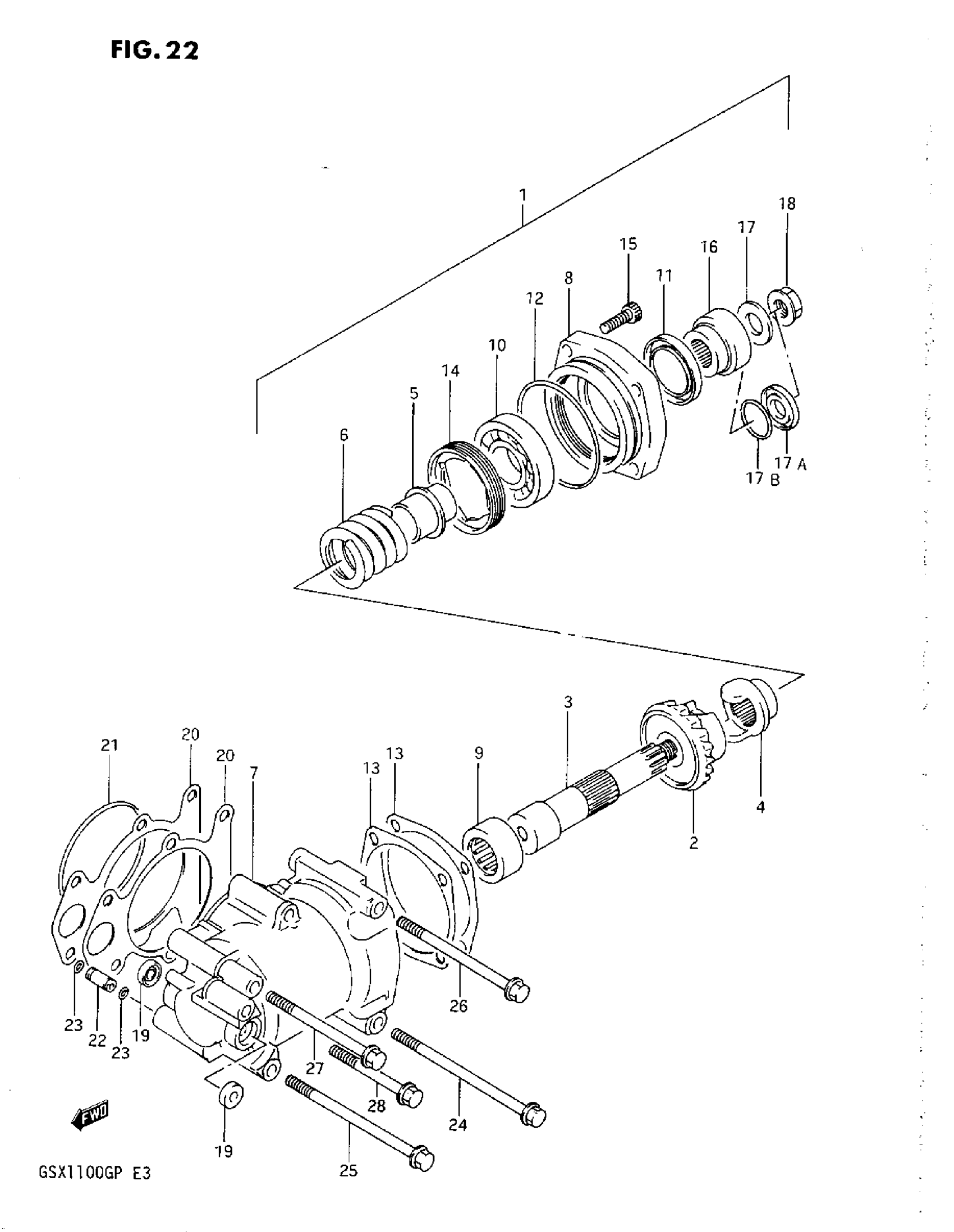

Suzuki GSX1100G (1993) SECONDARY DRIVE GEAR (M) Diagram

#

Description
Price

1

GEAR & CASE SET, SECONDARY | ->24900-26821 This part replaces 24900-26820.

24900-26822

Unavailable

2

GEAR, SECONDARY DRIVEN | NT:19

24920-26D00

Unavailable

3

SHAFT, SECONDARY DRIVEN This part replaces 24961-26D01.

24961-26D10

Unavailable

4

DOG, OUTPUT CAM

24923-26D00

Unavailable

5

STOPPER, SPRING

24924-26D00

Unavailable

6

SPRING

09440-49003

Unavailable

7

CASE

24930-26D01

Unavailable

8

HOUSING, BEARING

24941-26D00

Unavailable

9

BEARING, FR

09263-32012

$112.65

10

BEARING, RR

09262-28014

$57.95

11

OIL SEAL (38X54X6)

09283-38011

$17.92

12

O-RING (D:3.7, ID:76-5)

09280-78003

$7.55

13

SHIM (T:0.30) | 0-2, U.N.

24945-26D00-030

Unavailable

13

SHIM (T:0.35) | 0-2, U.N.

24945-26D00-035

Unavailable

13

SHIM (T:0.40) | 0-2, U.N.

24945-26D00-040

Unavailable

13

SHIM (T:0.50) | 0-2, U.N.

24945-26D00-050

Unavailable

13

SHIM (T:0.60) | 0-2, U.N.

24945-26D00-060

Unavailable

14

STOPPER, BEARING

24942-26D00

$72.00

15

BOLT This part replaces 07110-08256.

07130-0825B

$3.37

16

COUPLING, SECONDARY DRIVEN

24943-26D00

Unavailable

17

WASHER (16.5X36X4) | FOR 24900-26820

09160-16039

Unavailable

17

WASHER | FOR 24900-26821

24962-26D00

Unavailable

17

O-RING (D:2.4, ID:26.2) | FOR 24900-26821

09280-26005

$2.30

18

NUT

09159-14021

Unavailable

19

SEAL, PUSH ROD

09283-06005

$11.28

20

SHIM (T:0.40) | 0-1, U.N.

24935-26D00-040

Unavailable

20

SHIM (T:0.45) | 0-1, U.N.

24935-26D00-045

Unavailable

20

SHIM (T:0.50) | 0-1, U.N.

24935-26D00-050

Unavailable

20

SHIM (T:0.55) | 0-1, U.N.

24935-26D00-055

Unavailable

20

SHIM (T:0.60) | 0-1, U.N.

24935-26D00-060

Unavailable

20

SHIM (T:0.65) | 0-1, U.N.

24935-26D00-065

Unavailable

20

SHIM (T:0.70) | 0-1, U.N.

24935-26D00-070

Unavailable

20

SHIM (T:0.75) | 0-1, U.N.

24935-26D00-075

Unavailable

20

SHIM (T:0.80) | 0-1, U.N.

24935-26D00-080

Unavailable

20

SHIM (T:0.80)

24935-26D00-080

Unavailable

21

O-RING

09280-88002

Unavailable

22

OIL PIPE, SECONDARY GEAR CASE

24940-26D00

Unavailable

23

O-RING (D:1.7, ID:6)

09280-06008

$2.03

24

BOLT (8X125)

09103-08306

Unavailable

25

BOLT (8X12O)

09103-08109

$3.18

26

BOLT (8X105)

09103-08165

Unavailable

27

BOLT This part replaces 01517-08958.

01550-08957

$5.37

28

BOLT This part replaces 01517-08708.

01550-08707

$3.91
